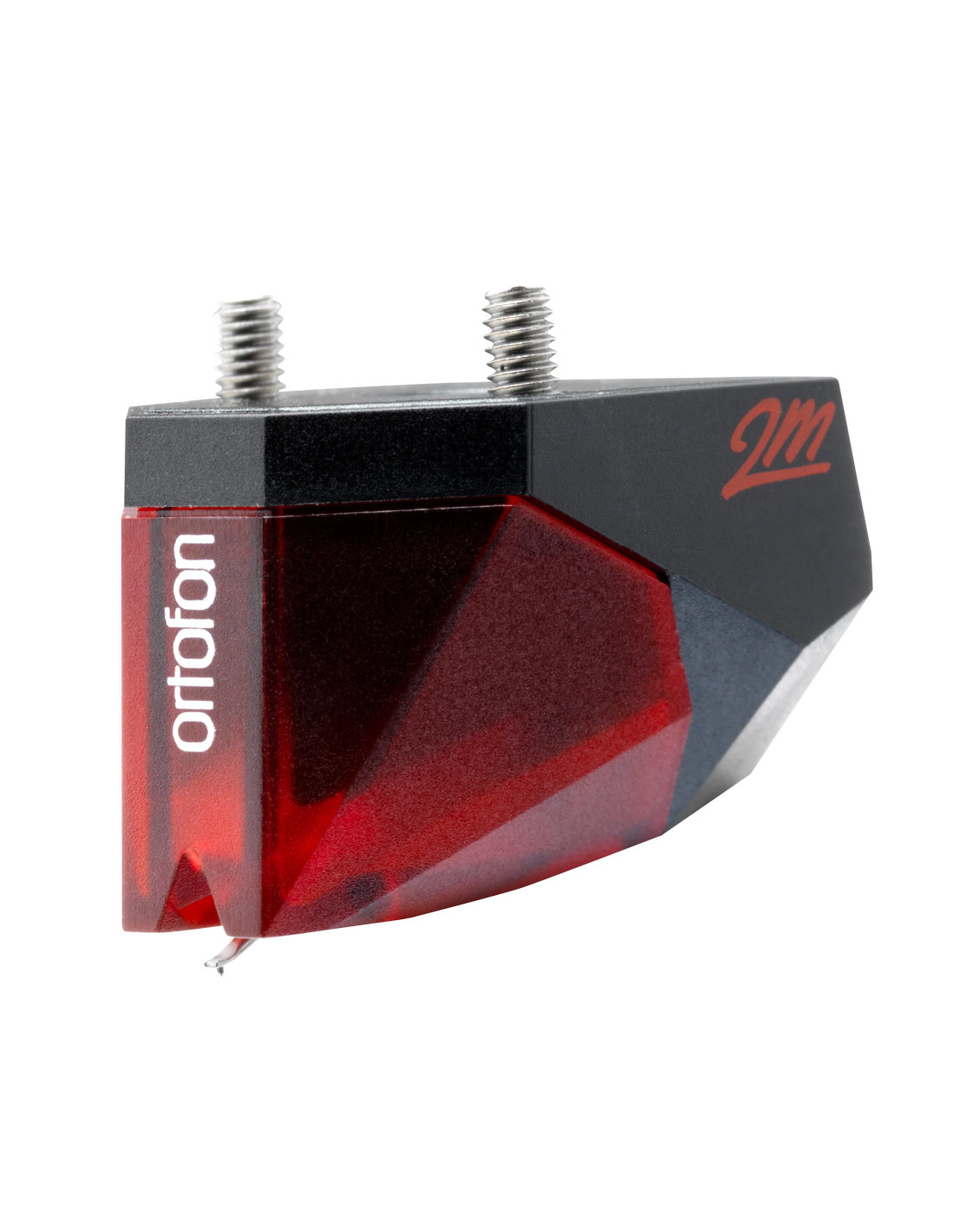

Ortofon 2M Red Verso
Ortofon 2M Red Verso

Ortofon 2M Red Verso

Ortofon
kr1,498.00
Tax included

The 2M Red Verso model is an alternative product for bottom mount headshells. With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.



Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel separation at 1 kHz
    22 dB
  • Frequency response 20 Hz - 20 kHz
    3 / - 1 dB
  • Tracking ability at 315 Hz
    70 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.3 kOhm
  • Cartridge colour
    Black/Red
  • Cartridge weight
    16.7 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    700 mH
  • Recommended load capacitance
    150-300 pF
