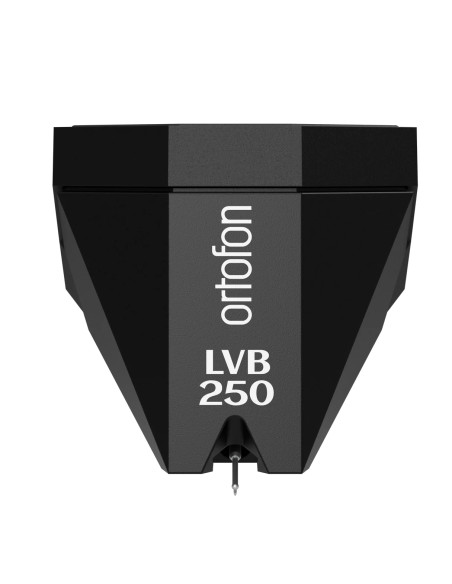

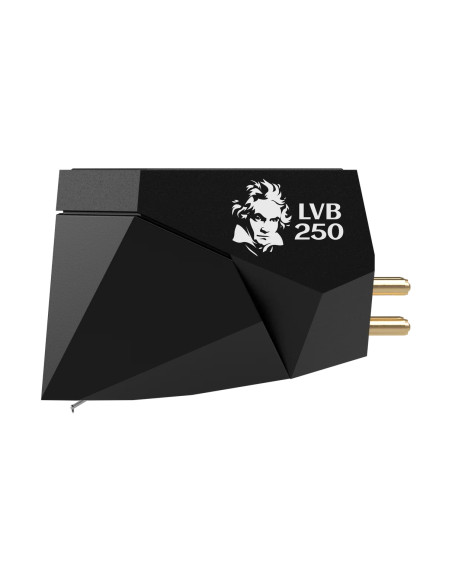

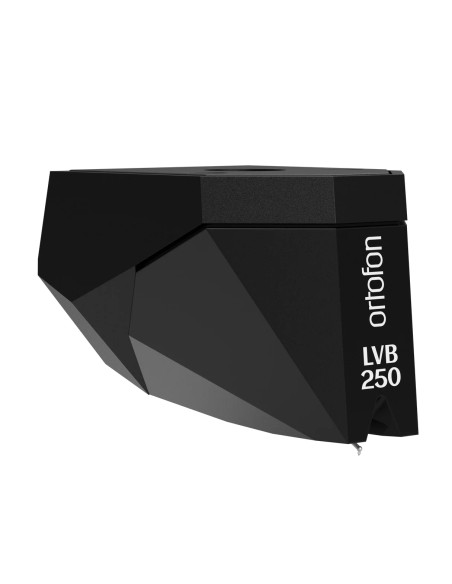

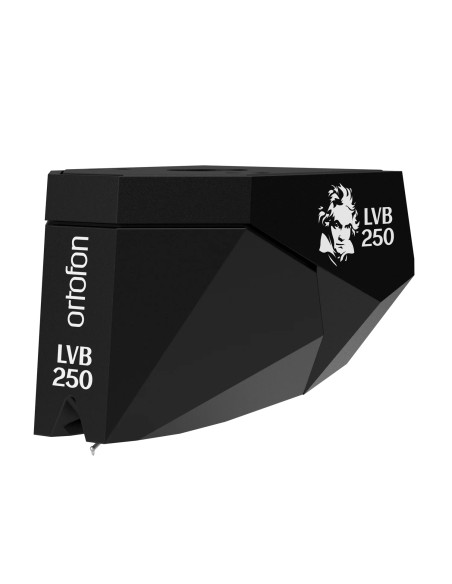

Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250
Ortofon LVB 250

Ortofon LVB 250

Ortofon
kr10,990.00
Tax included

Ny MM-Pick Up från Ortofon i den allra högsta ligan.

Beethoven hade fyllt 250 år vilket hyllas på detta sätt!


  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    5 mV
  • Channel separation at 1 kHz
    27 dB
  • Frequency response 20 Hz - 20 kHz
    + 2 / - 1 dB
  • Tracking ability at 315 Hz
    80 µm
  • Compliance, dynamic, lateral
    22 µm/mN
  • Cantilever material
    Boron
  • Stylus type
    Nude Shibata diamond
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force range
    1.5-1.7 g (15-17 mN)
  • Tracking force, recommended
    1.6 g (16 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.2 kOhm
  • Cartridge colour
    Black/Black
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    630 mH
  • Recommended load capacitance
    150-300 pF
