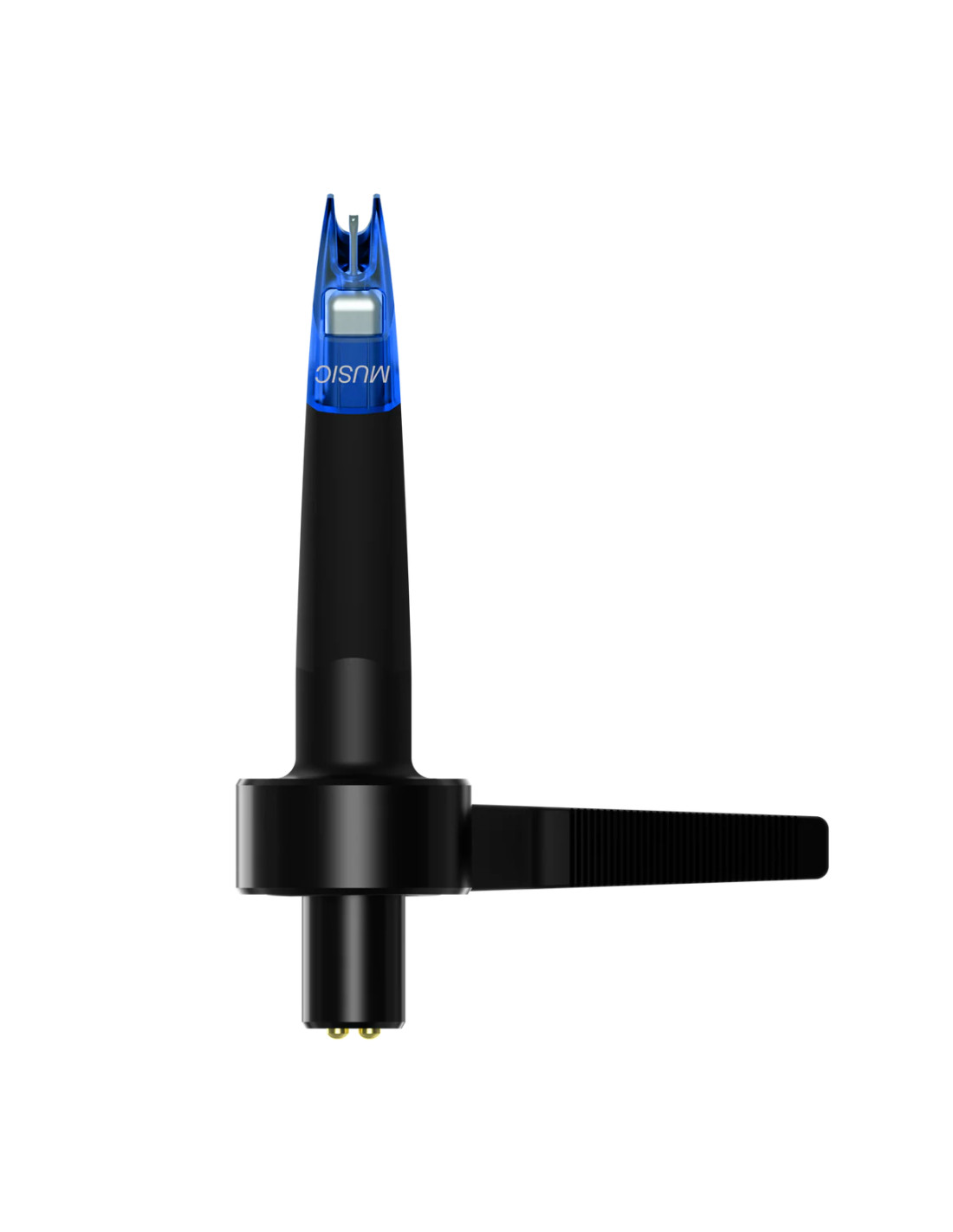

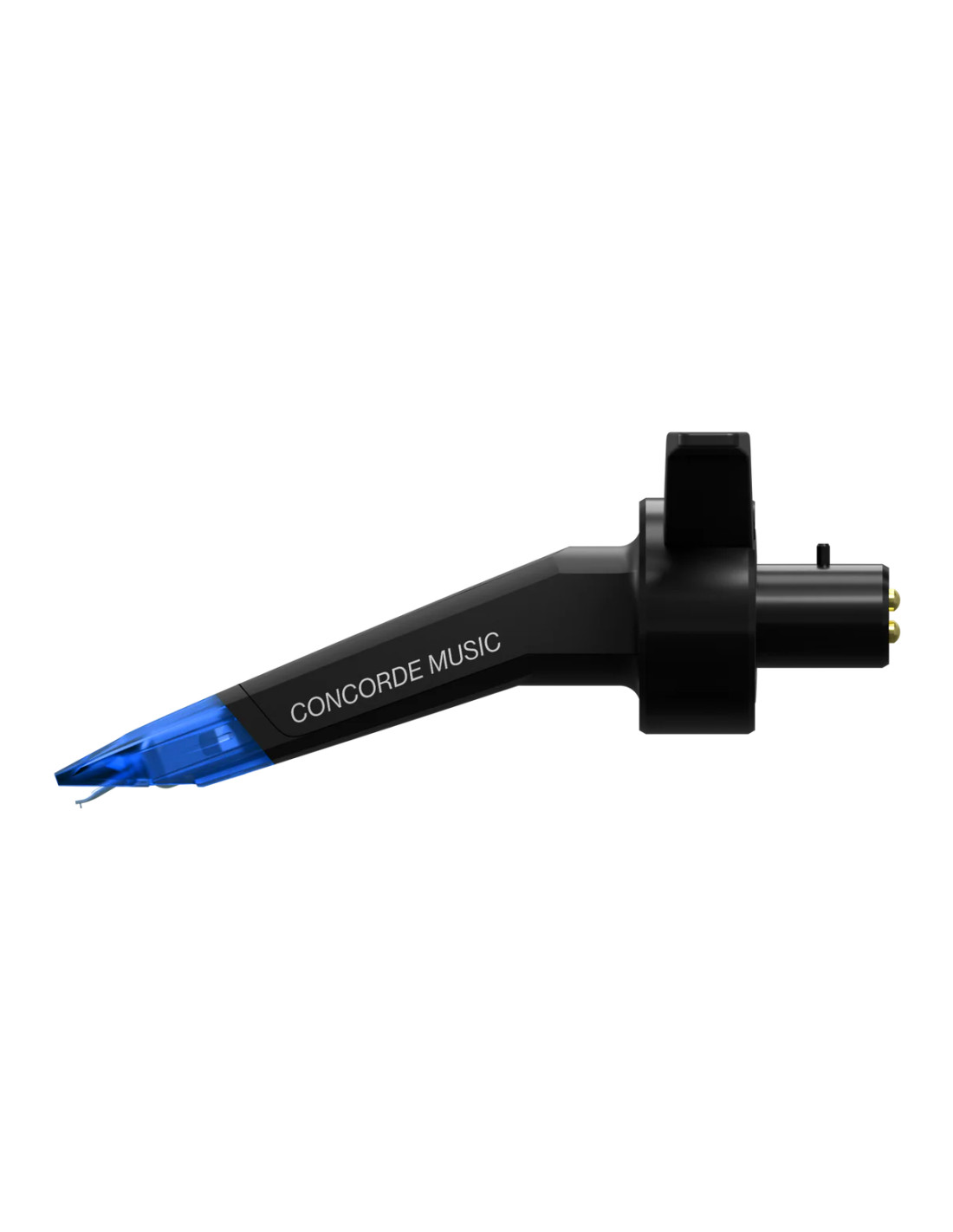

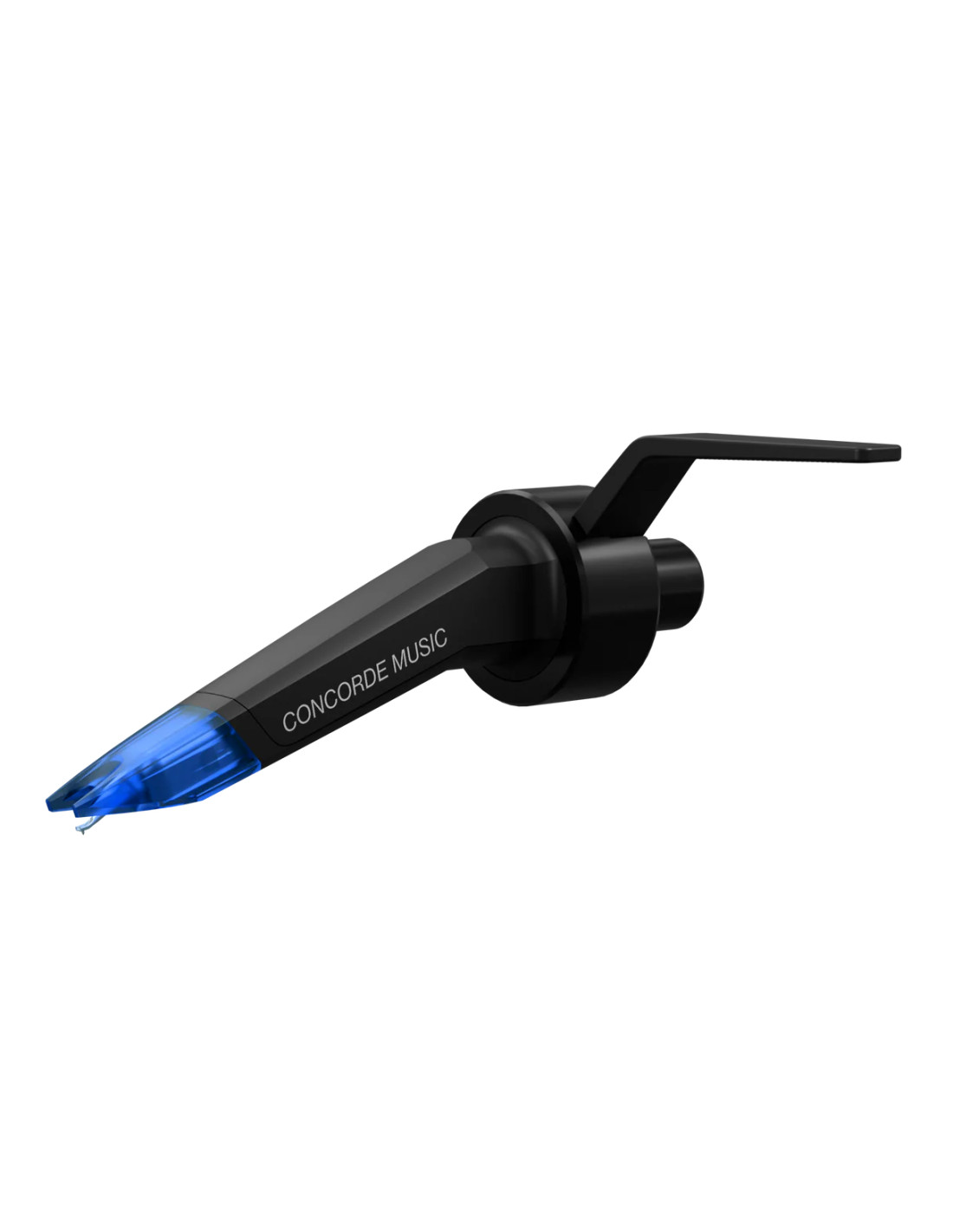

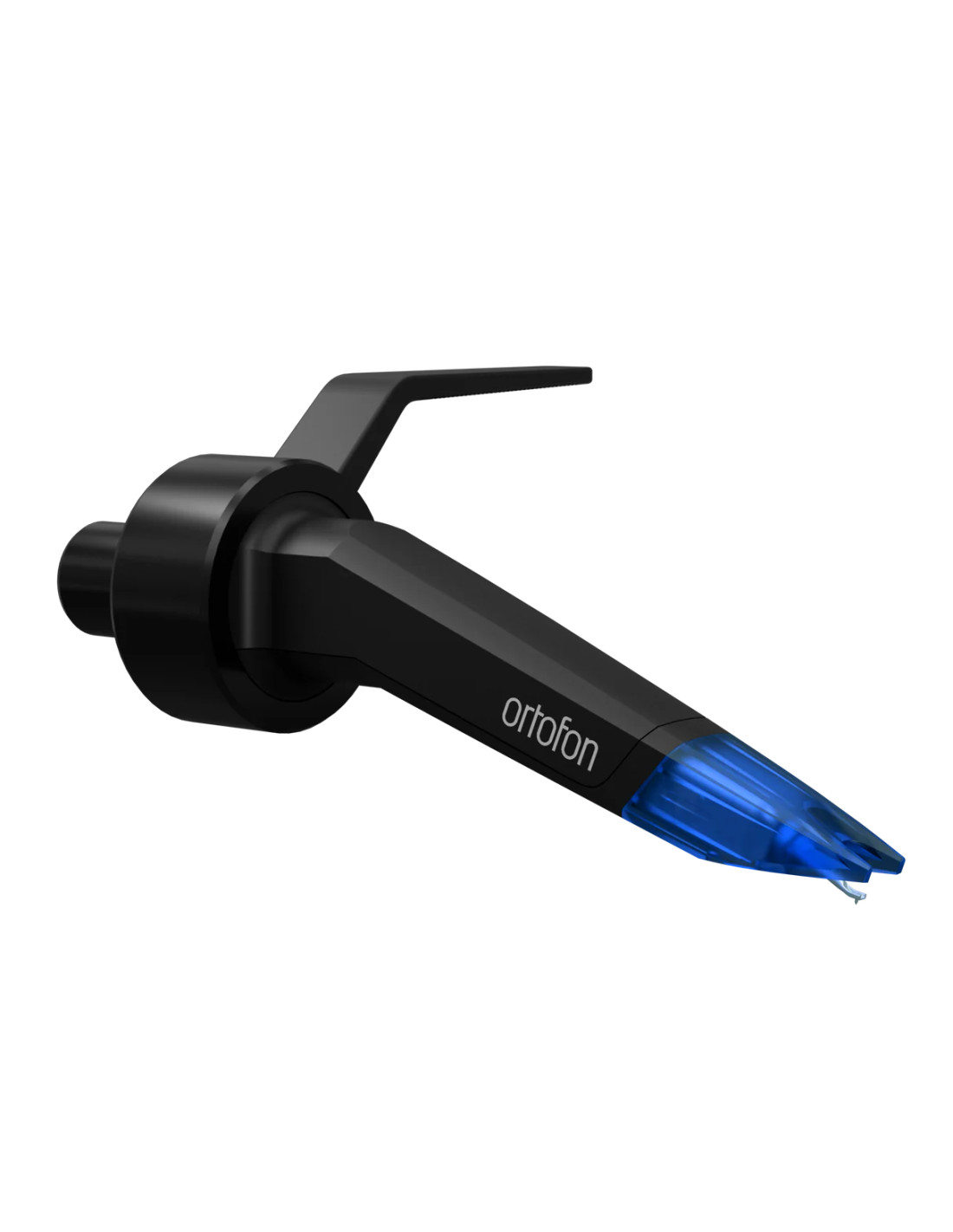

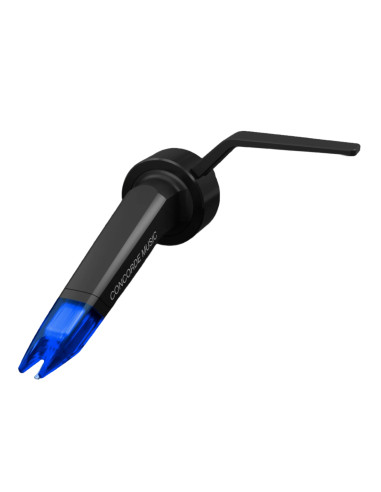

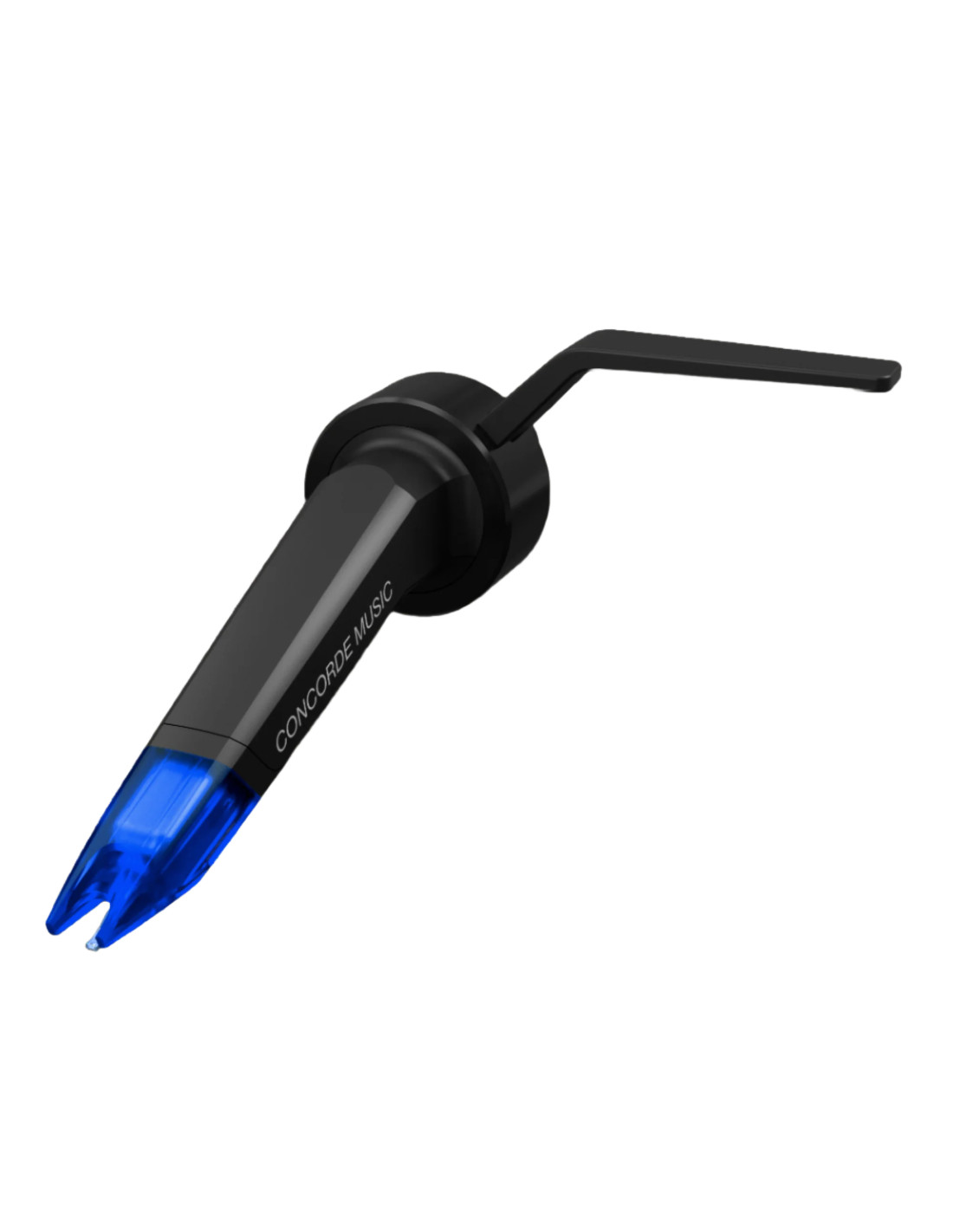

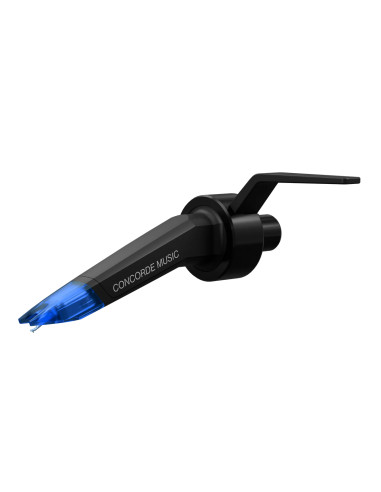

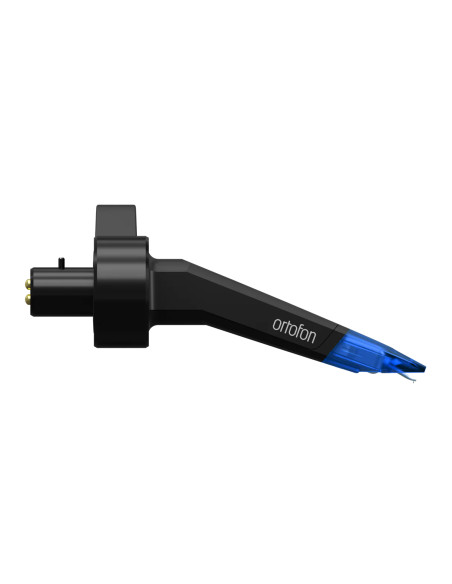

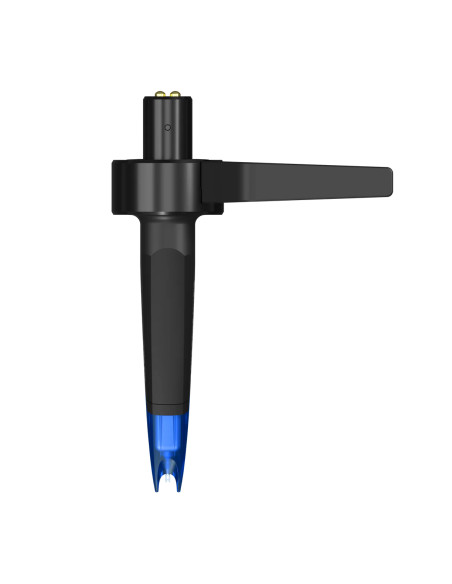

Experience unveiled and clear sound reproduction with the Concorde Music Blue, featuring a Nude Elliptical stylus on an Aluminum cantilever, and offers an upgrade from the Concorde Music Red. Enjoy seamless upgrades throughout the series, from the Concorde Music Blue to the Concorde Music Black LVB 250, simply by replacing the stylus.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music represents a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, requiring no tools, making it hassle-free and convenient.
Specifications
-
Channel balance at 1 kHz1.5 dB
-
Output voltage at 1 kHz, 5cm/sec6mV
-
Channel separation at 1 kHz25 dB
-
Frequency response 20 Hz - 20 kHz+2 / -1 dB
-
Tracking ability at 315 Hz80 µm
-
Compliance, dynamic, lateral15 µm/mN
-
Cantilever materialAluminium
-
Stylus typeNude Elliptical diamond
-
Stylus tip radiusr/R 8/18 µm
-
Coil systemQuad-coils with split pole pins
-
Tracking force, recommended1.8 g
-
Tracking angle20°
-
Cartridge colourBlack/Blue
-
Cartridge weight18 g
-
Recommended load resistance47 kΩ
-
Recommended load capacitance150-300 pF
