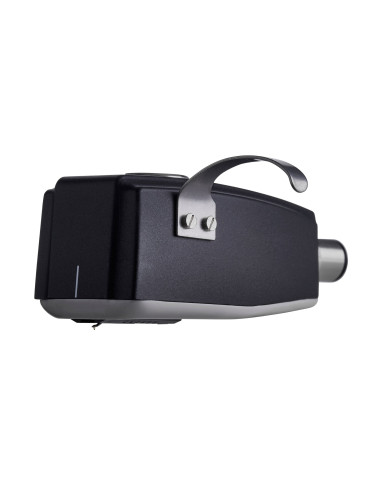

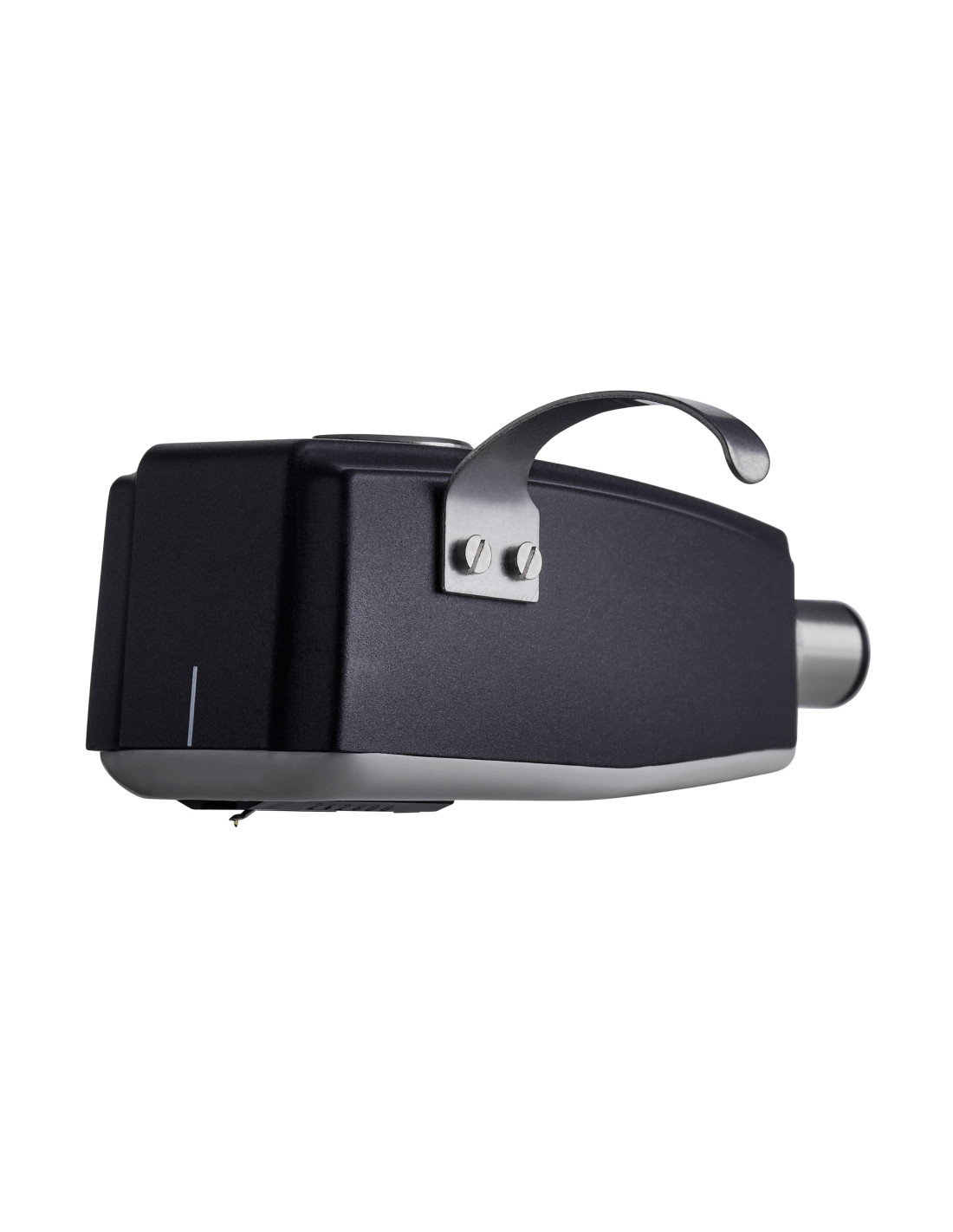

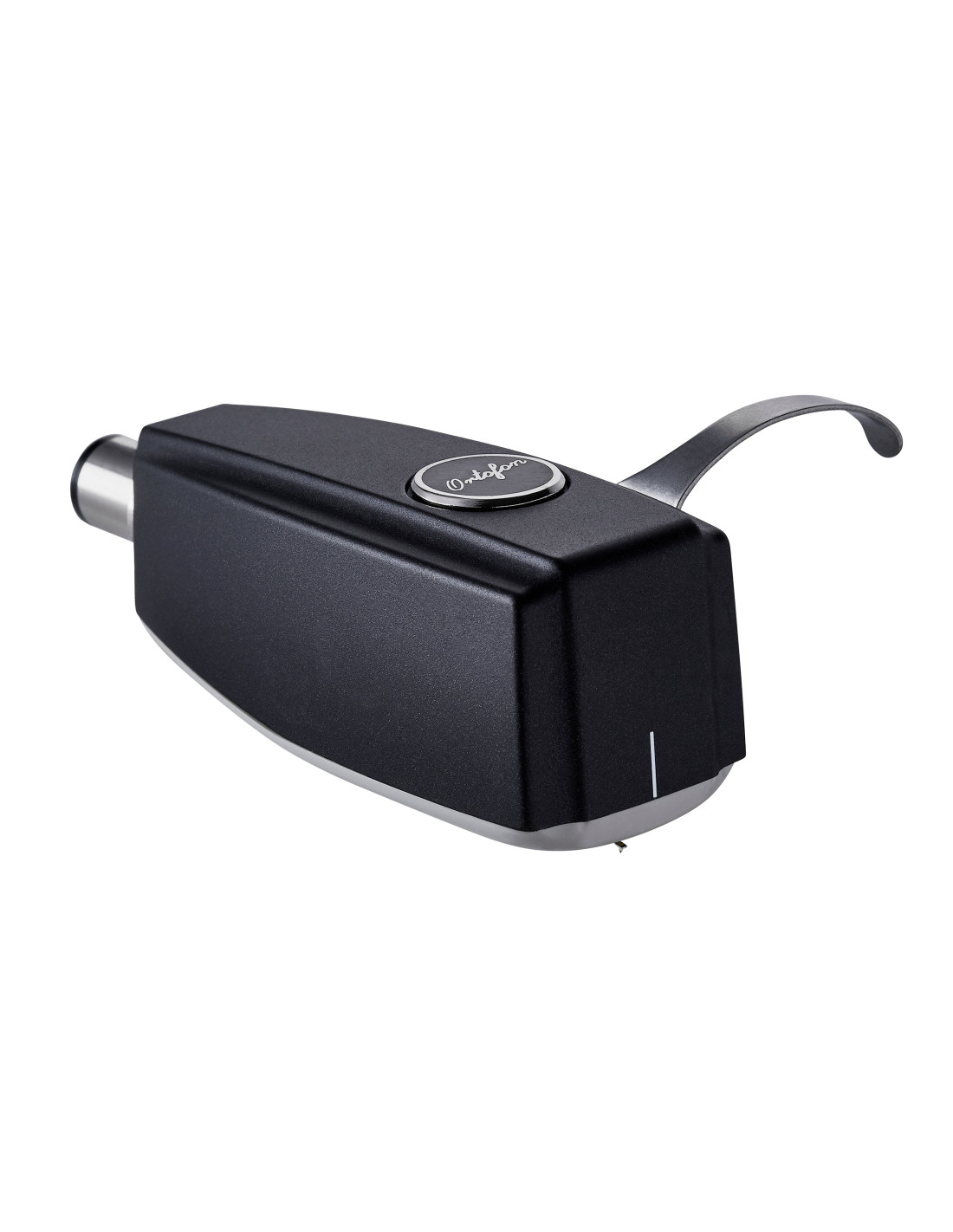

Ortofon SPU Classic GE MKII
Ortofon SPU Classic GE MKII
Ortofon SPU Classic GE MKII
Ortofon SPU Classic GE MKII

Ortofon SPU Classic GE MKII

Ortofon
kr13,990.00
Tax included

The SPU Classic GM E MkII is known for its dynamic and powerful sound reproduction

The SPU Classic GM E MkII is a Moving Coil cartridge with an elliptical stylus profil.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The SPU Classic GM E MkII’s elliptical stylus profile provides more detailed sound reproduction and expansive imaging.



Technical data

Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz  < 1 dB
Channel separation at 1 kHz  > 20 dB
Channel separation at 15 kHz  > 10 dB
Frequency response - 20-20.000 Hz + 3/- 2 dB
Tracking ability at 315Hz at recommended tracking force *) - 65 µm
Compliance, dynamic, lateral - 8 µm/mN
Stylus type - Nude elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force, recommended - 4.0 g (40 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 6 ohm
Recommended load impedance  > 10 ohm
Cartridge body material - Grinded wood and resin composite
Coilwire material - High Purity Copper (OFC)
Cartridge colour - Shiny black
Cartridge weight - 30 g

*) Typical value
