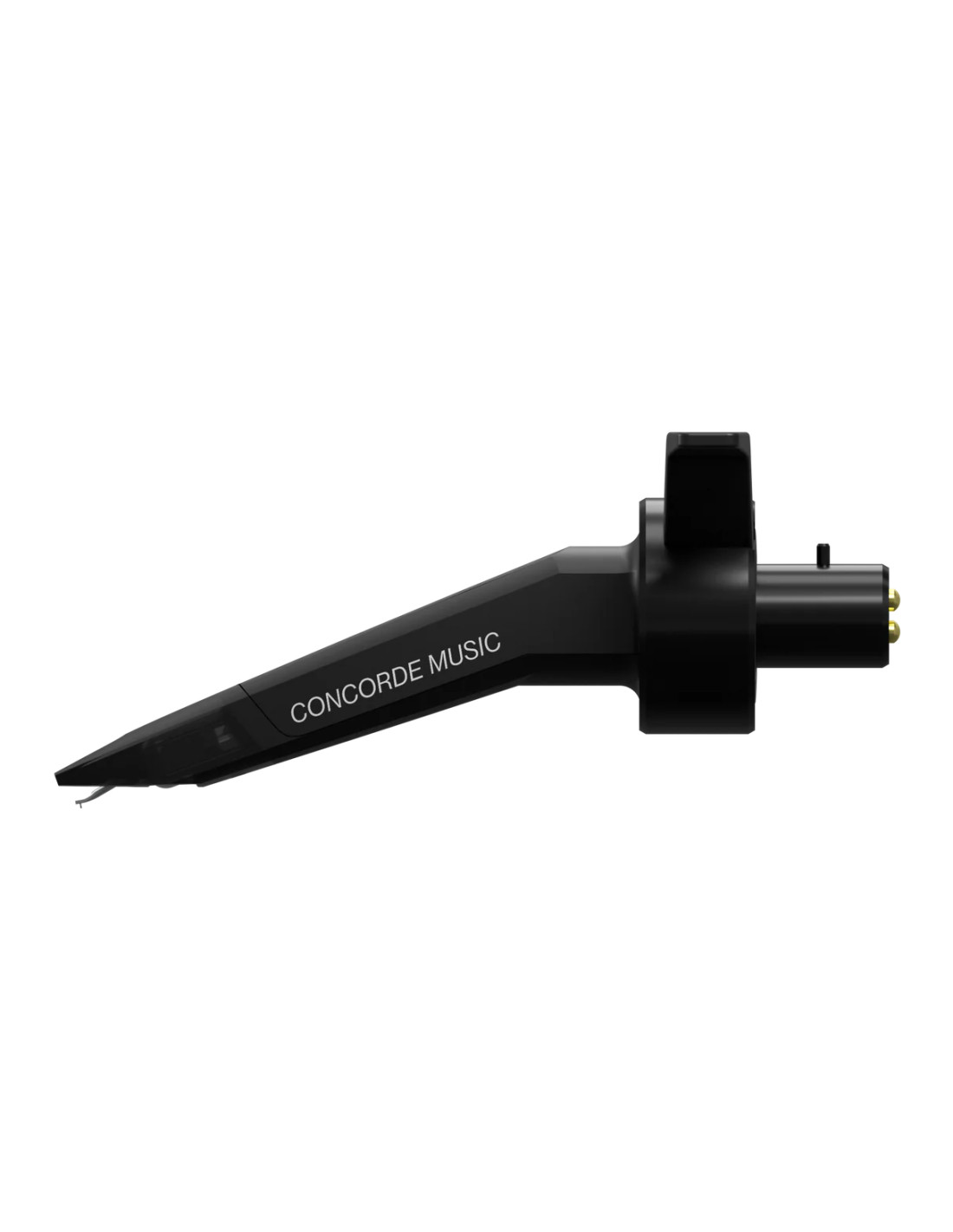

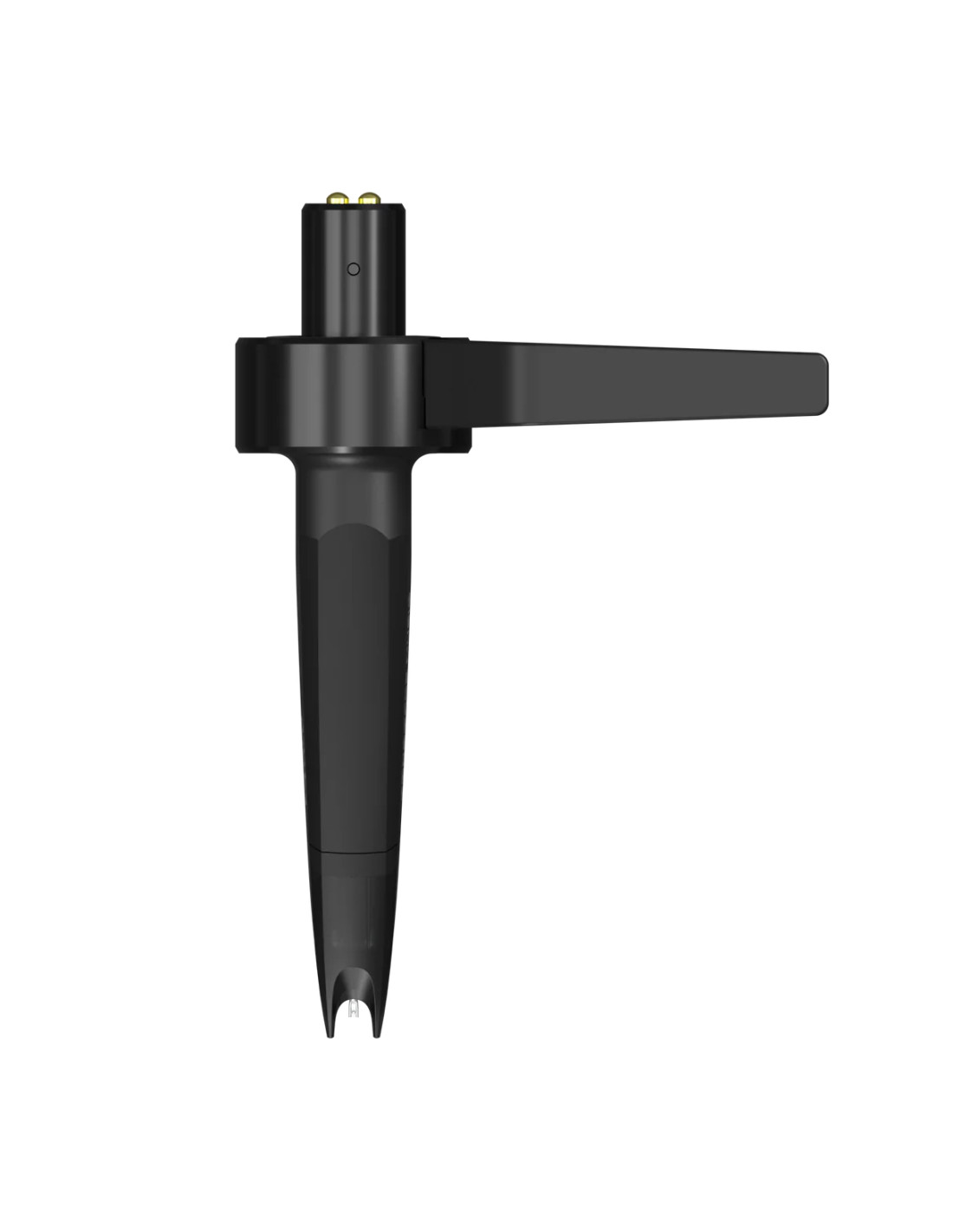

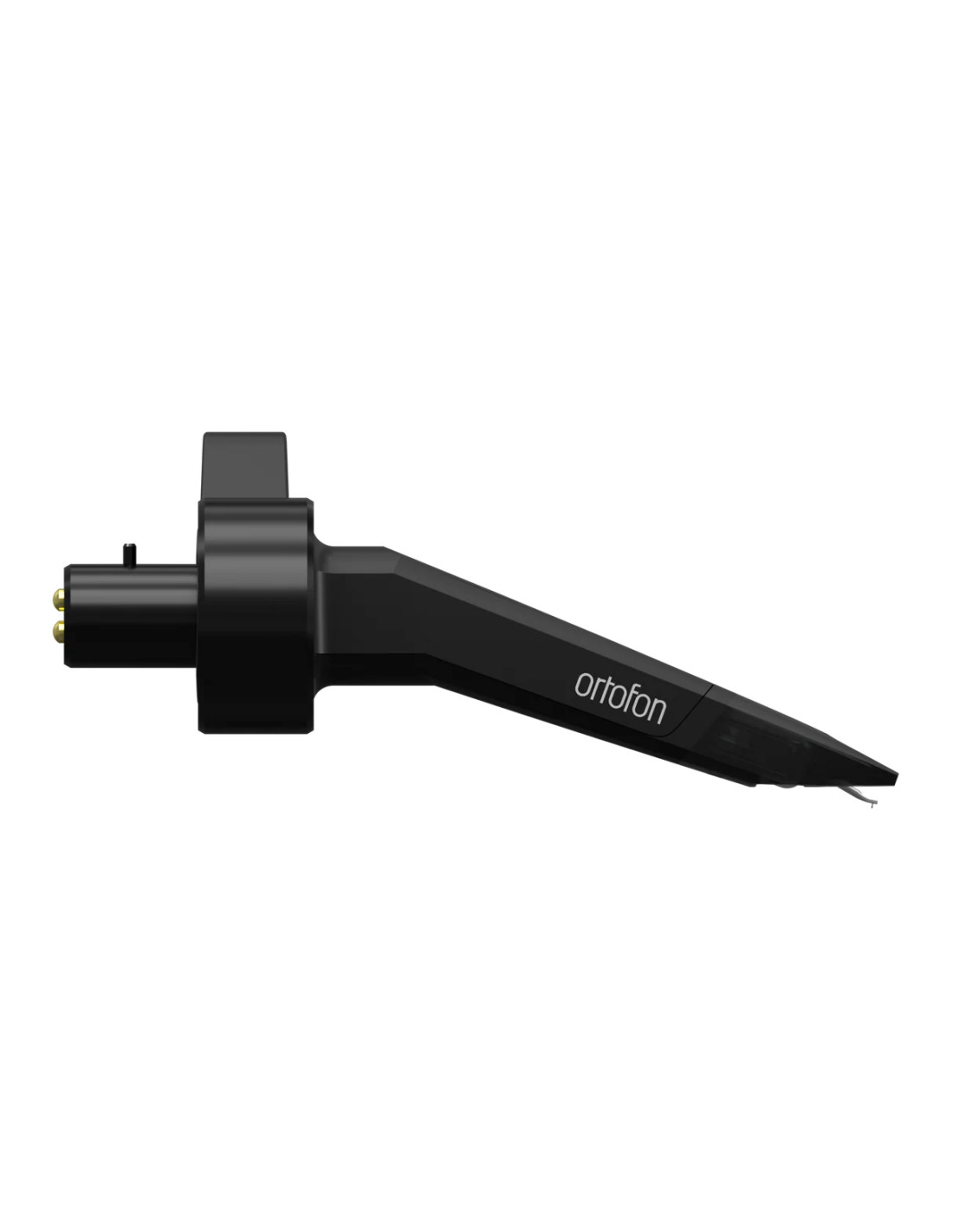

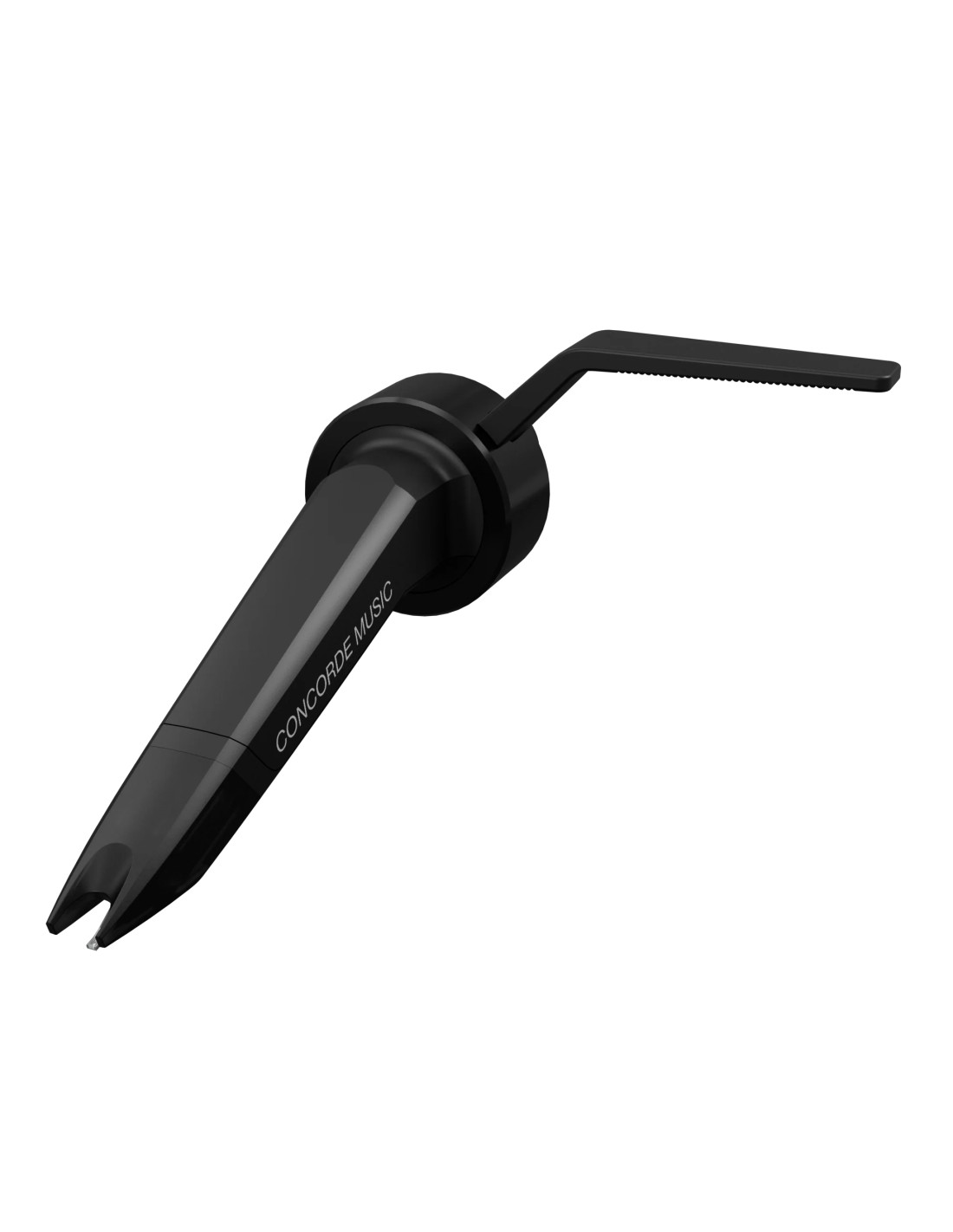

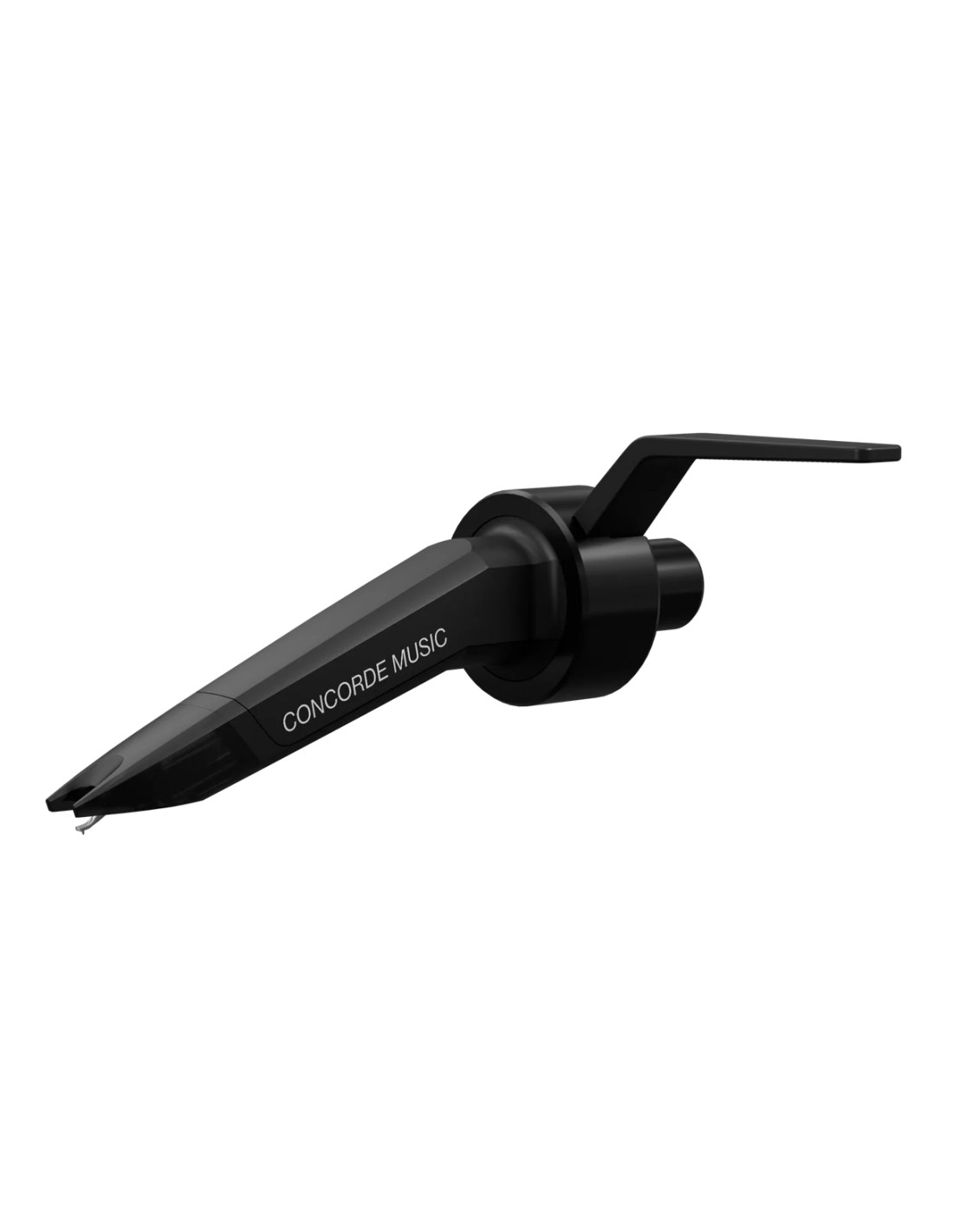

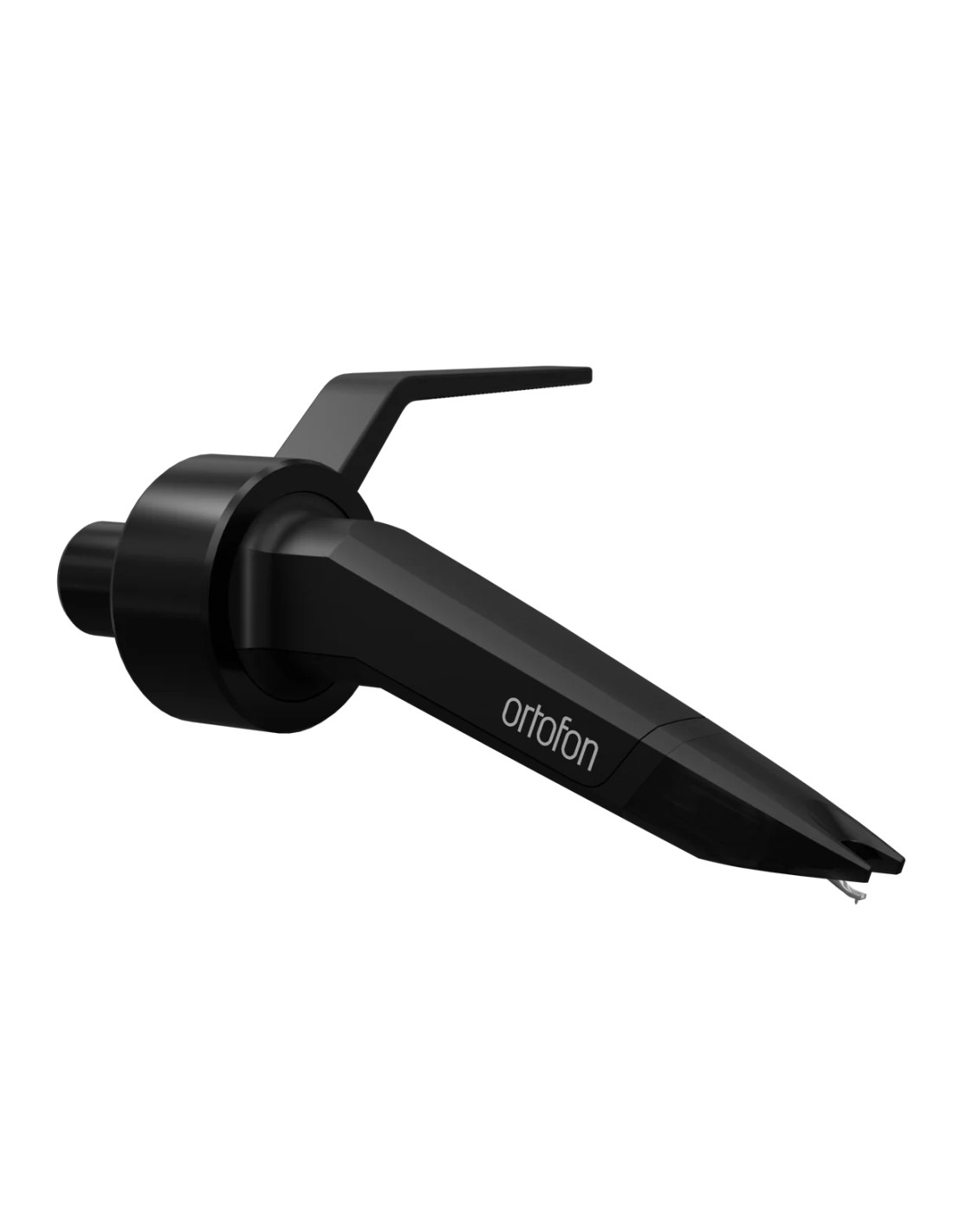

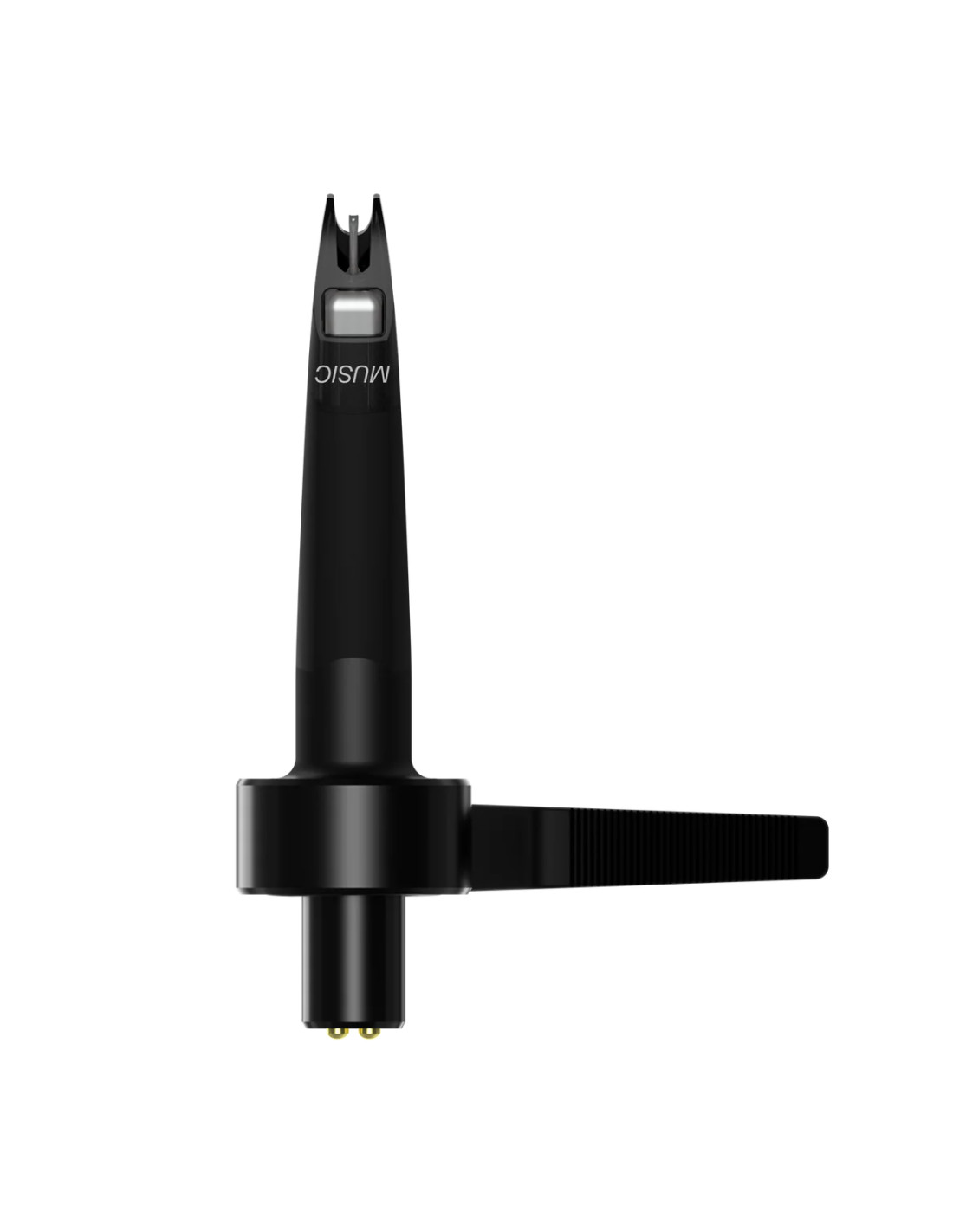

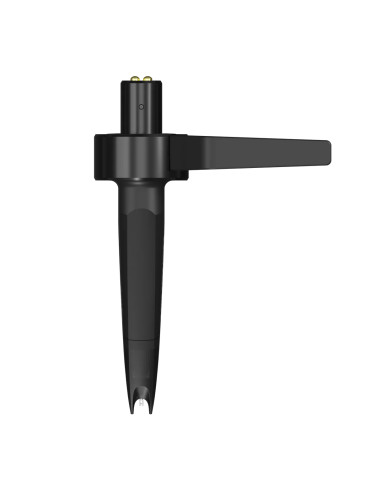

Experience transparent and articulate sound quality with the Concorde Music Black. The Concorde Music Black features a Nude Shibata stylus on Aluminium cantilever, offers an upgrade from the Concorde Music Bronze and can be upgraded with the Stylus Concorde Music Black LVB 250.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.
Specifications
-
Channel balance at 1 kHz1 dB
-
Output voltage at 1 kHz, 5cm/sec6mV
-
Channel separation at 1 kHz26 dB
-
Frequency response 20 Hz - 20 kHz+2 / 0 dB
-
Tracking ability at 315 Hz80 µm
-
Compliance, dynamic, lateral15 µm/mN
-
Cantilever materialAluminium
-
Stylus typeNude Shibata diamond
-
Stylus tip radiusr/R 6/50 µm
-
Coil systemQuad-coils with split pole pins
-
Tracking force, recommended1.8 g
-
Tracking angle20°
-
Cartridge colourBlack/Black
-
Cartridge weight18 g
-
Recommended load resistance47 kΩ
-
Recommended load capacitance150-300 pF
