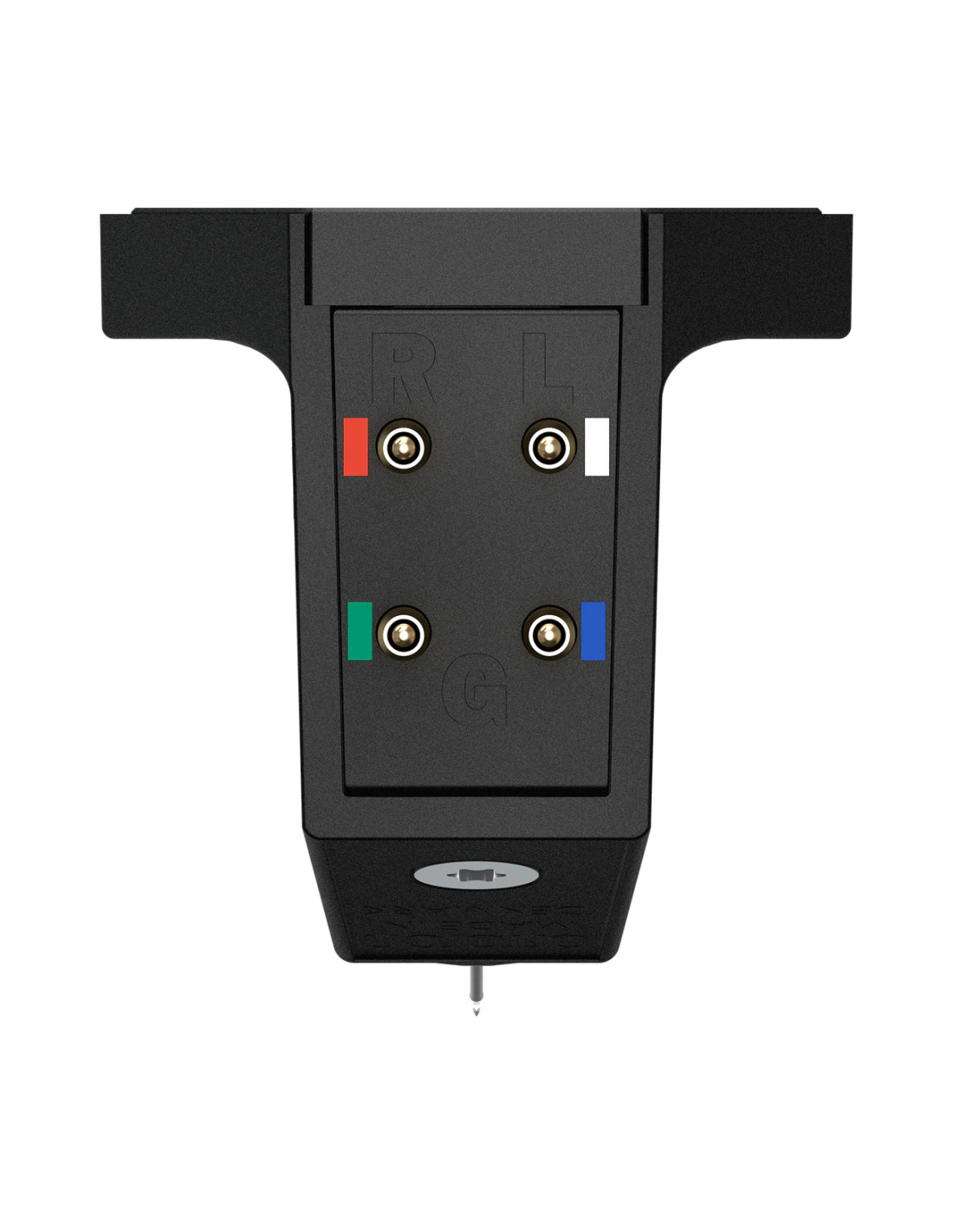

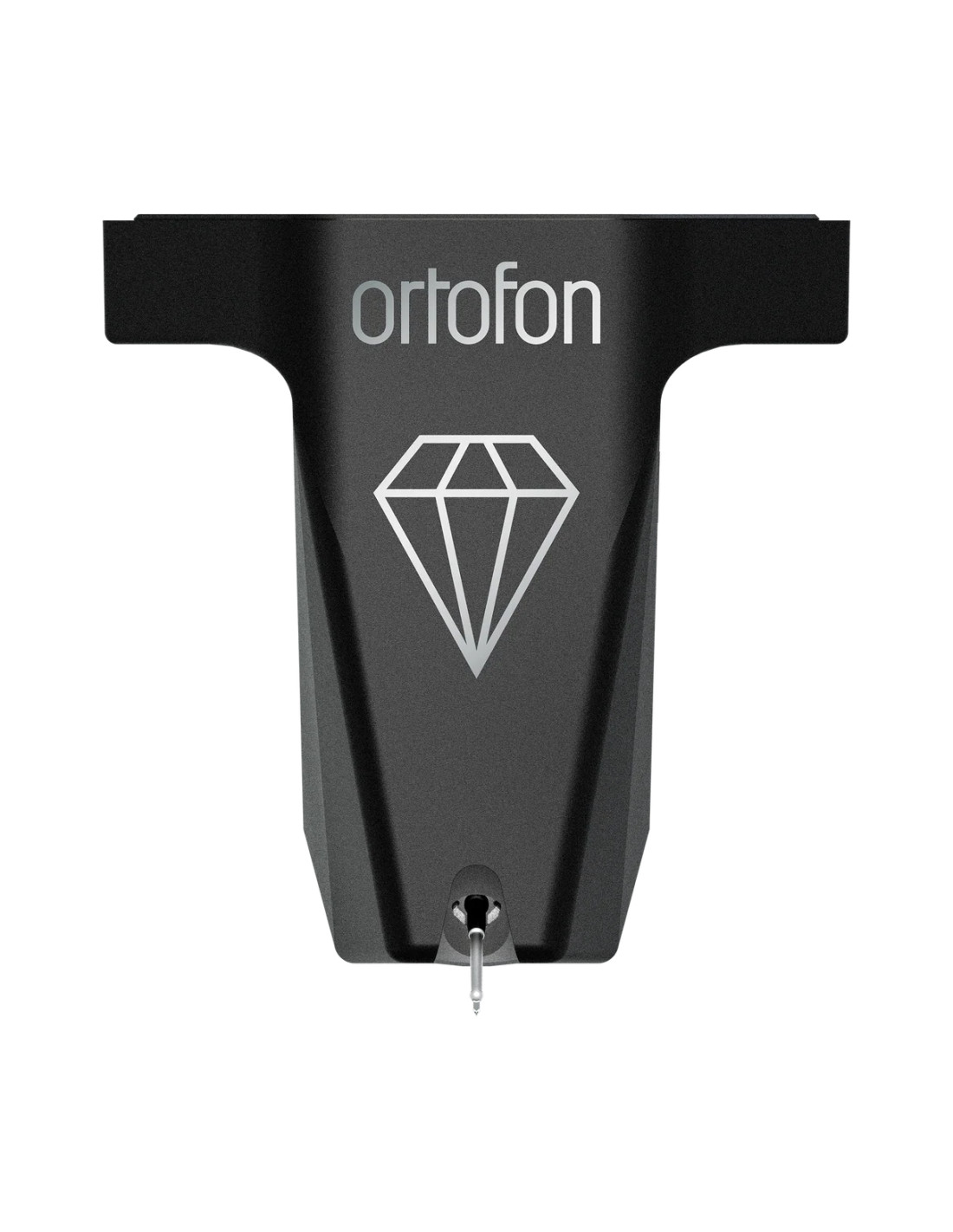

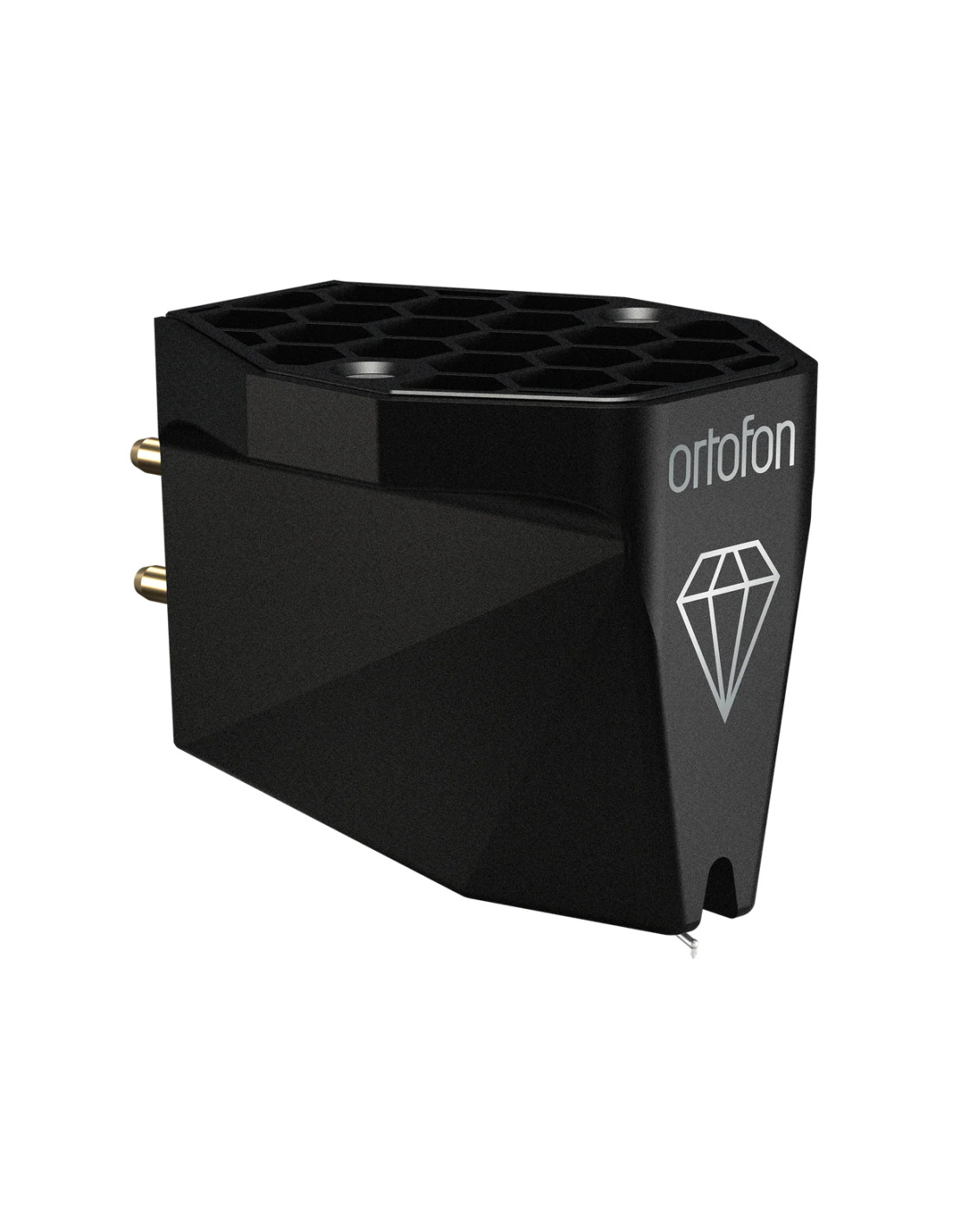

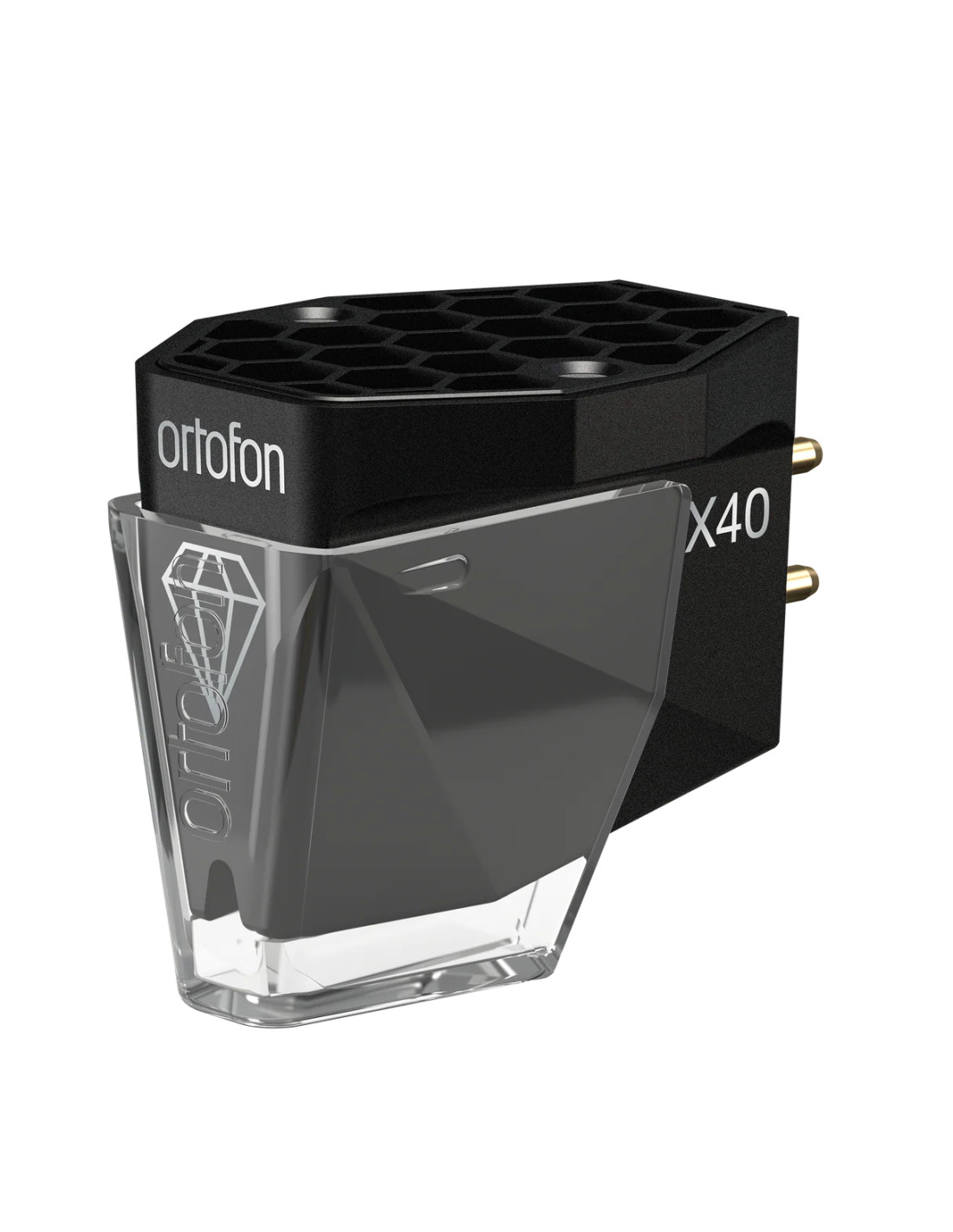

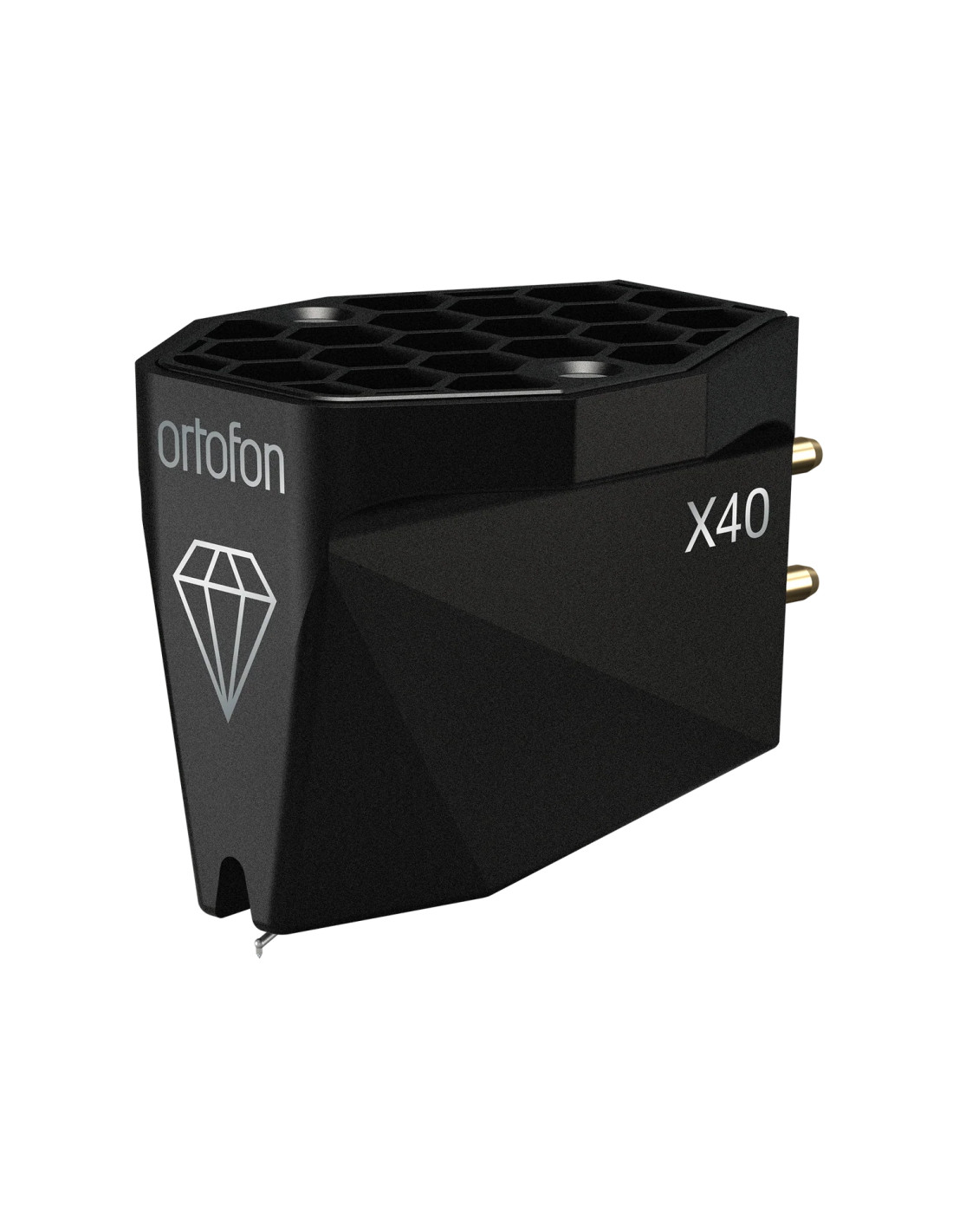

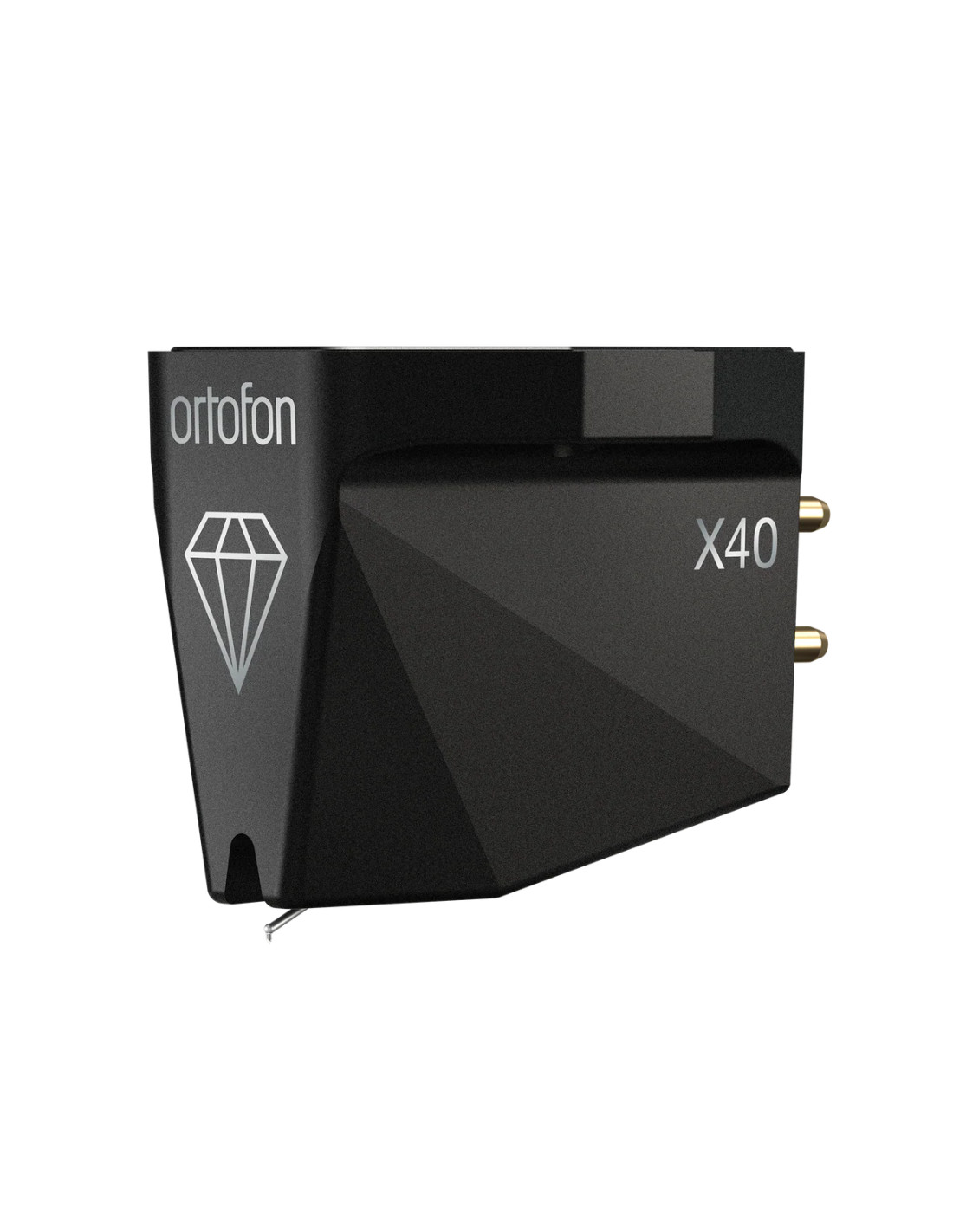

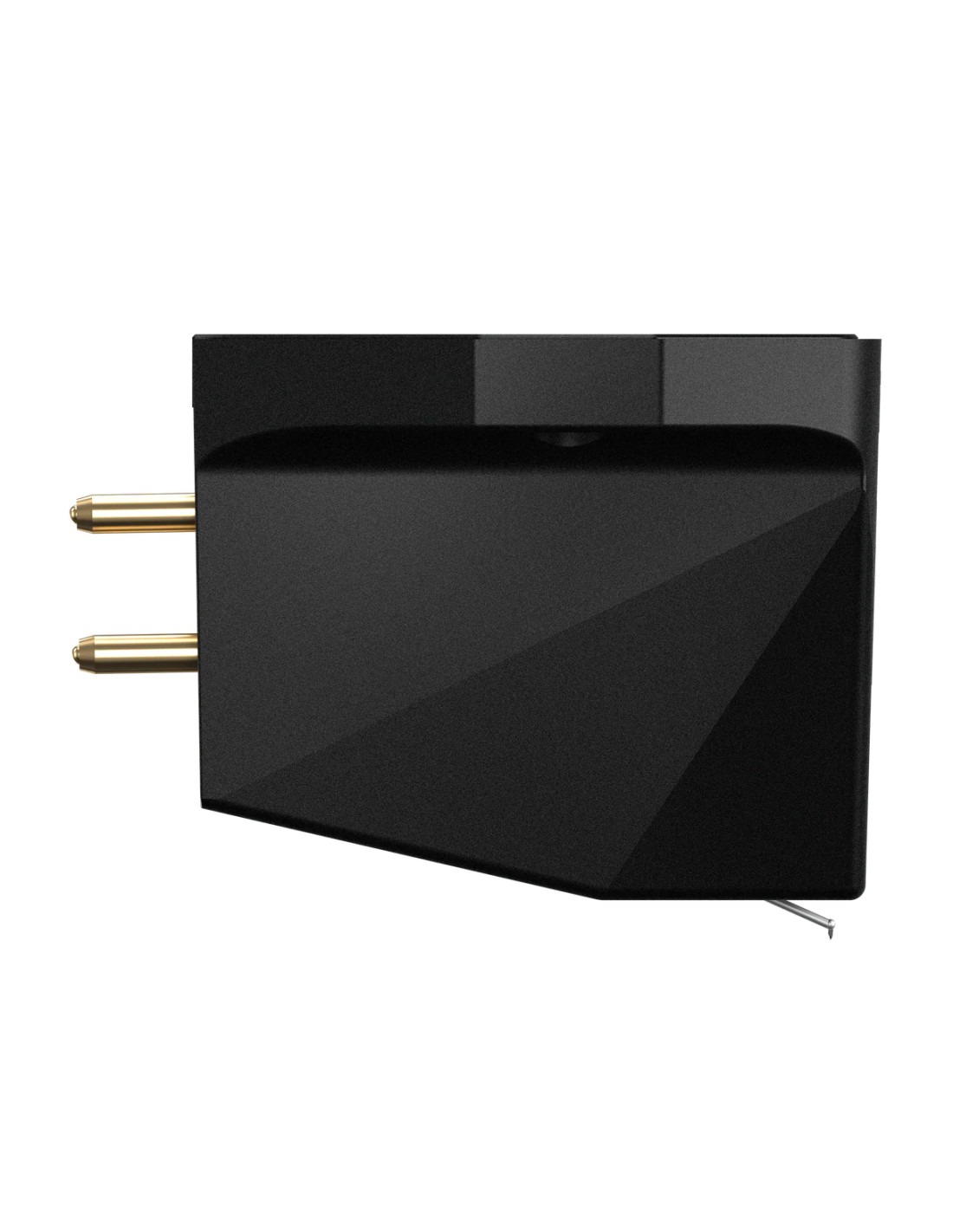

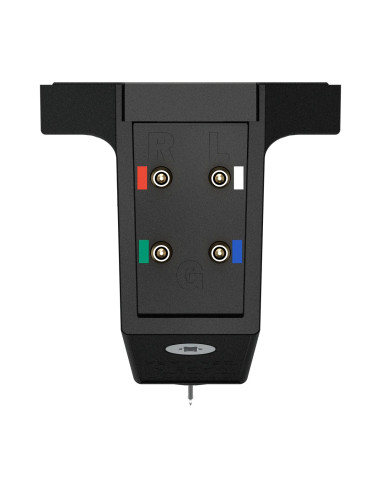

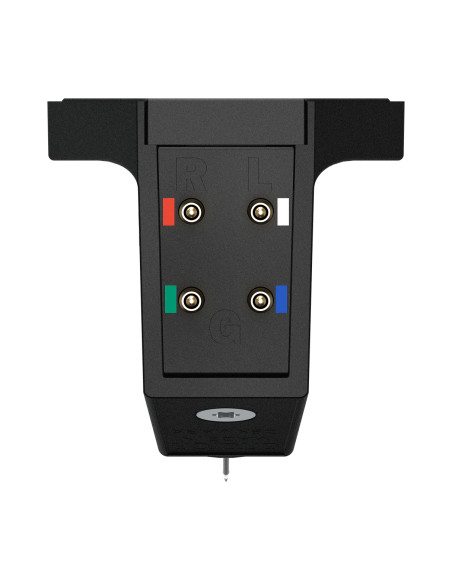

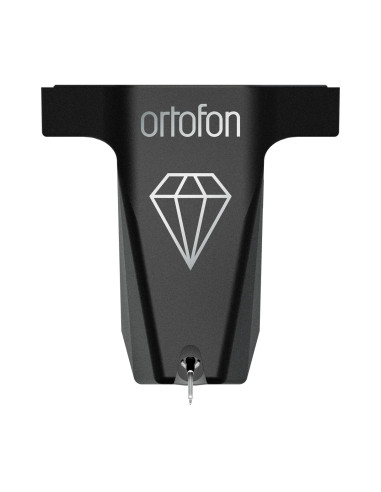

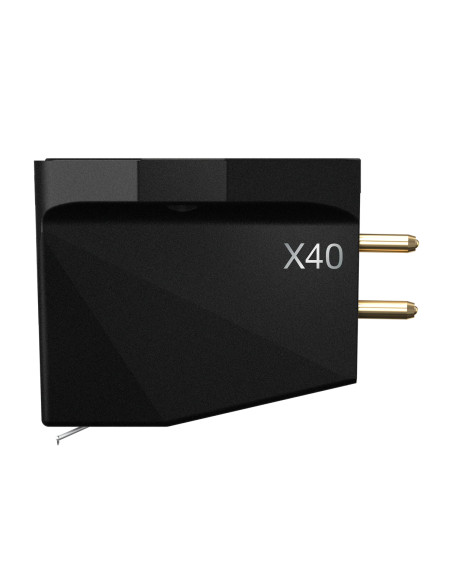

Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40
Ortofon MC X 40

Ortofon MC X 40

Ortofon
kr11,490.00
Tax included

MC X40 is the pinnacle of the MC X Series, designed for the most discerning audiophile. Featuring a nude Shibata diamond stylus mounted on a rigid and lightweight boron cantilever, this cartridge provides unparalleled transparency, speed, and responsiveness.



Specifications


  • Channel balance at 1 kHz
    0.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.4 mV
  • Channel separation at 1 kHz
    26 dB
  • Frequency response 20 Hz - 20 kHz
    +/-1 dB
  • Compliance, dynamic, lateral
    15 μm/mN
  • Cantilever material
    Boron
  • Stylus type
    Nude Shibata
  • Stylus tip radius
    r/R 6/50 μm
  • Stylus suspensions
    Ortofon exclusive
  • Coil system
    Quad coils
  • Tracking force, recommended
    2.0 grams
  • Internal impedance, DC resistance
    6 Ω
  • Coil wire material
    High-purity silver
  • Cartridge weight
    8.6 grams
  • Recommended load resistance
    > 50 Ω
