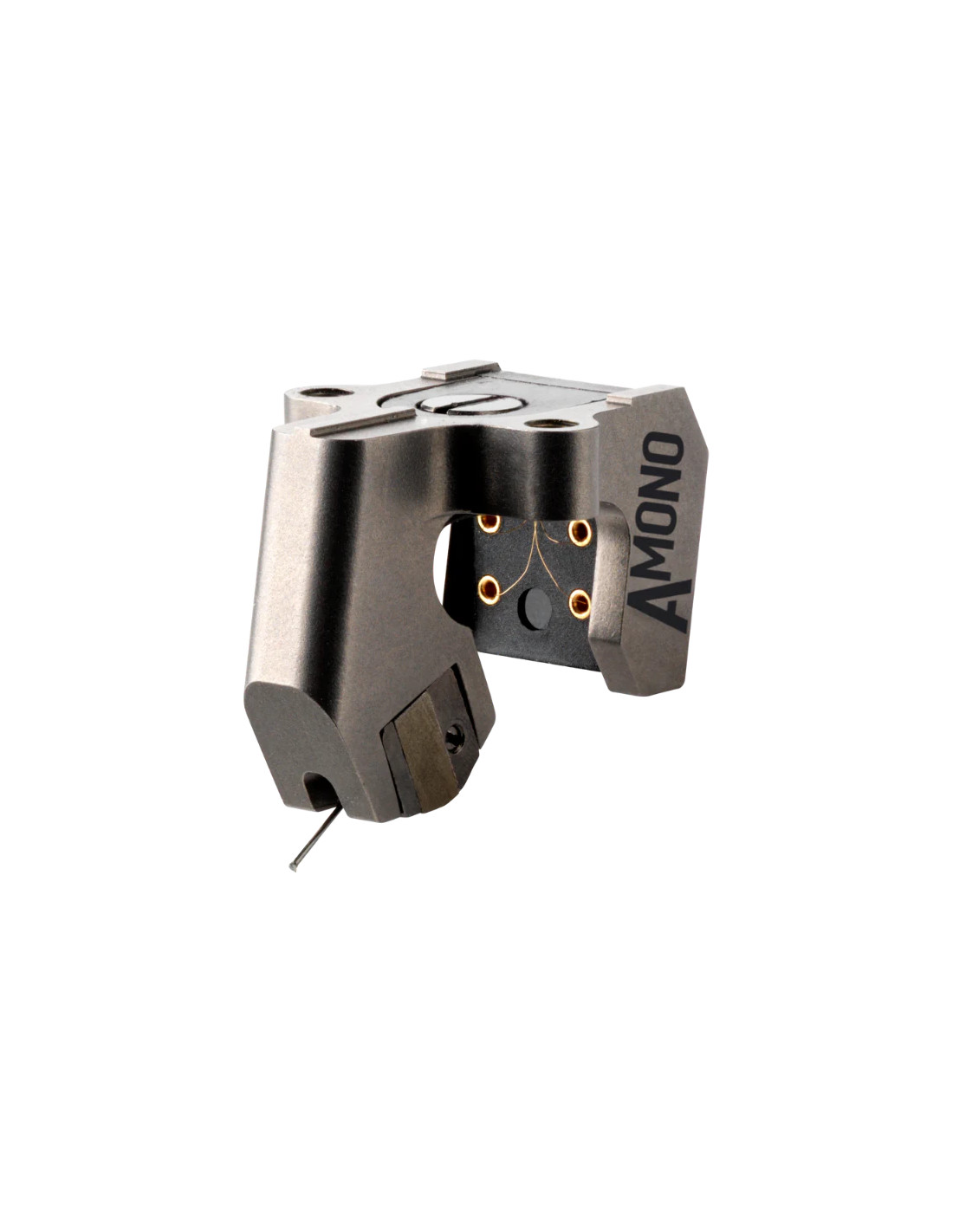

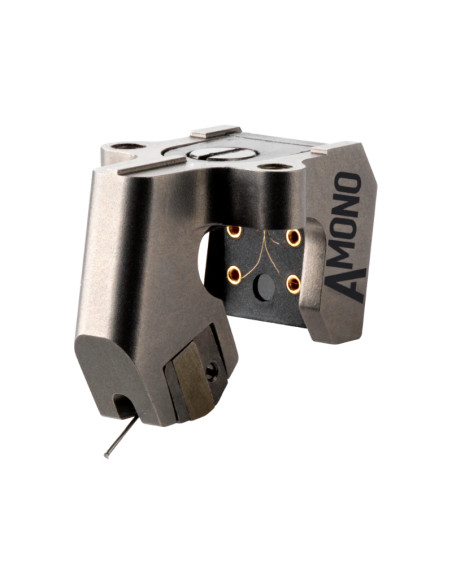

Ortofon MC A Mono
Ortofon MC A Mono

Ortofon MC A Mono

Ortofon
kr54,990.00
Tax included

The MC A Mono is a TRUE MONO cartridge for play-back of MONO recordings. If you play a MONO record with a stereo cartridge you will not achieve the same signal in the two channels due to imperfections such as crosstalk, noise, phase errors, tracking error, antiskating and distortion.

This difference between the channels will result in an unstable and partially fuzzy image. A mono switch, to some extent, can improve this.



Specifications

  • Output voltage at 1 kHz, 5cm/sec
    0.2 mV
  • Frequency response 20 Hz - 20 kHz
    +2 dB/- 1 dB
  • Tracking ability at 315 Hz
    90 µm
  • Compliance, dynamic, lateral
    13 µm/mN
  • Cantilever material
    Boron
  • Stylus type
    Special polished Nude Ortofon Replicant 100
  • Stylus tip radius
    r/R 5/100 µm
  • Tracking force range
    2.0-2.5 g (20-25 mN)
  • Tracking force, recommended
    2.3 g (23 mN)
  • Tracking angle
    23°
  • Internal impedance, DC resistance
    7 Ohm
  • Recommended load impedance
    > 10 Ohm
  • Coil wire material
    Aucurum, gold-plated, 6NX oxygen free copper
  • Cartridge body material
    SLM Titanium
  • Cartridge colour
    Silver
  • Cartridge weight
    6 gram
