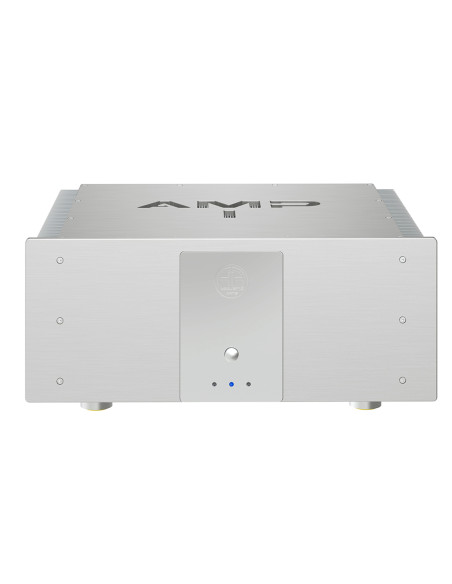

Accustic Arts AMP 1

 Specifications:

Inputs:                                                2 x RCA (unbalanced)

                                                           2 x XLR (balanced)

Input impedance:                               RCA - 15 kW

                                                           XLR - 16 kW

Output:                                               4 loudspeaker terminals (WBT)

Minimum loudspeaker impedance:   2 ohm

Voltage gain:                                      25.0 dB

Rated power output:

(at THD+N = 0,1 %)                           approx. 2 x 330 watts on 4 W

                                                             approx. 2 x 210 watts on 8 W

Frequency response:                         10 Hz – 50,000 Hz (+0/-0,5dB)

                                                           (at 10 watts on 4 W)

Distortion factor (THD+N):                0,003% on 4 W load at 1kHz and 10 watts

Signal to noise ratio:                          -96 dB A (ref. 6.325 V)

Crosstalk:                                          108 dB with 1 kHz

Loading and screening capacity:      > 80,000 µF

Dimensions:                                       206mm x 482 mm x 420mm (H x W x  D)

Will be shipped in a flight case
