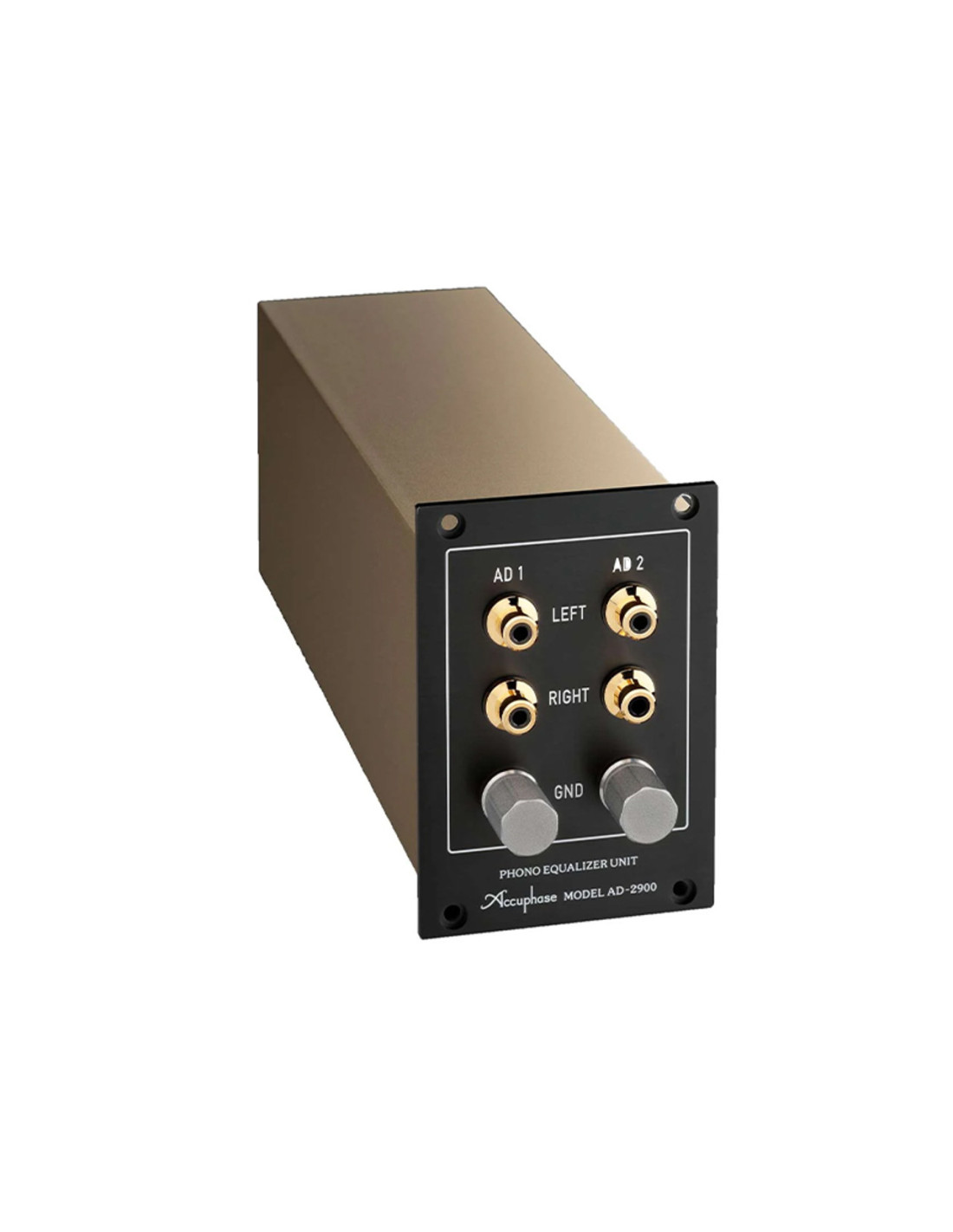

Det lite större phonostaget passande t ex C 2900. Dubbla ingångar, separat ställbart MM/MC
Features & Specifications:
- Contains equalizer units with boards using glass cloth fluorocarbon resin with totally separated left / right channels
- Ideal MC/MM independent input circuit to achieve high noise performance
- Differential-style equalizer for high-precision RIAA characteristics
- Two input terminals to connect up to two tone arms
- Functions that can be operated from the front panel
- Memory settings for each input terminal
- Robust aluminum case to shield against external noise
- MC Gain : 64 / 70 dB switching Input impedance : 10 / 30 / 100 / 200 / 300 ohms switching
- MM Gain : 34 / 40 dB switching Input impedance : 47 kilohms ratedDifferential amplifier circuit with ultra low noise bipolar-transistors for MC cartridges.
Compatibility with other pre-amplifiers (C-2820/C-2420 etc):

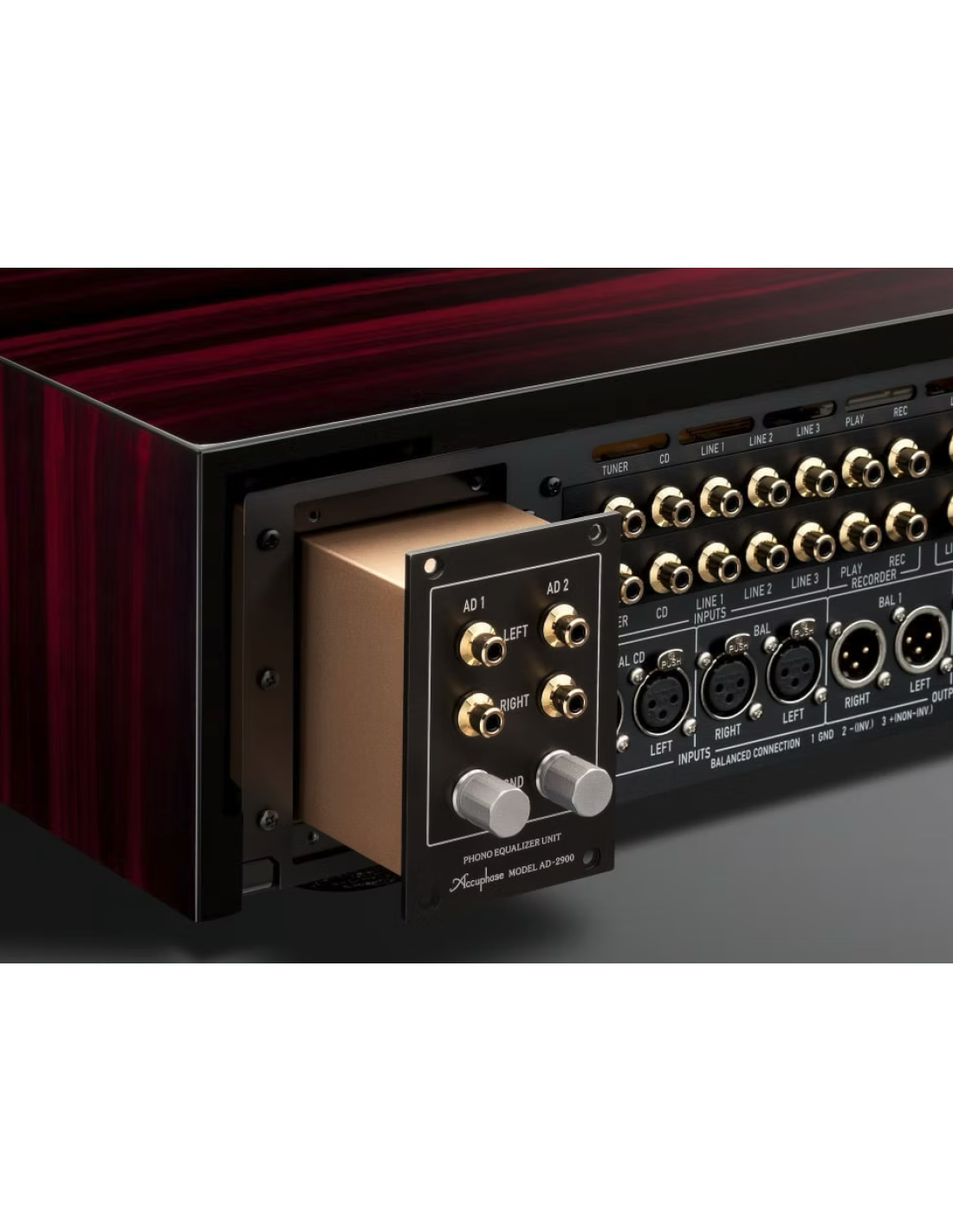

AD-2900 Can also be used for C2850/C-2820/C-2810/C-2800/C-2450/C-2420/C-2410/C-2400/C-290V/C-290.
|
Input |
Input Sensitivity |
Input Impedance |
|
MC |
64/70dB |
10/30/100/200/300Ω |
|
MM |
34/40dB |
47kΩ |
Regardless of the preamplifier model, the gain is MC: 64/70 dB and MM: 34/40 dB.
Please note that it is different from the display of the gain switching switch when mounted on the following models.
C-2820, C-2810, C-2800,C-2420、C-2410、C-240
Load impedance that can be selected while the MC input varies depending on the model of the preamplifier.
| Model | Gain |
| C-2900 | 10/30/100/200/300Ω |
