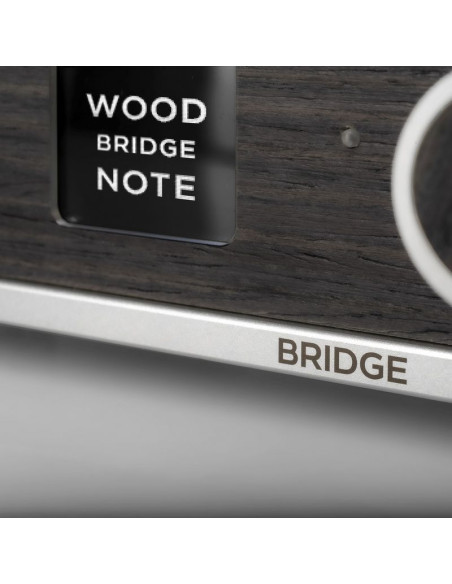

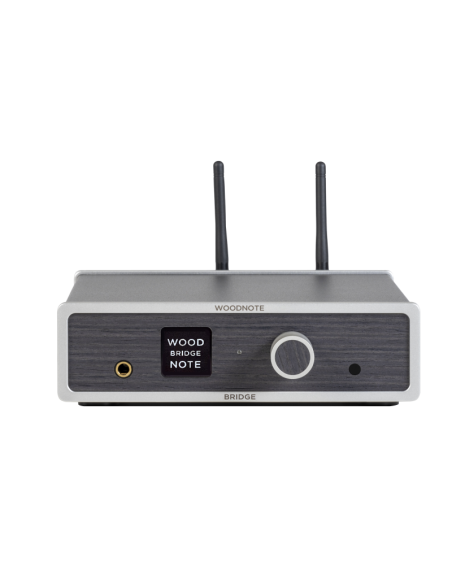

Woodnote BRIDGE

General

Mains connection
115 or 230 V, 50 Hz

Power consumption
0.5 W standby / 5 W operation / 10 W max

Dimensions
207 × 250 × 62 mm (W × D × H)

Weight
1.7 kg

Network Player

Ethernet
100 Mbit/s

Wi-Fi
Dual-band 802.11a/b/g/n/ac, WPS

Bluetooth
4.2, A2DP, SBC / AAC

USB
Host interface for storage devices and CD drives, max. 1 A

Streaming & Formats

Streaming services
TIDAL, Qobuz, Deezer, HighResAudio, Spotify Connect, Qobuz Connect, TIDAL Connect

Additional features
Gapless playback, internet radio, podcasts

Supported formats
WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA, native DSD

Network standards
UPnP / DLNA

Digital Signal Processing

Master clock
Ultra-low jitter MEMS femto clock

Volume control
0–60 dB in 1 dB steps

Balance
±6 dB in 1 dB steps

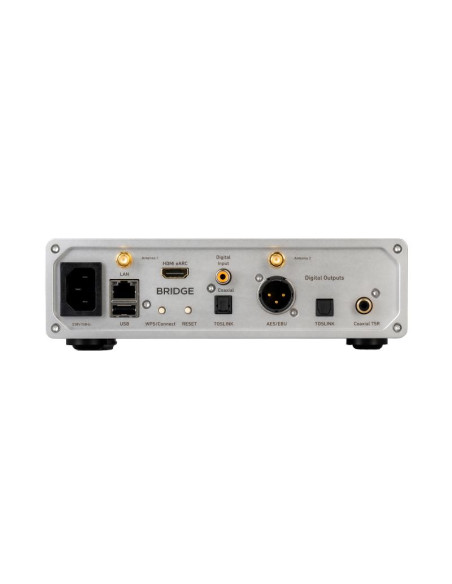

Connections

Inputs
RCA, TOSLINK, LAN, USB, HDMI eARC

Outputs
AES/EBU (XLR), RCA, TOSLINK up to 192 kHz / 24 bit
