Limetree Network Mk2

Name: Limetree Network Mk2
Brand: Lindemann
SKU: 114
Price: 13500 SEK
Availability: PreOrder

Brand: Lindemann

kr13,500.00

Tax included

Streaming-DAC med fantastiska prestanda och en suverän app! Byggd i Tyskland.

Limetree NETWORK II: What’s new?

D/A converter and analog output stage (new development):
Converter module ES9038 Sabre DAC. Ultra high resolution, integrated DPLL and SRC for jitter elimination. Briefly, one of the best D/A converter chips on the market.
MEMS femto-clock < 500 fs clock jitter. Extremely stable clock with ultra low phase noise for best sound results.
High-quality analog level control. Thus extremely low noise level. HF intermodulation of the converter module is attenuated together with the volume. Full resolution even at low levels.
Excellent sounding headphone amplifier with high output current. Ultra low distortions, high damping factor, drives headphones from 16 to 300 ohms.
IR remote control for volume, mute and track selection.
CD player operation – with external CD-ROM drive.

Integrated preamp with extended functions

Separate volume control for headphone and line output. Perfect for simultaneous operation with headphones and loudspeakers. Each output will remember its last volume setting.
Balance control with a +/- 6 dB setting range (in 1 dB steps).
Headphone volume with ideal gain range: 0 dB / + 12 dB. Useful e.g. with low-sensitivity magnetosts.

Additional app settings

7 different oversampling filters selectable.
Balance +/- 6 dB
Headphone output low/high
LED brightness low/high

"All I can truly say about the NETWORK is that great things really do come in small packages! Lindemann has hit it out of the park with this one!" Enjoy The Music (US) / July 2019

The Limetree NETWORK is a high-grade network player which can play back music from streaming services and local storage media in studio master quality.

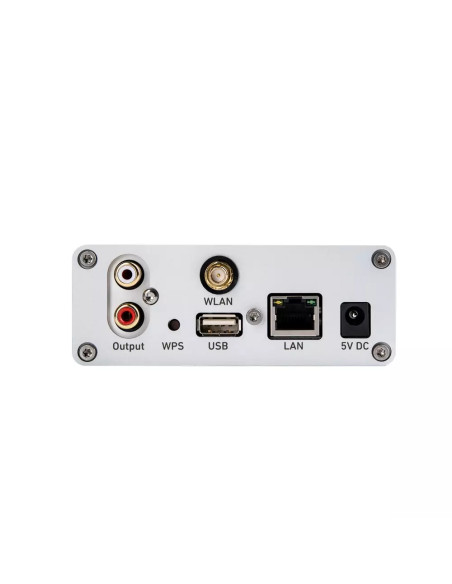

It is connected to the network with a LAN cable or via WLAN. It offers an additional USB port for docking harddisk drives or USB storage media. Beside an analog line level output, the network player also features a high-quality headphone output.

Features & Technology

The LINDEMANN streaming platform offers a studio master grade reproduction. Either through a LAN connection or wireless via WLAN. Due to WPS, integrating the device into your existing system is just a breeze. Moreover, the ARM core high-performance processor and the web update feature make the platform absolutely future-proof.

The LINDEMANN app is available for Android and iOS, both for smartphones and tablets. The album-oriented programming convinces by fluent browsing and an easy, intuitive operation. Our definitive highlight.

Technically speaking, the Limetree NETWORK is way ahead: all digital signals can be converted into DSD 256, a data format which is highly esteemed by audiophiles worldwide. This radical new approach also lets "normal" recordings in CD quality shine with an exceptionally good sound.

Via USB the Limetree NETWORK supports the connection of external CD drives and thus turns easily into a top-class CD player at little cost! And this, of course, plug-and-play; the drive is automatically recognized and integrated via the LINDEMANN app. Including control and CD text support.

The Limetree NETWORK is equipped with a high-quality headphone amplifier, but may also be connected directly to an amplifier or active loudspeakers via the line output on the rear side.

The Limetree NETWORK offers a Bluetooth function which enables a wireless music playback e.g. from smartphones or tablets. At the same time the A2DP Bluetooth audio transmission protocol ensures the very best sound quality.

A special highlight is our multi-room function which allows to run several streamers in different rooms separately or coupled. These are conveniently controlled via the LINDEMANN app.

The LINDEMANN app

The Limetree NETWORK is controlled almost exclusively via the newly designed LINDEMANN app which is available both for Android and iOS. Apart from the smartphone version, there is also a proprietary tablet version in the landscape mode. The app allows a fluent, intuitive browsing and searching. A new feature is the simultaneous display of browse view and play view. In addition you can also call up your current play queue. The album-oriented programming allows the playback of a complete album with just one push of a button!

In addition, the specially integrated multi-room function also allows to run several streamers in different rooms separately or coupled. The range of streaming services is diversified, with a clear focus on studio master quality and hi-fi subscriptions. Customers may choose between TIDAL, Qobuz, Deezer, HighResAudio and Spotify. Through our partner airable they will also get access to thousands of podcasts and radio stations worldwide.

Technology

The circuitry – designed around the powerful streaming platform – has been tuned for optimum signal quality. All music files are post-synchronized by an ultra precise FemtoClock. The data processed in this way are free from “jitter“, the most frequent cause of a poor digital playback quality. The sound is open, natural and follows the recording in its true sense. An extra gain in sound quality is provided by the option to convert any data into a 1-bit signal (DSD). The converter blocks are run in mono mode, each channel has its own D/A converter. For the output stage we use one of the best amp modules on the market which also cuts a very fine figure as a headphone amplifier.

For the power supply we use a high-quality “medical grade“ wall plug transformer which ensures a particularly good isolation from line disturbances. Owing to the elaborated onboard filtering and special voltage regulators, we were able to realize an exceptionally low-noise power supply with a ripple voltage below 10 µV.
