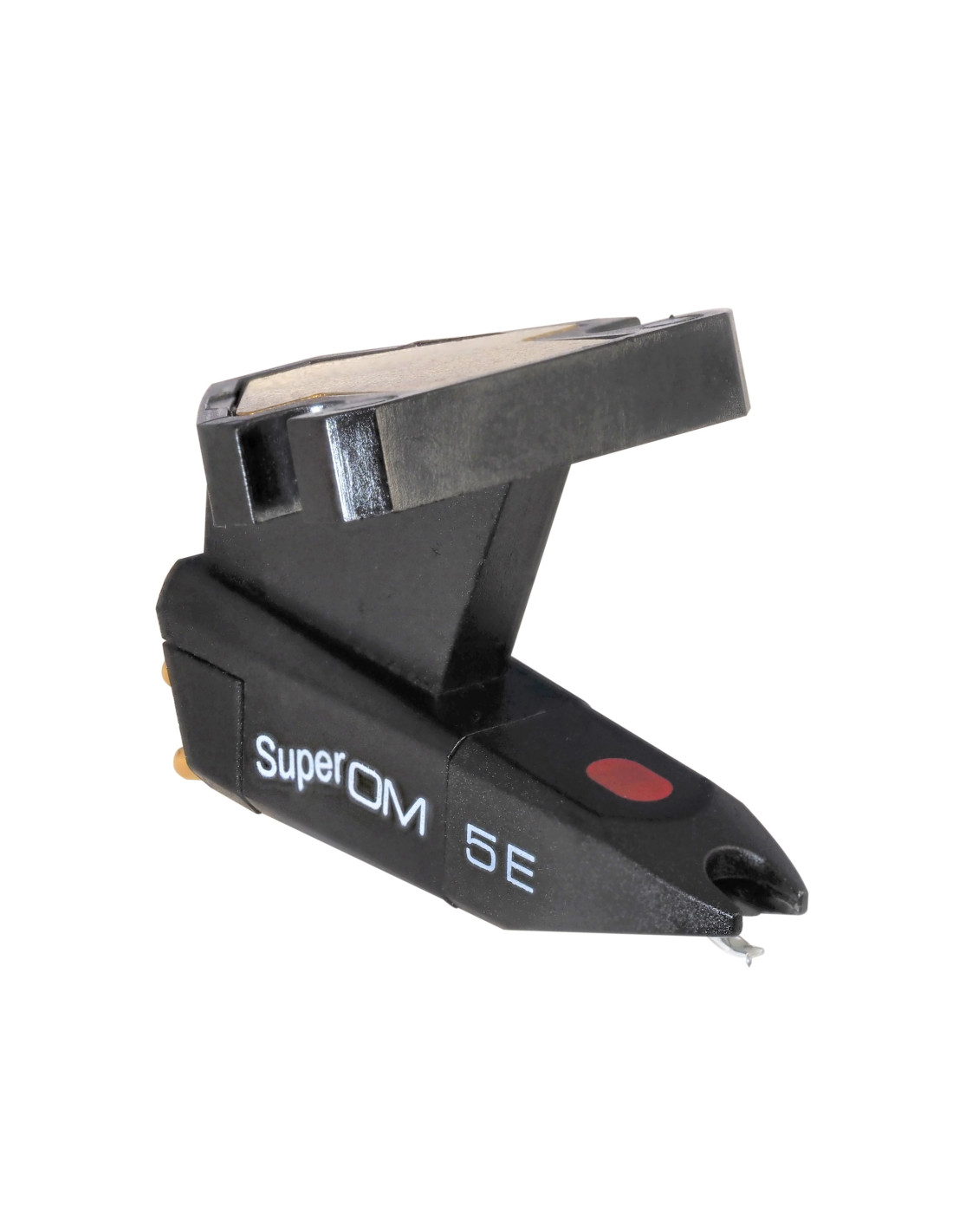

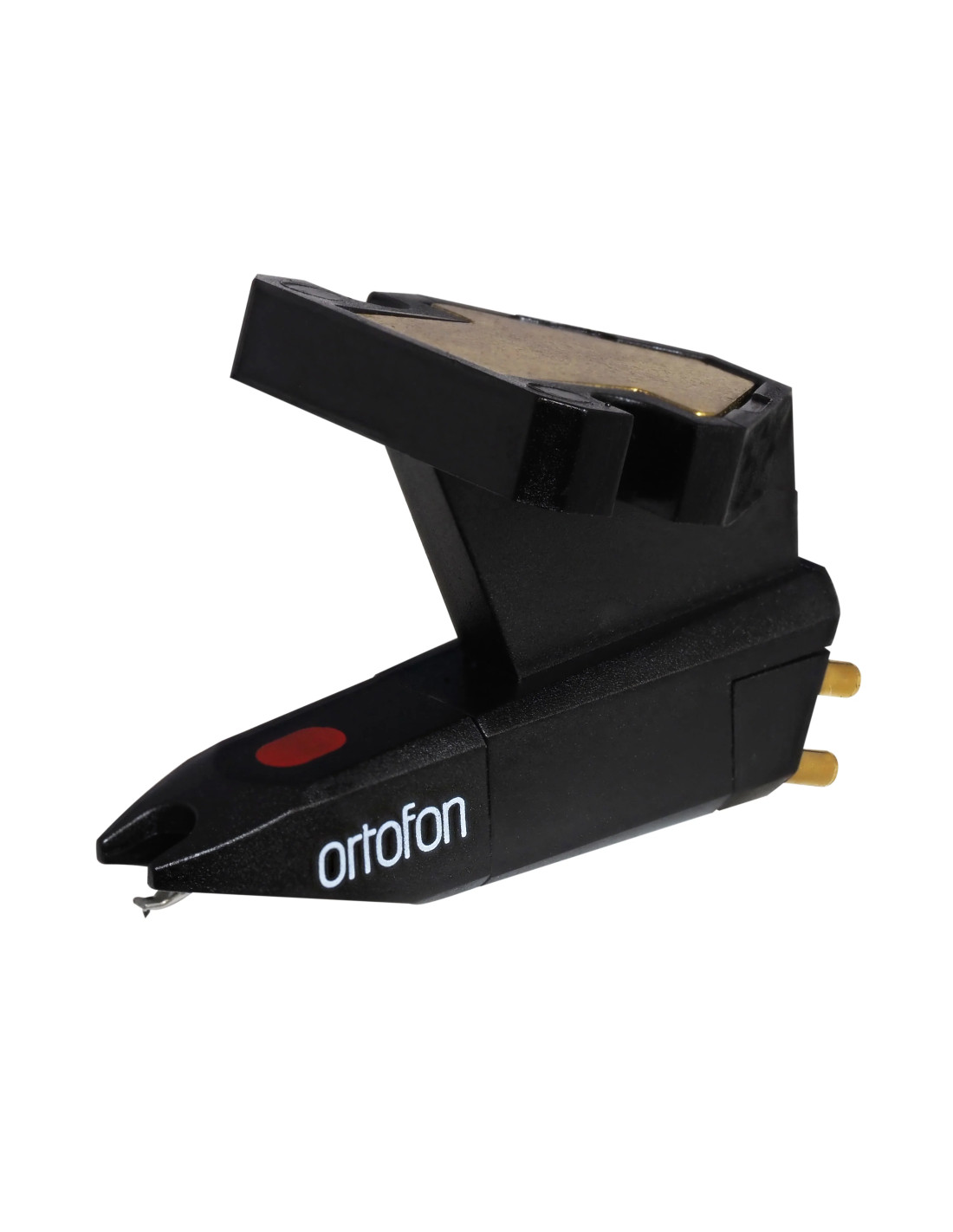

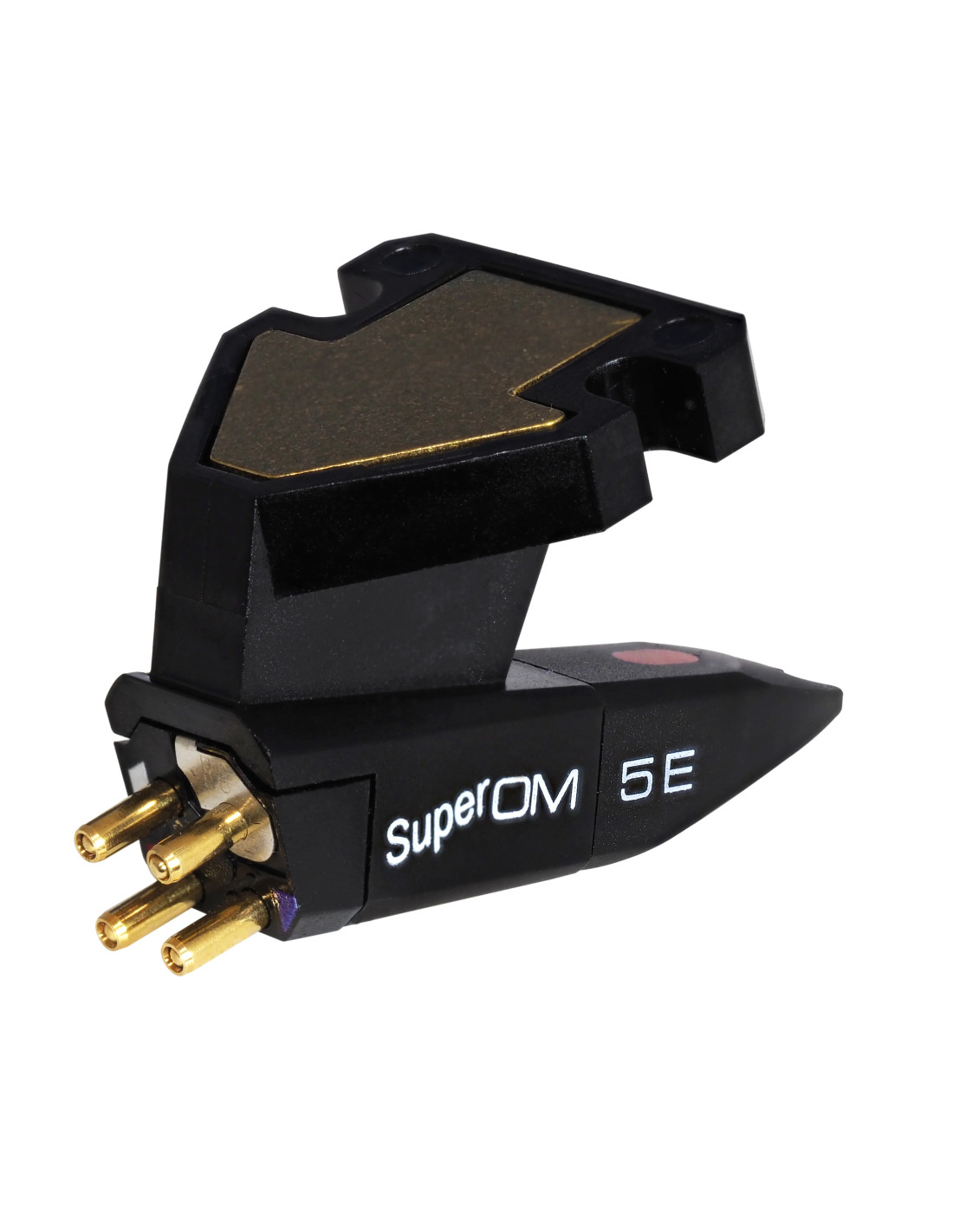

Ortofon Super OM 5

Name: Ortofon Super OM 5
Brand: Ortofon
SKU: 599
Price: 1150 SEK
Availability: PreOrder

Brand: Ortofon

kr1,150.00

Tax included

The Super OM 5E features improved lineraty, higher channel seperation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Description
Product Details

Specifications

Channel balance at 1 kHz

1.5 dB
Output voltage at 1 kHz, 5cm/sec

4 mV
Channel separation at 1 kHz

22 dB
Frequency response 20 Hz - 20 kHz

20-22.000 Hz + 3 / -3
Tracking ability at 315 Hz

60 µm
Compliance, dynamic, lateral

20 µm/mN
Stylus type

Elliptical
Stylus tip radius

r/R 8/18 µm
Tracking force range

1.5-2.0 g (15-20 mN)
Tracking force, recommended

1.75 g (17.5 mN)
Tracking angle

20°
Internal impedance, DC resistance

1 kOhm
Cartridge colour

Black/Black
Cartridge weight

incl. extra weight 5 g, excl. extra weight 2.5 g
Recommended load resistance

47 kOhm
Internal inductance

580 mH
Recommended load capacitance

200-500 pF
