- New

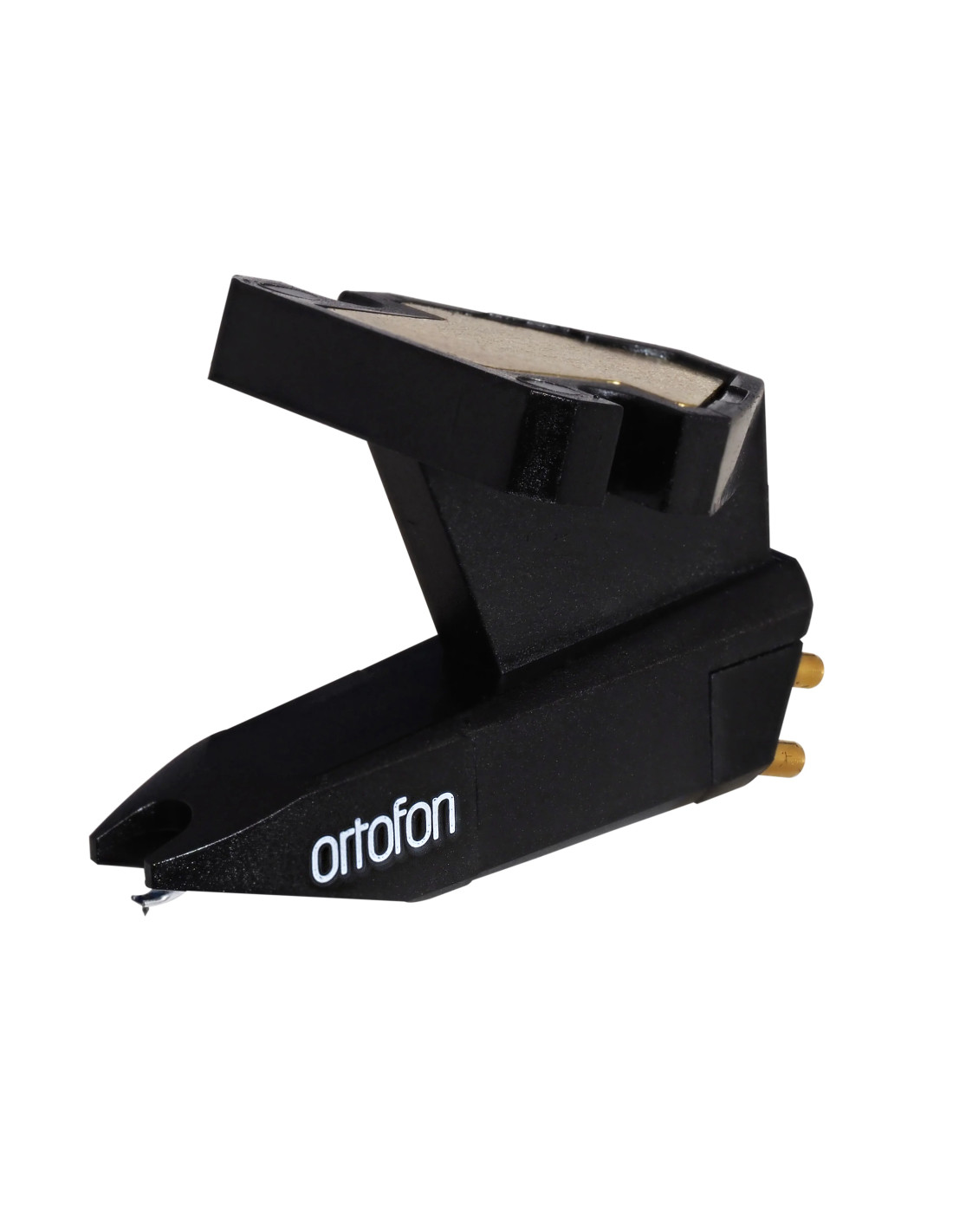

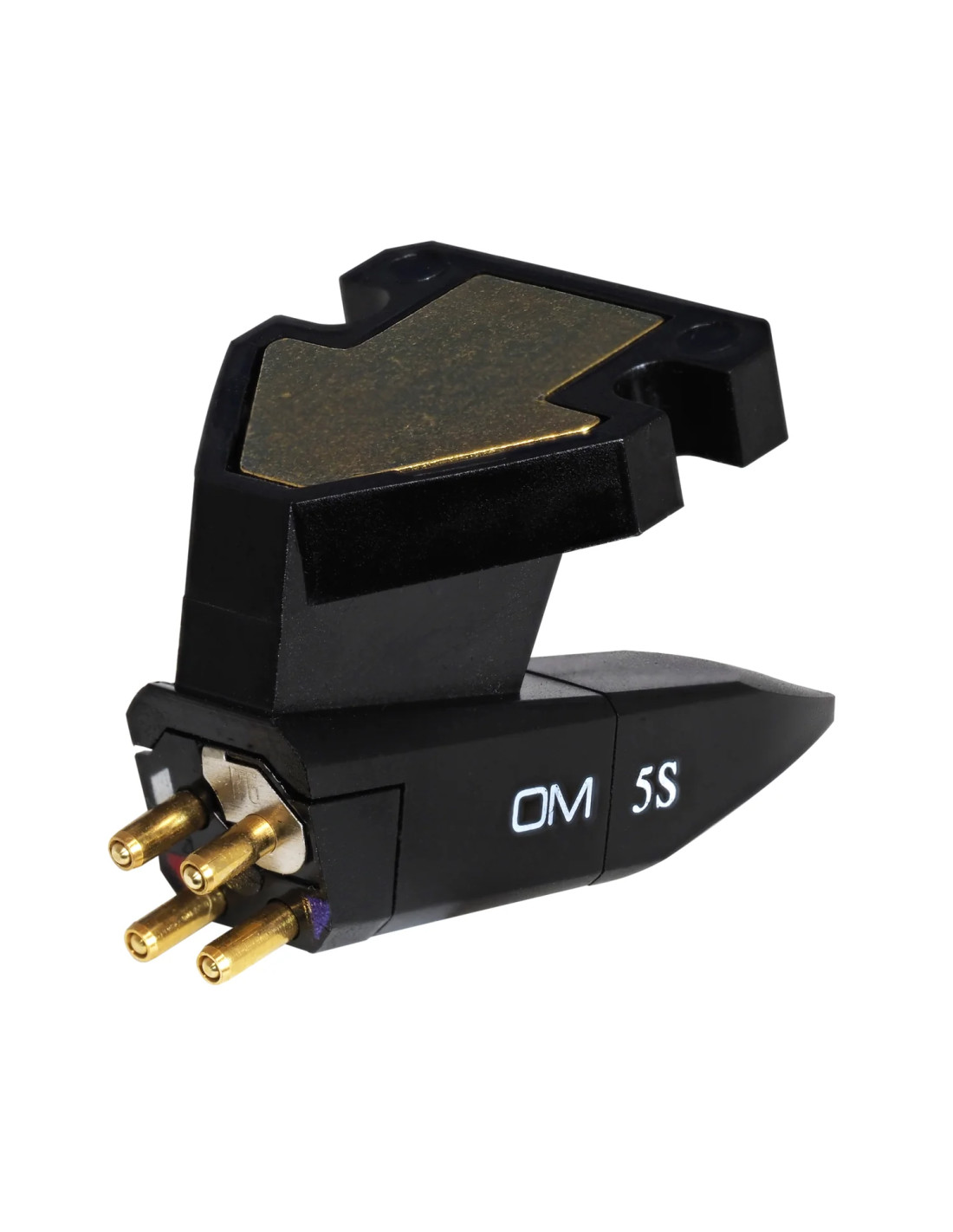

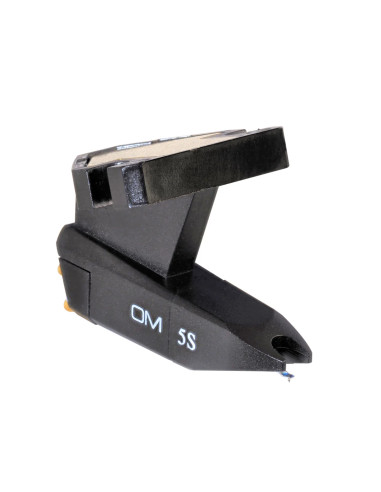

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.
Specifications
Channel balance at 1 kHz
2 dB
Output voltage at 1 kHz, 5cm/sec
4.5 mV
Channel separation at 1 kHz
20 dB
Frequency response 20 Hz - 20 kHz
20-20.000 Hz
Tracking ability at 315 Hz
60 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Spherical
Stylus tip radius
R 18 µm
Tracking force, recommended
1.8 g
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Cartridge colour
Black/Black
Cartridge weight
incl. extra weight 5 g, excl. extra weight 2.5 g
Recommended load resistance
47 kOhm
Internal inductance
450 mH
Recommended load capacitance
200-500 pF
Replacement stylus
Stylus 5S
