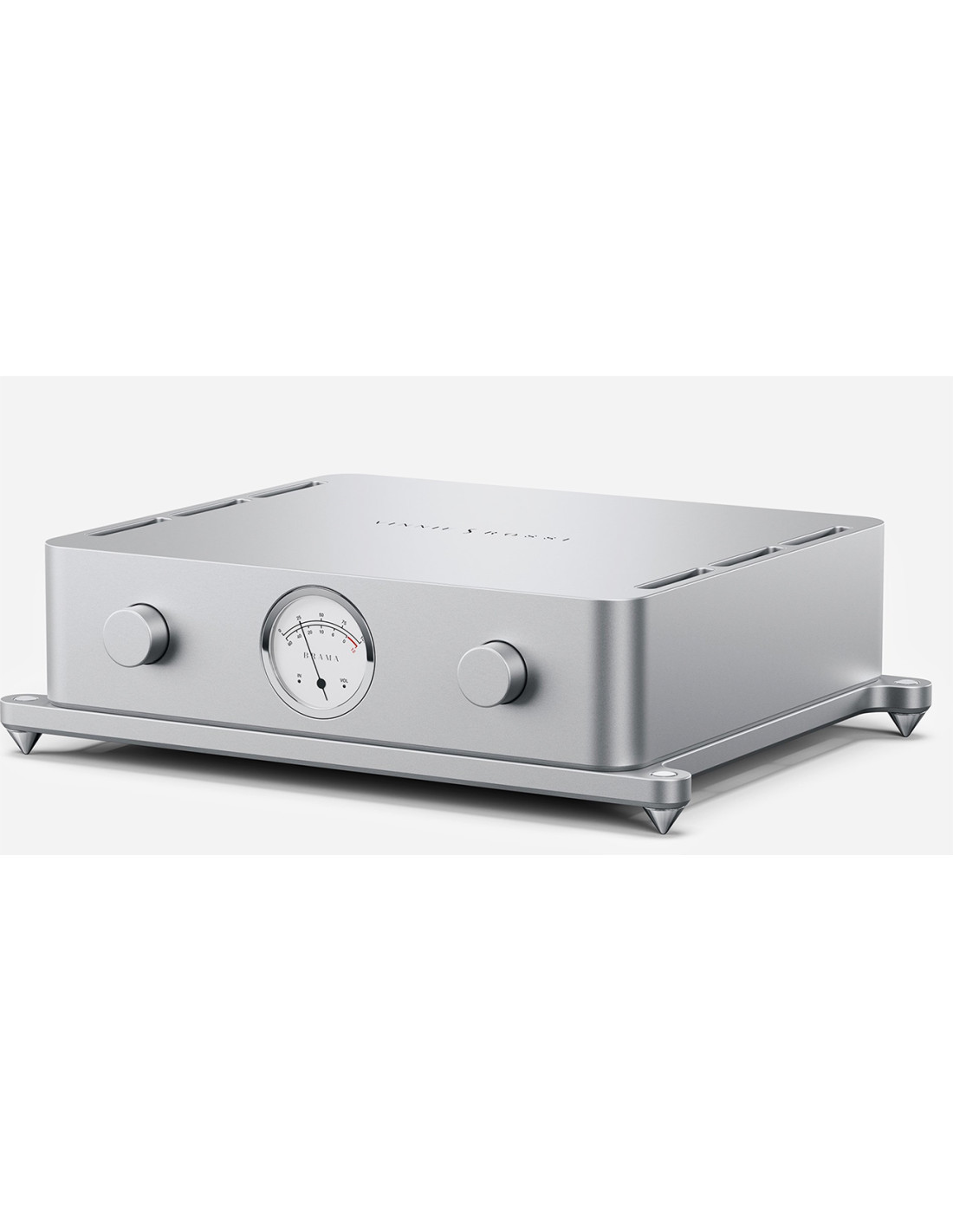

Vinnie Rossi Brama Mk2 Pre

Specifications

• AC Mains Input: 100-264Vac (50-60Hz)
• THD+N: Less than 0.1% (20Hz – 20kHz)
• Frequency Response: 5Hz – 100kHz (+/- 0.5dB)
• Signal-to-Noise Ratio: Greater than 100dB
• Input Impedance: 20k ohm
• Gain: Adjustable (0dB, +6dB, +12dB)
• Output Voltage: 10Vrms maximum (balanced outputs)
• Output Impedance: Less than 100 ohms
• Triodes: Western Electric WE300B (matched pair)
• IEC Jack Fuse: 4A 250V (5x20mm), Fast Blow, Ceramic Type
• Power Consumption (Idle): 45W
• Product Weight: 46 lbs. (20.9 kg)
• Product Dimensions (including knobs, jacks, feet): 18.7″ x 15″ x 5.5″ (475mm x 381mm x 140mm)
• Remote Dimensions: 6″ x 2″ x 0.5″ (150mm x 50mm x 12.5mm)
• Shipping Weight: 69 lbs (31.3 kg)
• Shipping Carton Dimensions: 25″ x 21″ x 11″ (635mm x 533mm x 279mm)

Additional Features

_________________________________

Controls

• Volume Control: 100-step resistor ladder topology
• Input Select: Choose from 5 inputs
• Gain: Adjustable (0dB, +6dB, +12dB)
• Balance: 12-step adjustment from left to right
• Memory Inputs: Save settings for Gain and Balance per input
• Home Theater Bypass Mode: Easily switch to this mode

_________________________________

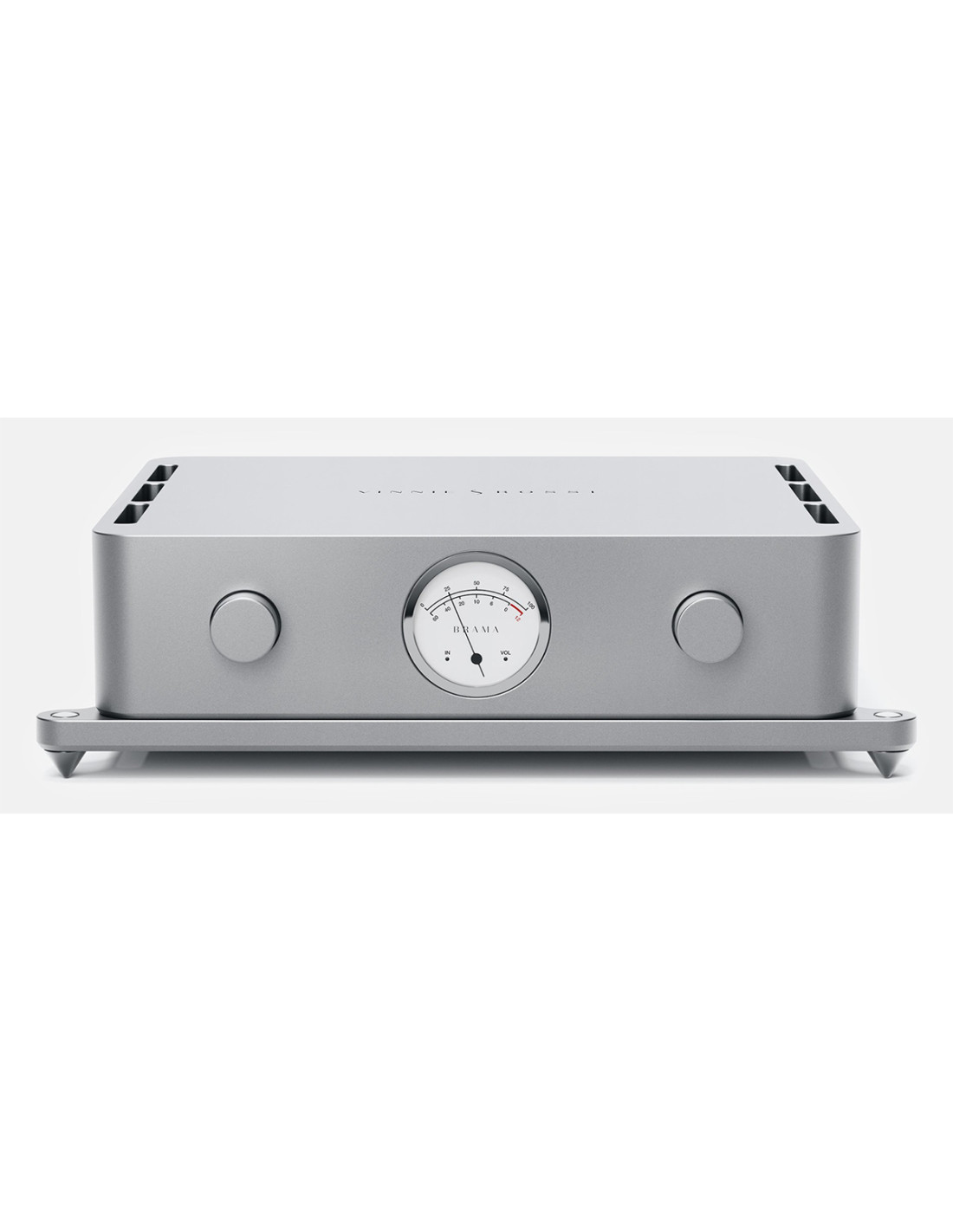

Front Panel

• Left Knob: 24-position Swiss rotary encoder with magnetic sensing; push-button for power On/Off
• Right Knob: 48-position Swiss rotary encoder with magnetic sensing; push-button for mute and Volume/VU mode select
• VU Gauge
• Gauge Glass: Made of sapphire crystal

_________________________________

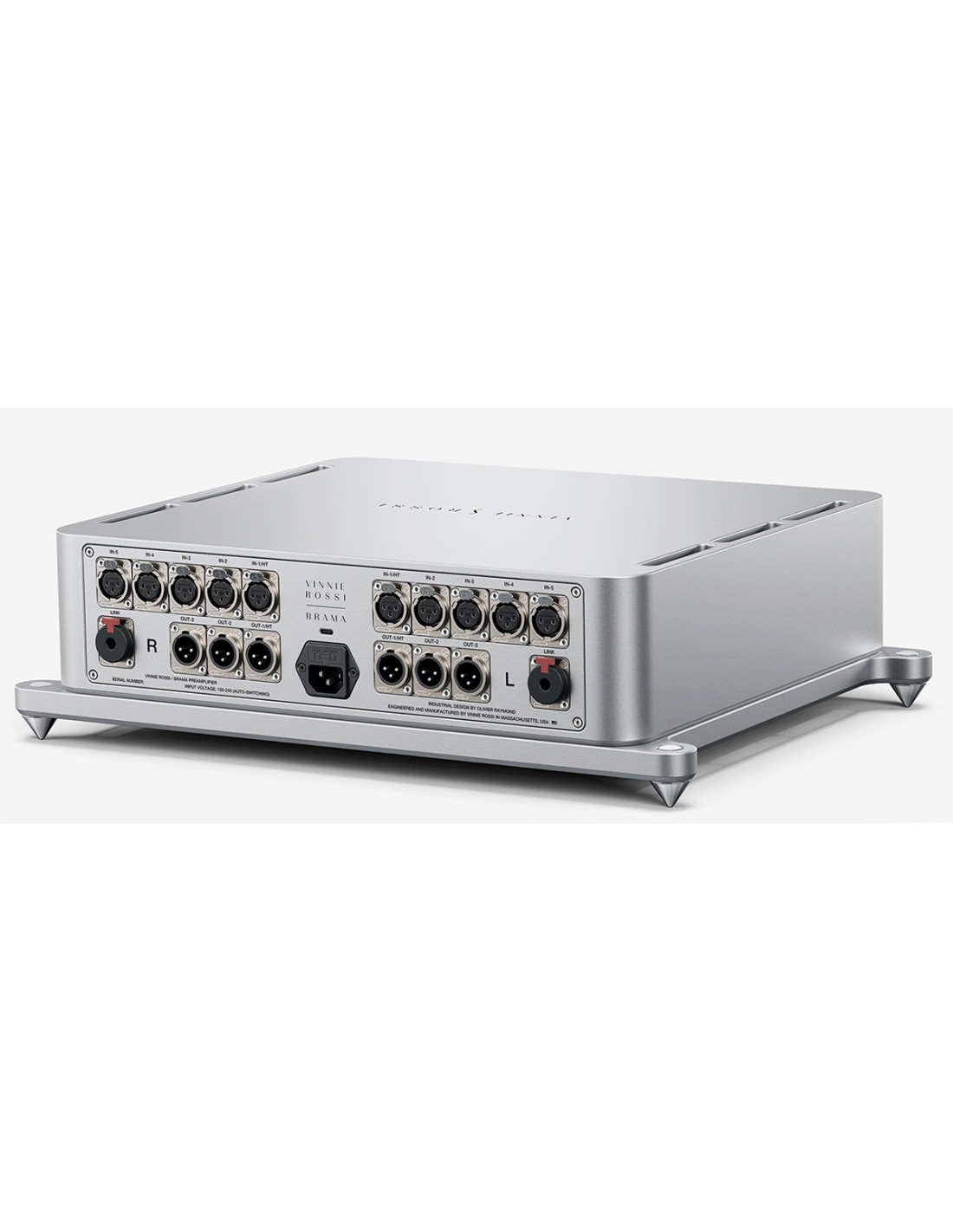

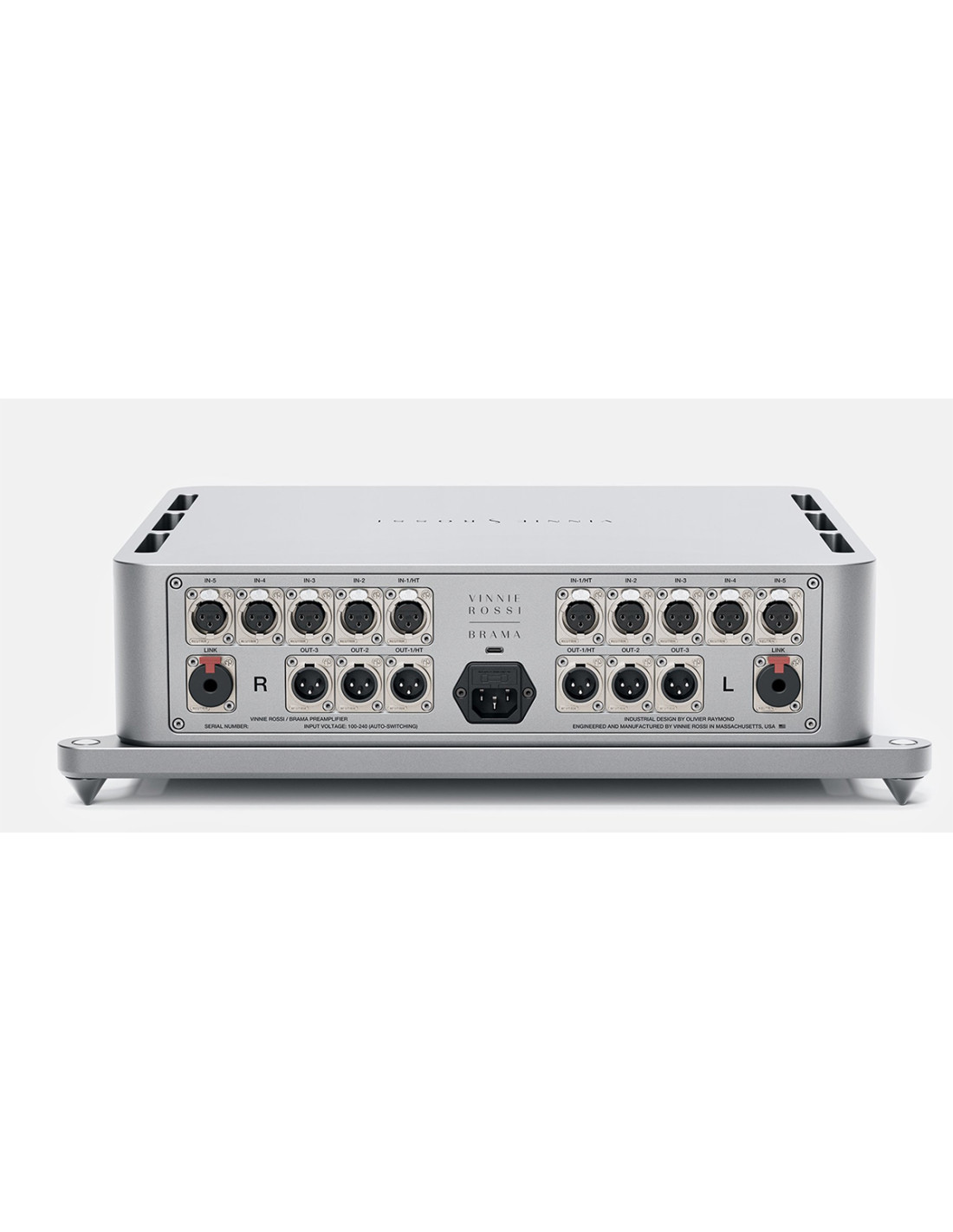

Rear Panel

• Line-Level Inputs: 5 sets of XLR inputs (RCA-to-XLR adapters included)
• Line-Level Outputs: 3 sets of volume-controlled XLR outputs
• USB-C Jack: For firmware updates
• Brama Link: 1 pair for trigger output or interfacing with Brama Monoblock Power Amplifiers
• AC Input Jack: IEC 320-C14 with built-in fuse holder

_________________________________

Remote

• Display: 2.4” high-resolution LCD with sapphire glass
• Connectivity: Bluetooth connection to Brama
• Battery: 3.7V Li-ion rechargeable (user-replaceable)
• Charging: USB-C jack for battery charging and firmware updates
• Material: Machined from a solid block of aluminum

_________________________________
