PRODUKTBLAD FRÅN LEHMAN
Tekniska data:

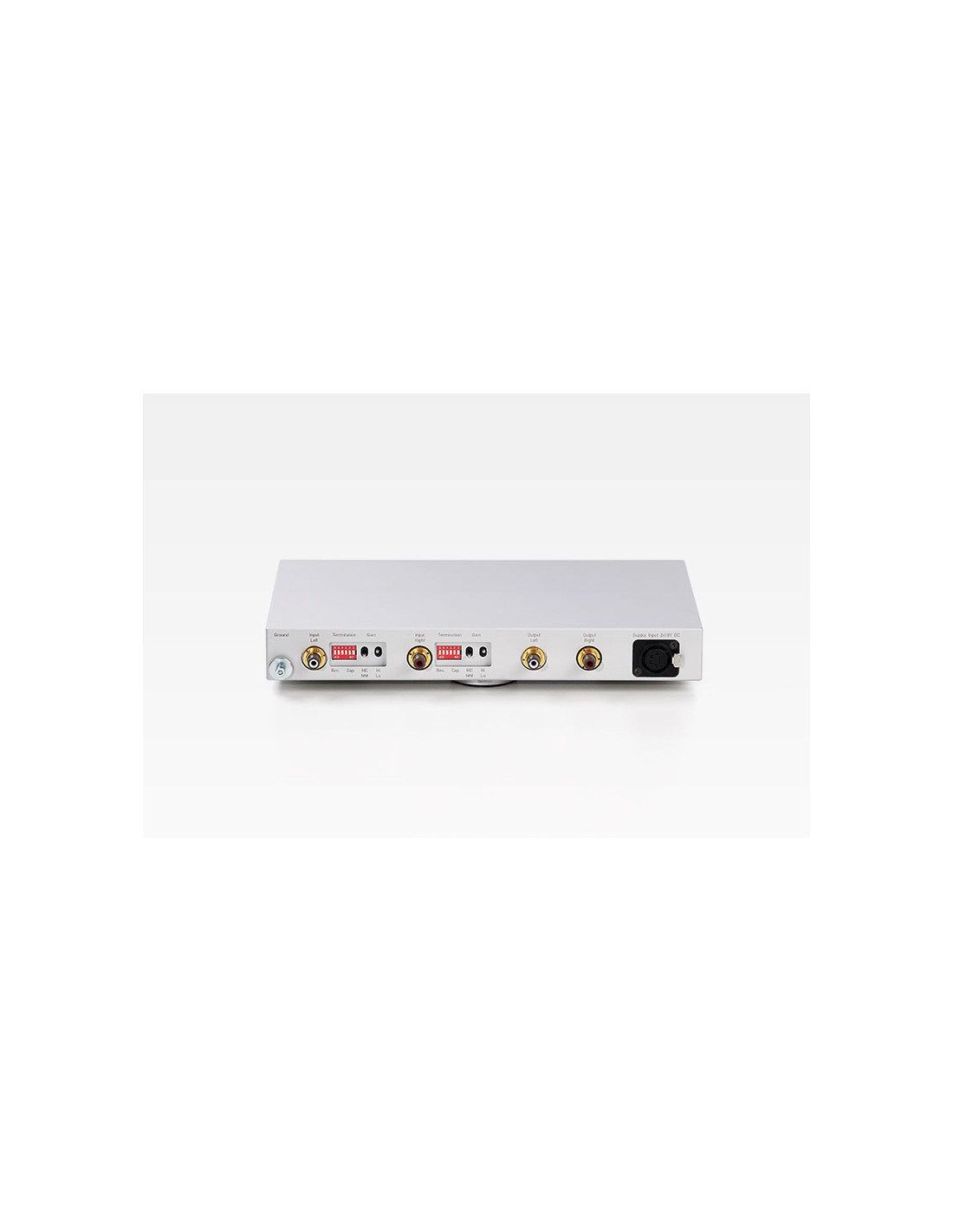

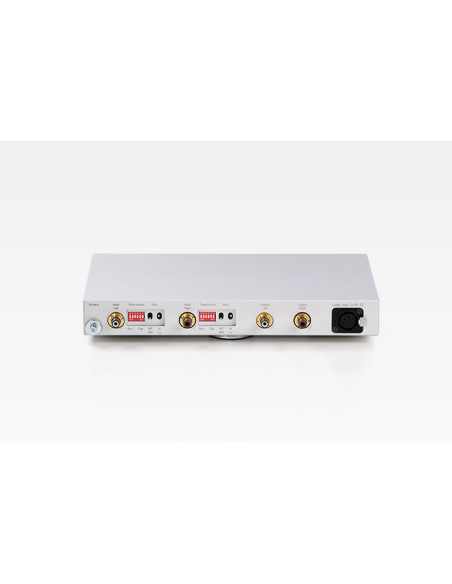

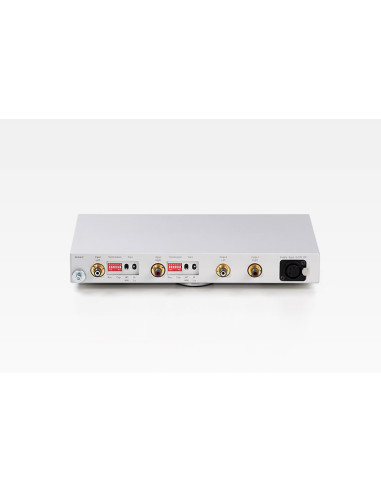

Silver Cube
Sensitivity for output level 775 mV/0 dBu (with activated high gain switch)
Gain 1 kHz
Maximum input level 1 kHz
Signal to noise ratio (RMS unweighted) MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz
MM: 46 dB; MC: 66 dB
MM: 50 mV; MC: 5 mV
MM: 78 dB; MC: 69 dB
Gain 36 dB, 46 dB, 56 dB, 66 dB
Channel separation > 80 dB at 10 kHz
Input impedance 47 kohms, 1 kohm, 100 ohms
1 x custom load
Output impedance 5 ohms
Input capacitance 47 pF to 1,370 pF
Channel mismatch typ. max. 0.1 dB
Bass filter 50 Hz, 6 dB/oct.
Power consumption app. 15 VA
Outer dimensions W x D x H Audio section: 300 mm x 195 mm x 48 mm
Power supply: 112 mm x 312 mm x 80 mm
Weight Audio section: 2.25 kg
Power supply: 2.8 kg
