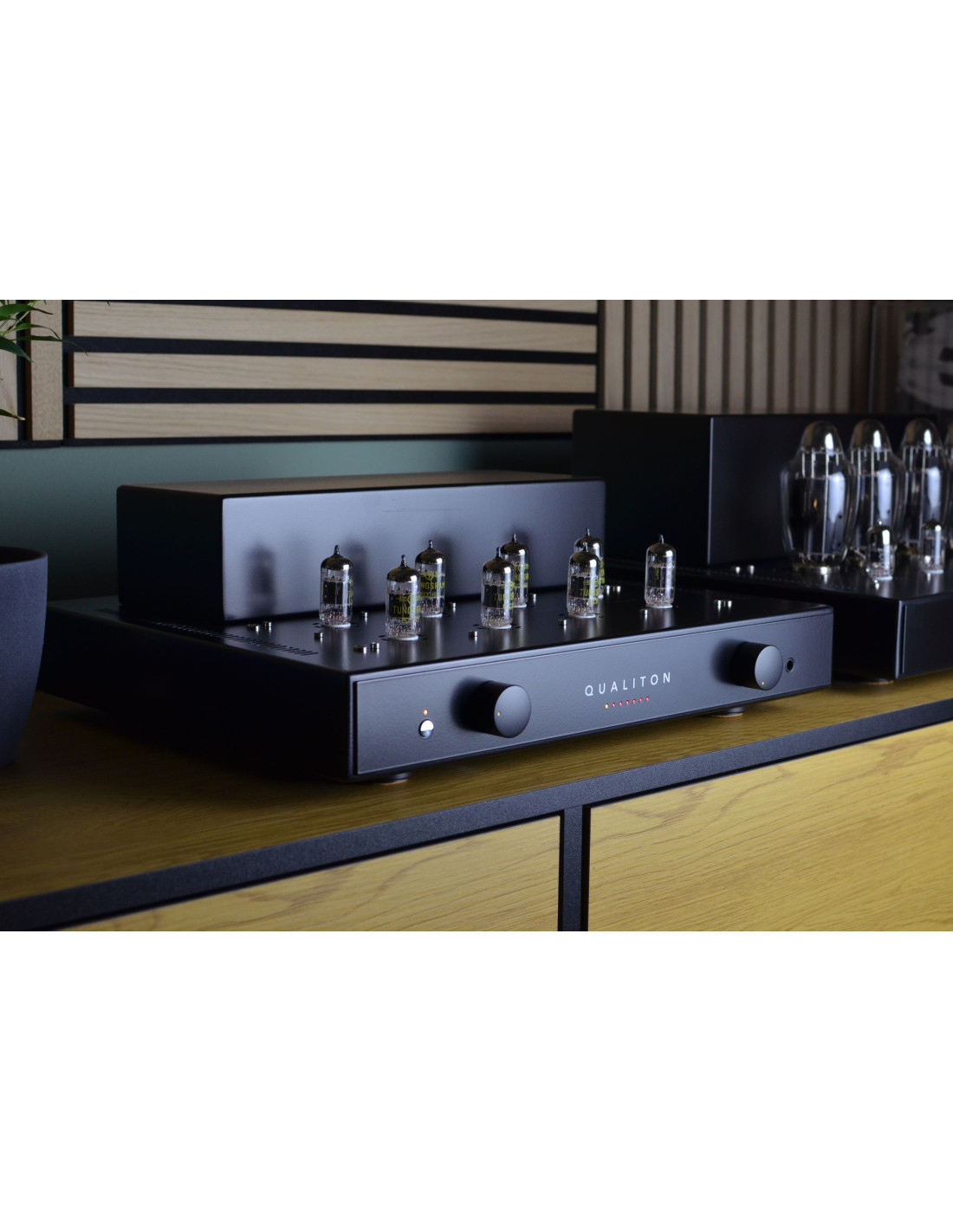

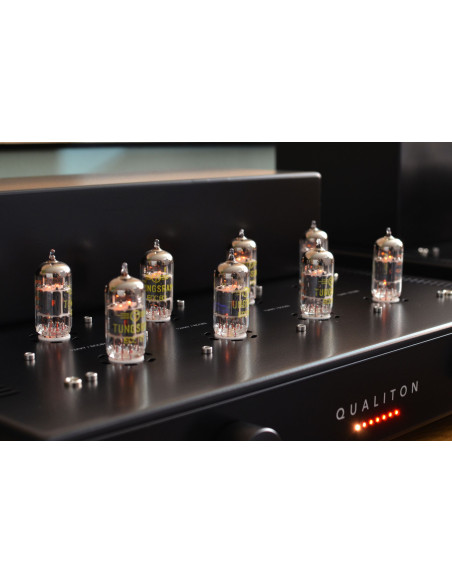

Qualiton Audio C200 Vacuum Tube Preamplifier

Tech Specs

Line Section

Nominal Output Level

4 Volts

Input Sensitivity

1 Volt to nominal output level

Max. Input Signal

10 Volts

Frequency Response

4 Hz - 300 kHz (-1 dB)

Total Harmonic Distortion

< 0.05%, (f = 1 kHz)

Signal-to-Noise Ratio

> 100 dB below nominal output

20 Hz - 22 kHz bandwidth, without weighting filter

> x dB below rated output

with A-weighting filter

Input Impedance

10 000 Ohms

Gain

+12 dB

Phono Section

Nominal Output Level

4 Volts

Input Sensitivity

5.7 millivolts to nominal output level

Max. Input Signal

70 millivolts

Frequency Response

20 Hz - 20 kHz (-0.5 dB)

Total Harmonic Distortion

< 0.1%, (f = 1 kHz)

Signal-to-Noise Ratio

> 70 dB below nominal output

20 Hz - 22 kHz bandwidth, without weighting filter

> x dB below rated output

with A-weighting filter

Input Impedance

47 000 Ohms

Gain

+57 dB

General

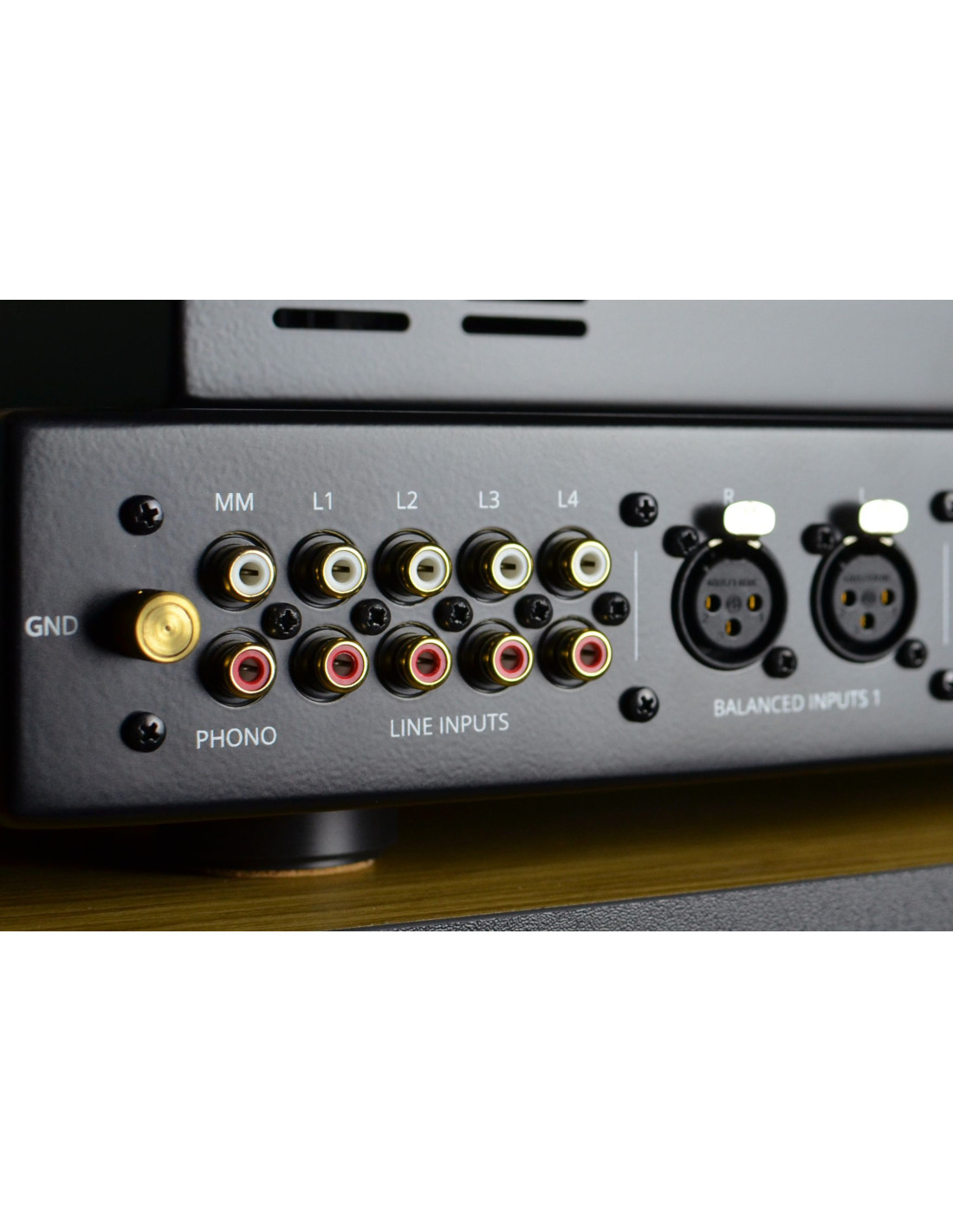

Number of Inputs

4 unbalanced line level inputs (LINE 1-4)

2 balanced line level inputs (BALANCED INPUTS 1-2)

1 PHONO level input (PHONO MM)

Number of Outputs

2 unbalanced line level outputs (LINE, SUB)

1 balanced line level output (BALANCED OUTPUTS)

1 HEADPHONE output per channel

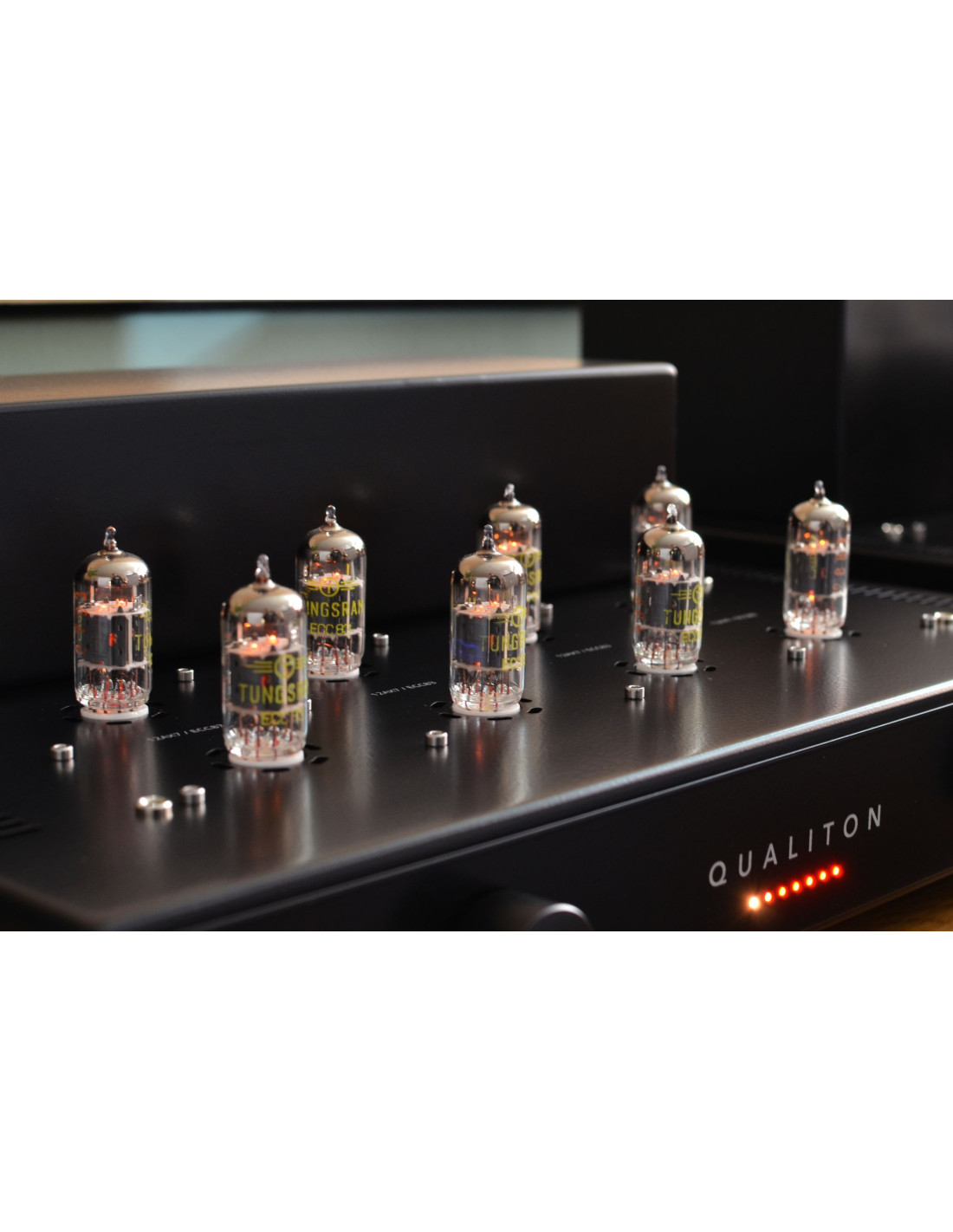

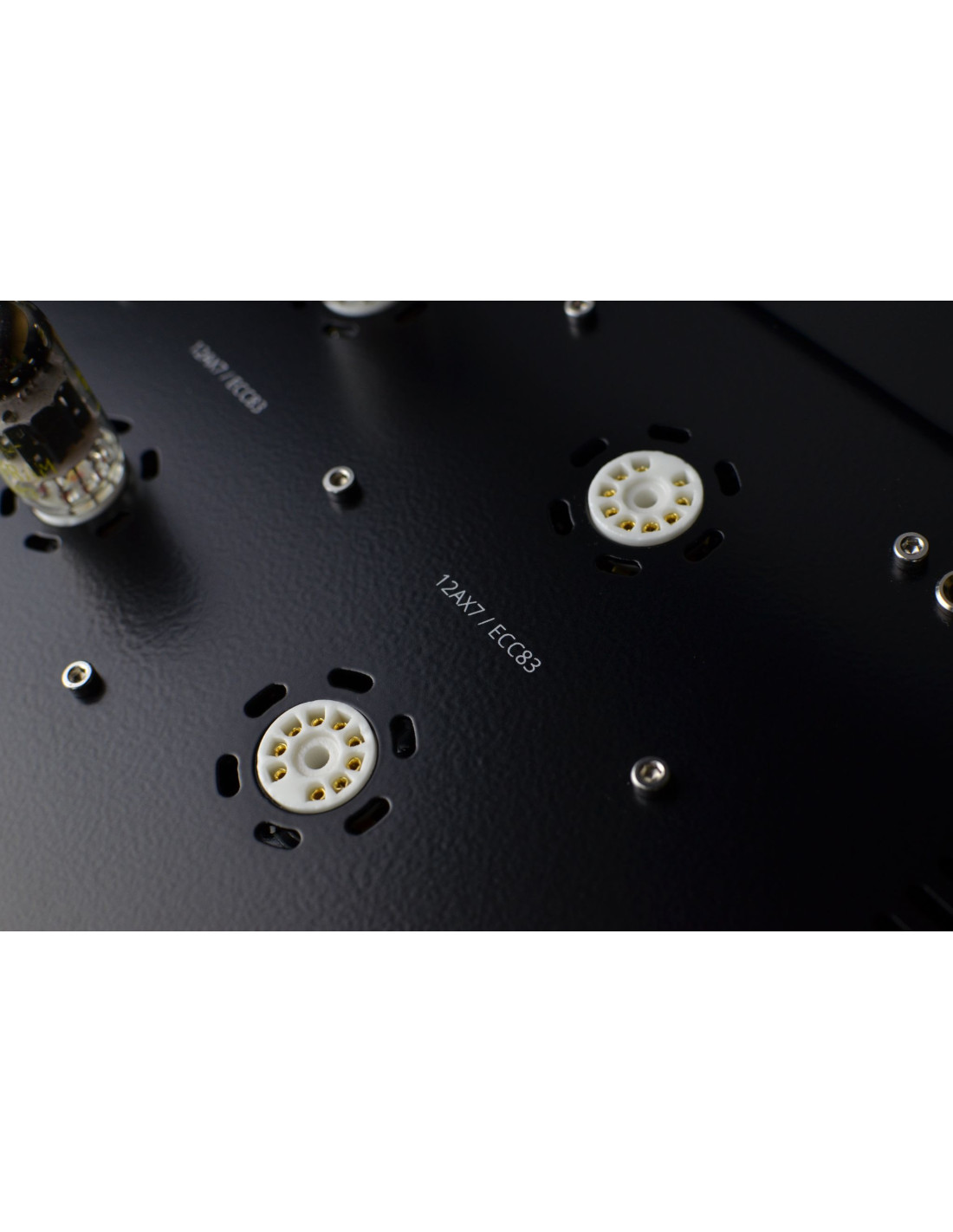

Vacuum Tubes

8 x 12AX7 / ECC83

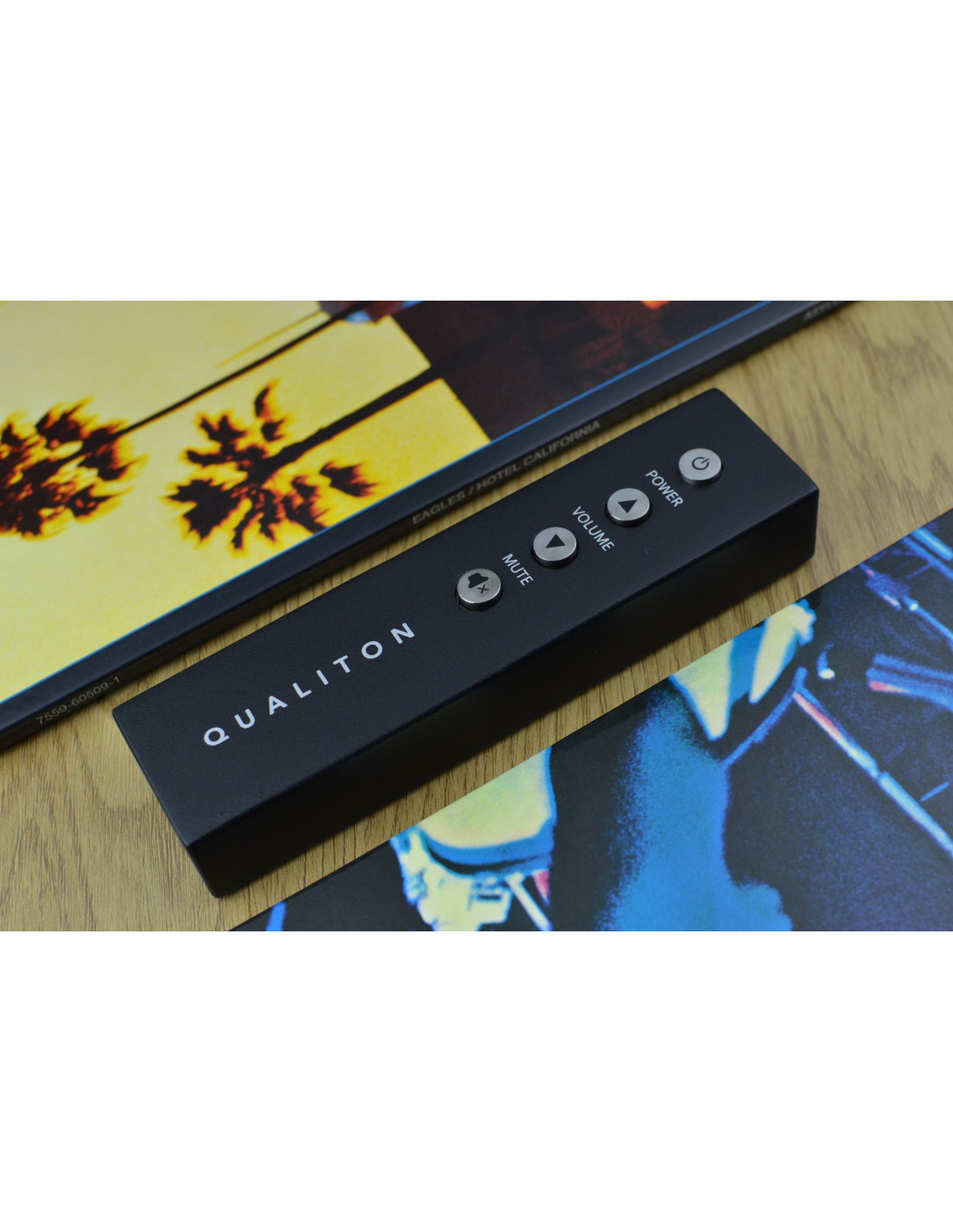

Remote Control

Power On / Stand-by

Volume Up

Volume Down

Mute

Power Requirement

100 W max

Weight

10.4 kg

Dimensions

L 40 cm x W 43 cm x H 16 cm
