72 W per channel into 8 Ω / 90 W into 6 Ω
High quality moving magnet phono stage
High performance Rega DAC circuit for digital inputs
2 x Digital inputs - 1 x optical and 1 x Co-Axial
Headphone output
4 Line level inputs
New custom design case
Thermal Cut-Out
Bringing your music to life

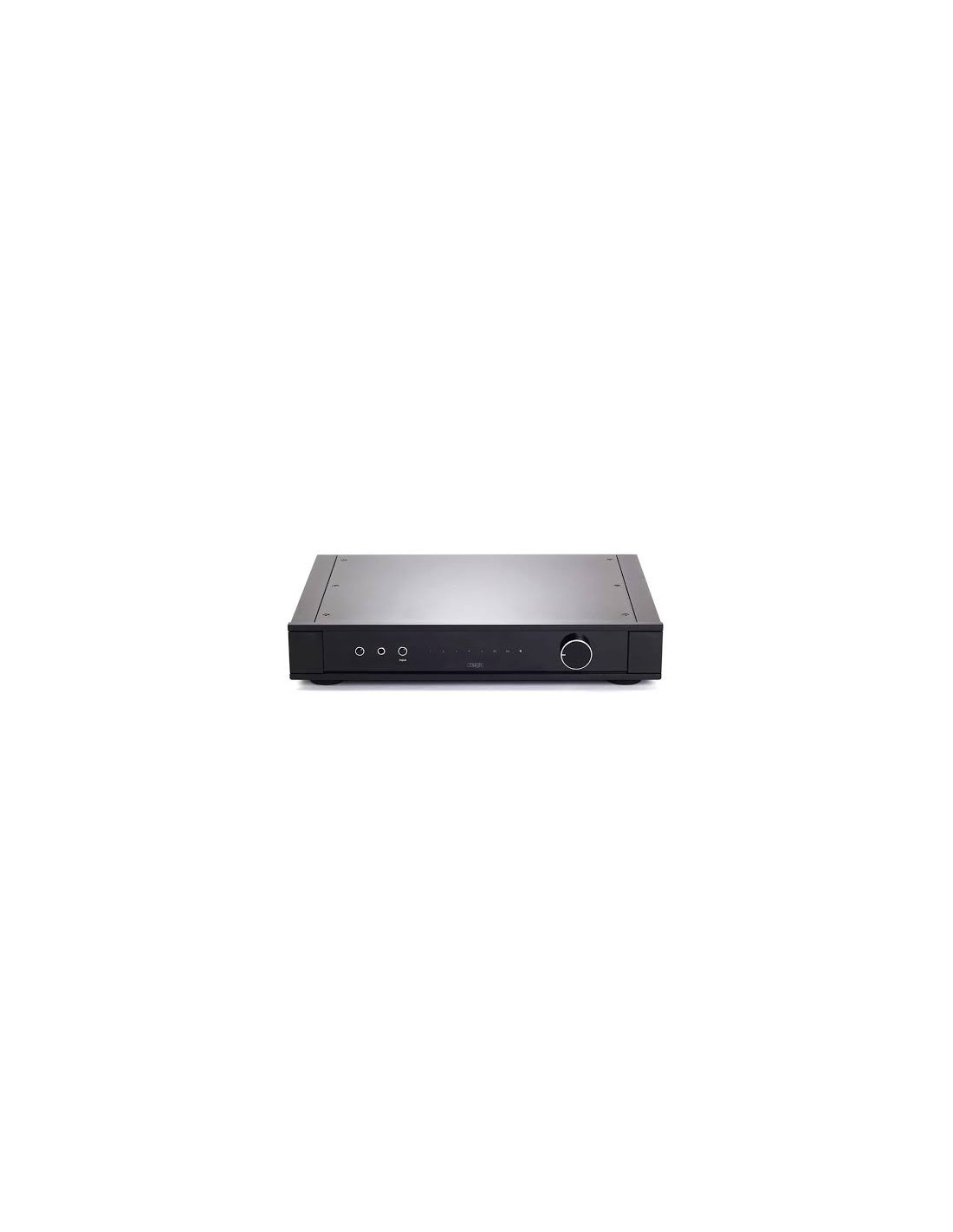

The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage, you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.
TECHNICAL SPECIFICATIONS
Power Amplifier Output (at rated 230/115 V Supply voltage): 72 W into 8 Ω90 W into 6 Ω
Dimensions (W × H × D): 432 x 82 x 340 (D includes loudspeaker terminals)
Weight: 11 Kg
Supported Sampling Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192kHz
Supported Bit Depths: 16 to 24 bit
Power Consumption: 250 W at 1dB below clip into 8Ω
Output Sensitivity (at rated inputs): Record Output 164mV. Pre-amplifier Output 625mV
