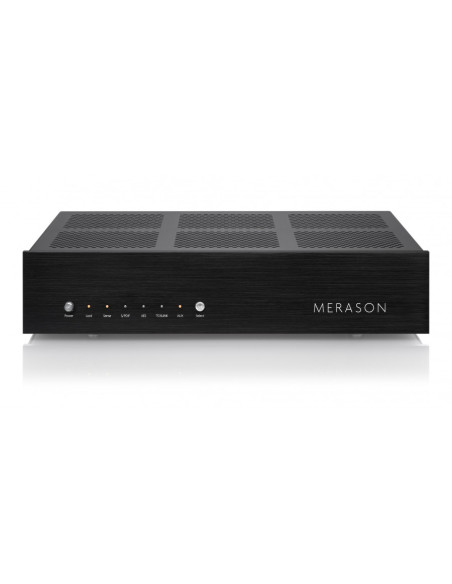

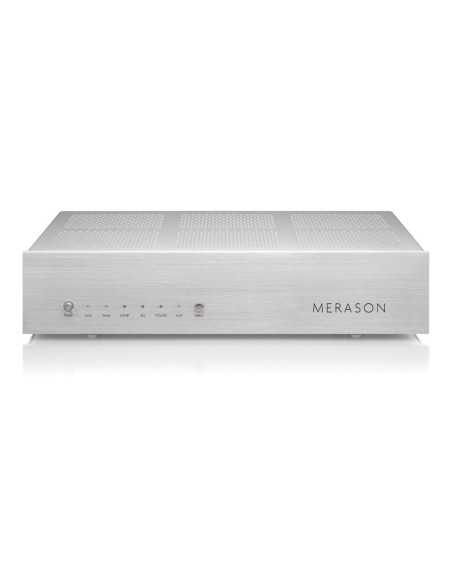

Merason DAC-2

Från första lyssningen feb -26: - - - "Man känner sig helt trygg då man spelar svåra låtar eller vill testa gränser.

Vi har aldrig varit så nära att få innertaket att rasa ned som idag. Helt vettlöst vad djup och kontroll den här DAC:en besitter!

Ungefär så. Den blir din för 145 000kr. Tack Daniel, för kompetensen och integriteten. Det här blir en succé!"

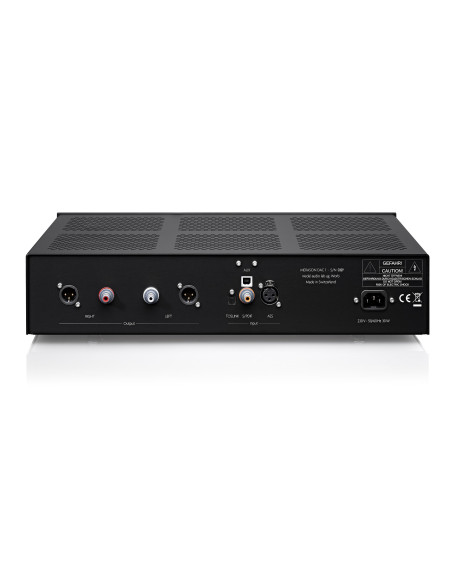

Input signal processing: The DAC2 has one USB, one RCA, one Toslink and one AES input. The USB input is based on Amanero technology and ensures a low-jitter music signal thanks to two precise oscillators, which is then galvanically isolated by capacitive isolator components. The signals arriving at the other inputs are also galvanically isolated and de-jittered by means of transformers. This guarantees that no external interference can affect the sensitive signal.

Digital-to-analog conversion: The task of digital-to-analog conversion is performed by two 1794A converter modules from Burr Brown. For a 5 dB improvement in dynamic range, each channel has its own device. The analog current signal is elaborately converted into a voltage signal in a discrete setup, which is buffered in Class A technology and routed to the output. The DAC1 is fully balanced, i.e. a total of four independent channels are implemented from the two converter modules to the output.

Power supply: Each functional unit has its own power supply, and in total there are twelve of them. Two output channels each are supplied by a separate linear supply with an oversized transformer.

Structure: The sound influence of components and circuit variants as well as various layouts were thoroughly tested in countless sessions by experienced listeners. This applies in particular to capacitors, voltage regulators, converter components, transistors, resistors, signal processing, I/V converters and output stages.

Made in Switzerland: The manufacture of the housing, the front panel and the control knobs and the printing, component placement, assembly, commissioning and inspection are carried out exclusively in Switzerland.

SPECIFICATIONS

Output: max. 3 V RMS (balanced), max. 1.5 V RMS (unbalanced)

Frequency Response: 20 Hz to 20 kHz +/- 0.3 dB

THD+N: < 0.006 %

SNR: > 120 dB

DAC: twice BurrBrown 1794A, discrete I/V stage

Power Supply: 230 V or 115V (one of them) AC / 50 to 60 Hz, 30 W.

OPERATION

Ambient temperature 10°C to 30°C, 50°F to 86°F

Humidity max. 80 %, non-condensing

During operation, the device heats up by approx. 20 K compared to the ambient temperature.

INPUT FORMAT

44.1 kHz@16 bit, 44.1 kHz@24 bit

48 kHz@16 bit, 48 kHz@24 bit

88.2 kHz@24 bit

96 kHz@24 bit

176.4 kHz@24 bit (USB)

192 kHz@24 bit.

DIMENSIONS

Width: 45 cm, 17.7 In

Height: 10 cm, 3.9 In

Depth: 29 cm, 11.4 In

Weight: 8kg, 17.6 lbs (11 kg, 24.3 lbs with stainless steel front)
