EGENSKAPER

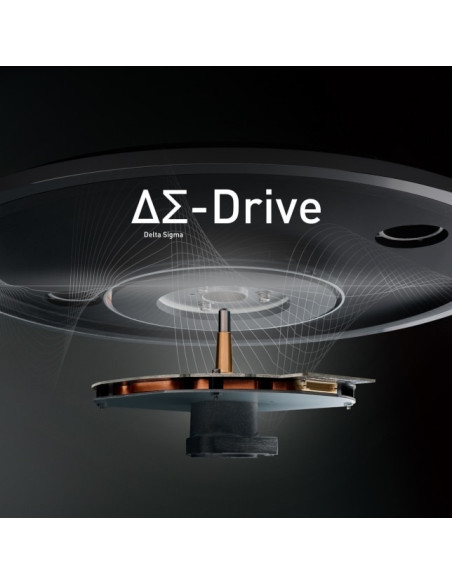

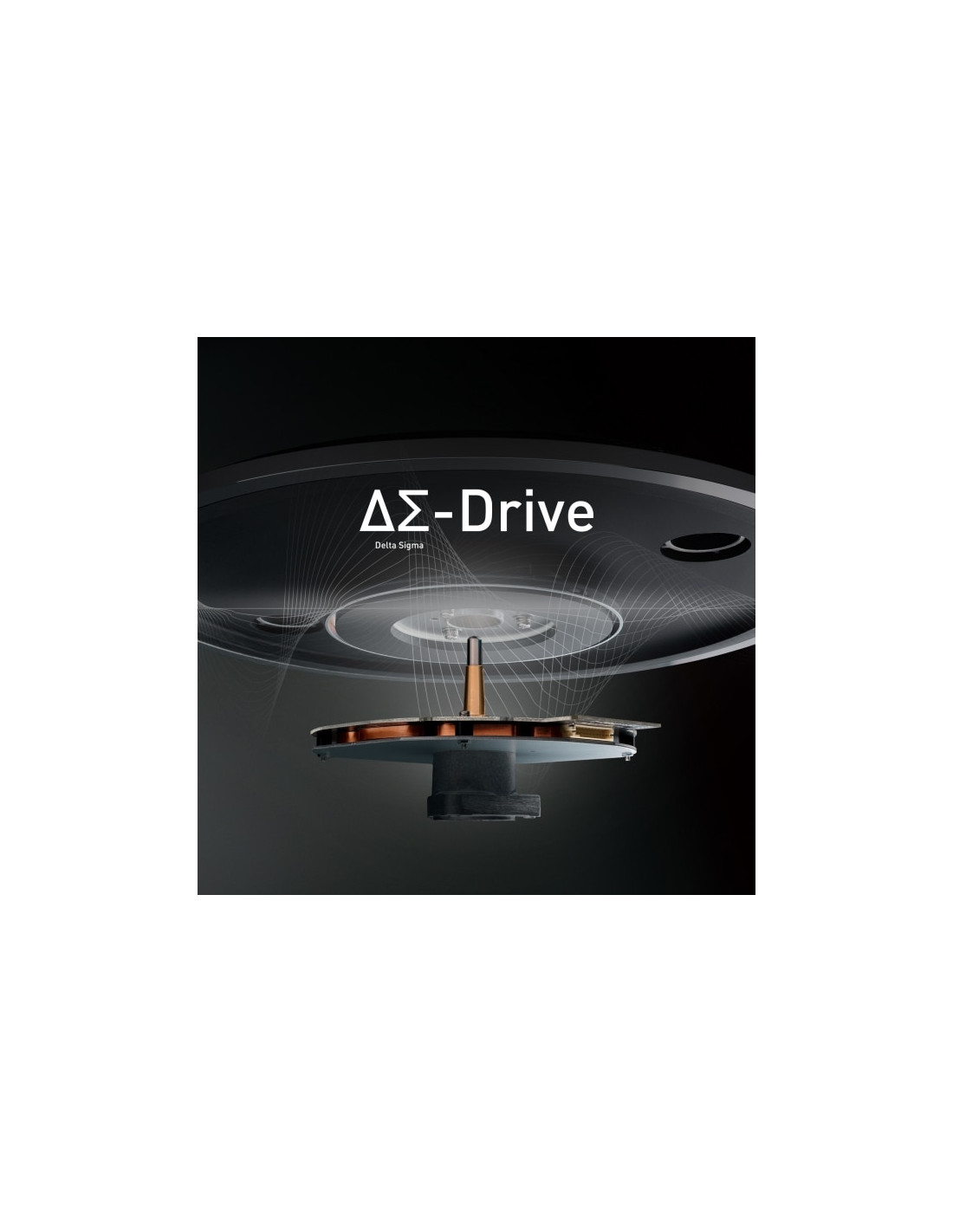

- Drive Method: Direct Drive

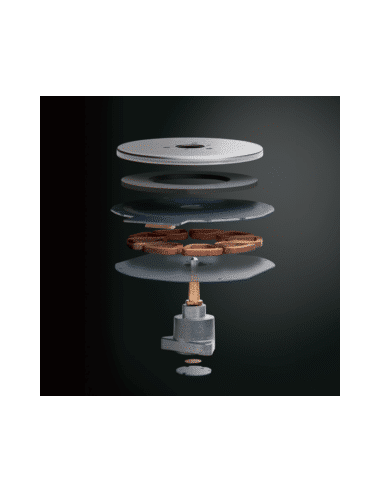

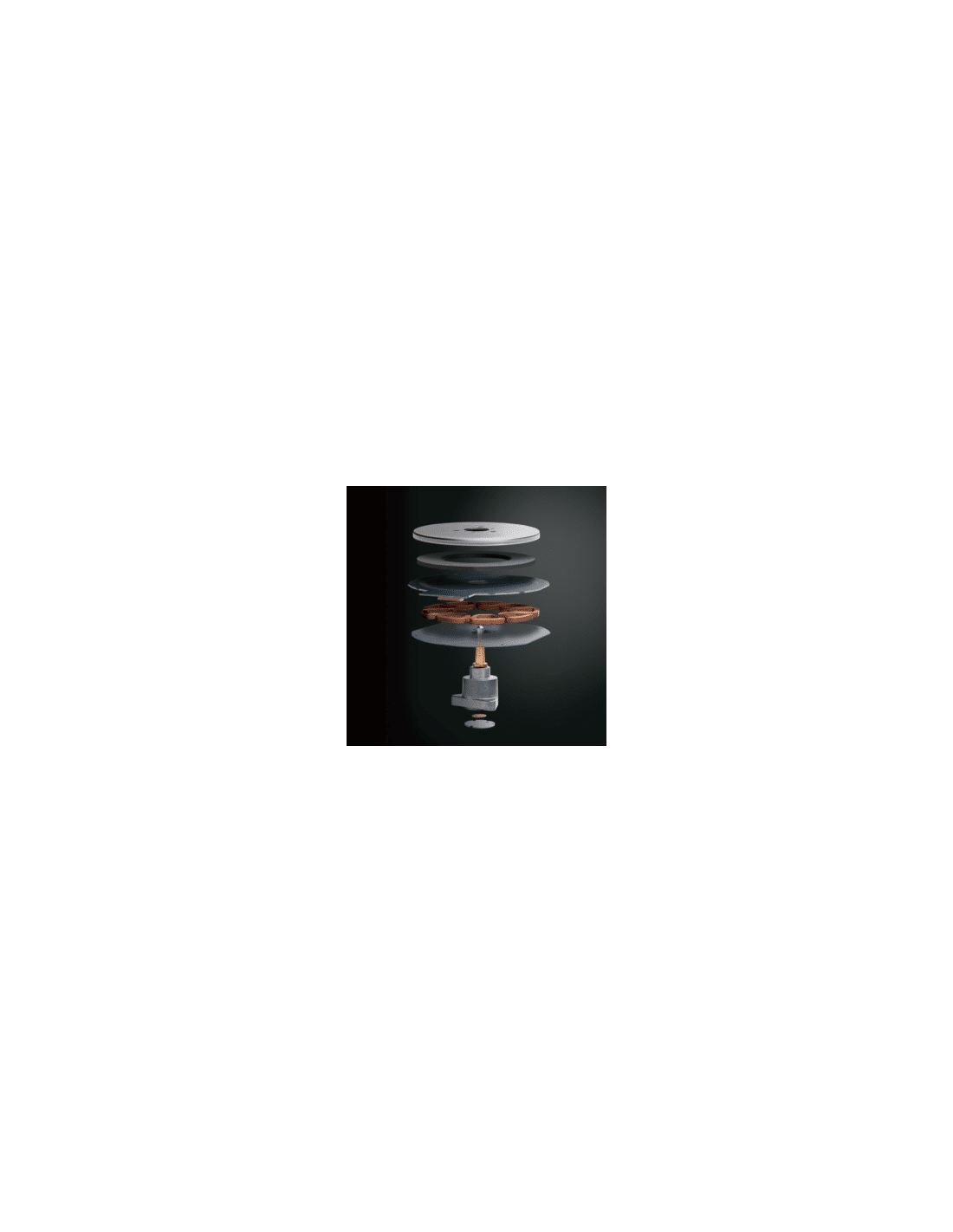

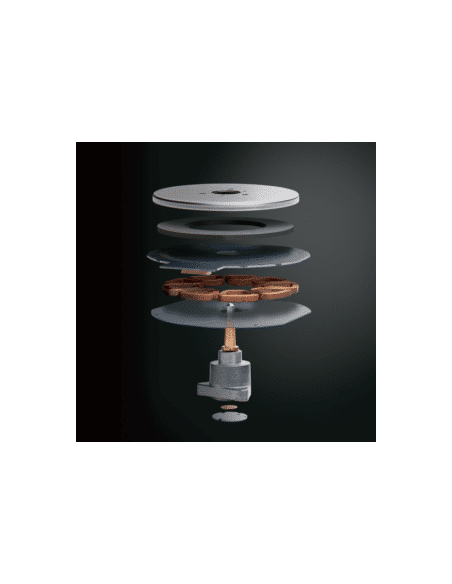

- Motor: Brushless DC motor

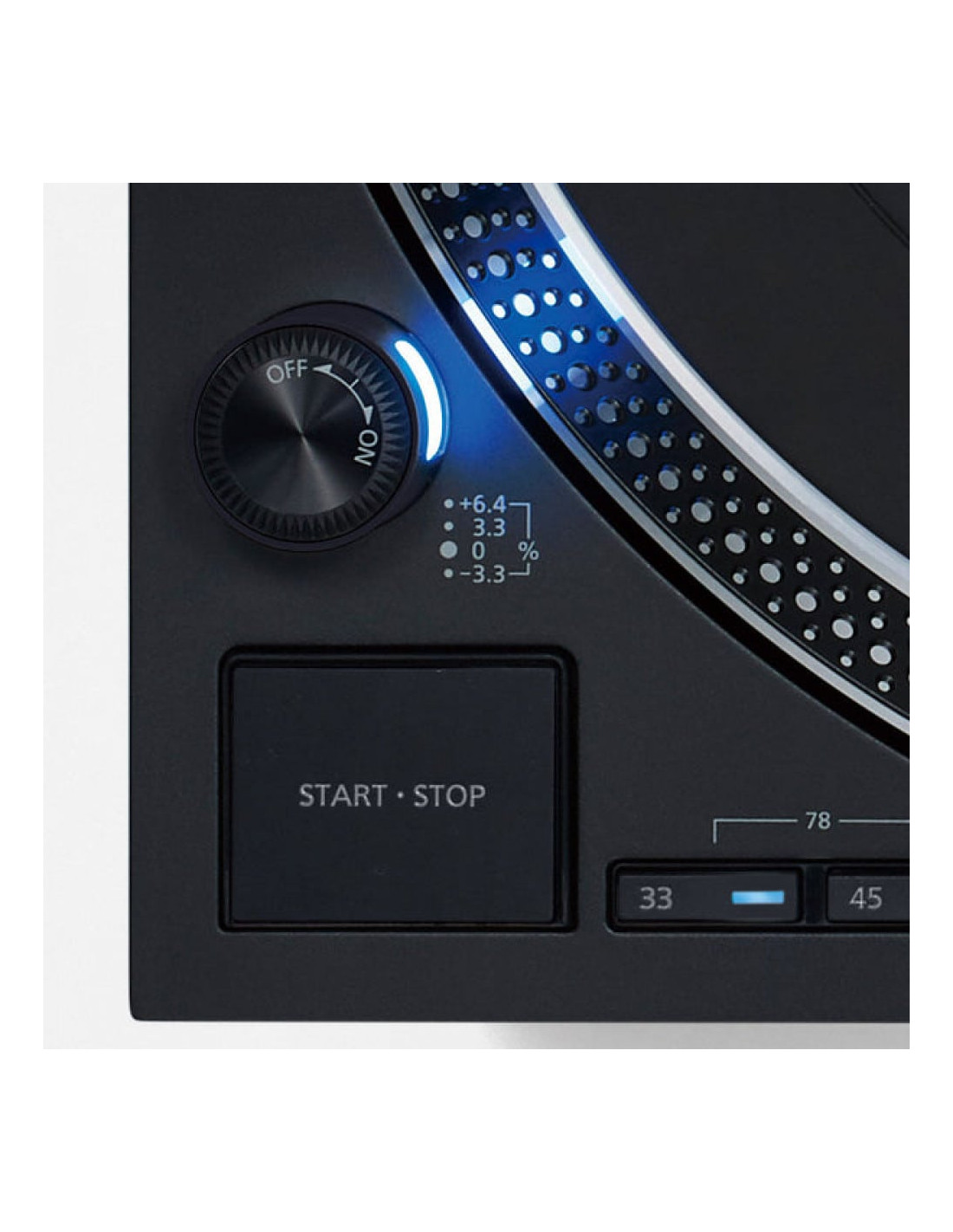

- Turntable Speeds: 33-1/3, 45 and 78 rpm

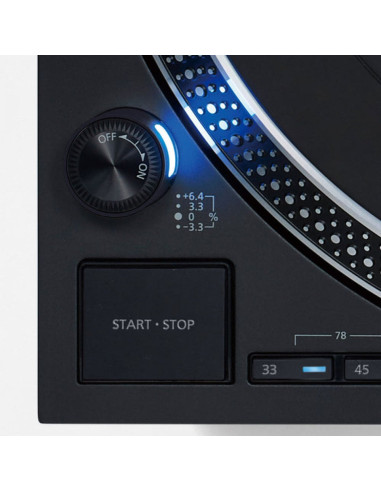

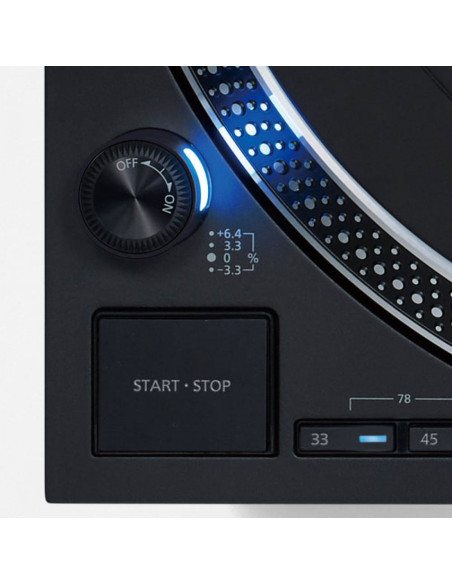

- Pitch Adjustment Range: ±8% and ±16%
- Starting Torque: 2.2 kg･cm
- Build-up Characteristics: 0.7 s. from standstill to 33- 1/3 rpm
- Braking system: Electronic brake
- Wow and Flutter: 0.025% W.R.M.S.
- Turntable Platter:
- Aluminum diecast
- Diameter：332mm
- Weight：Approx. 2.5kg (Including a rubber sheet)
- Type: Static Balance

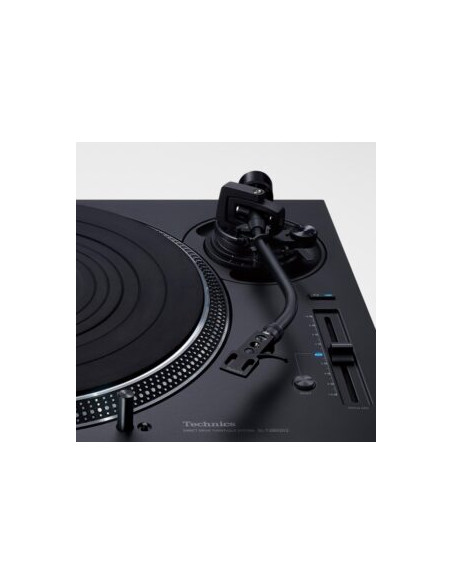

- Effective Length: 230mm
- Overhang: 15mm
- Tracking Error Angle:
- Within 2° 32’ (at the outer groove of 30cm(12″) record)
- Within 0° 32’ (at the inner groove of 30cm(12″) record)
- Offset Angle: 22°
- Arm Height Adjustment Range: 0 – 6mm
- Stylus Pressure Adjustment Range: 0 – 4g (Direct Reading)
- Headshell weight: Approx. 7.6g
- Applicable Cartridge Weight Range
- (without auxiliary weight)
- 5.6 – 12.0g
- 3.1 – 9.5g (using cartridge spacer)
- 14.3 – 20.7g (including head shell)
- (with auxiliary weight)
- 10.0 – 16.4g
- 7.5 – 13.9g (using cartridge spacer)
- 18.7 – 25.1g (including head shell)
- Cartridge Mounting Dimension
- 12.7 mm (1/2″) interval
- Head Shell Terminal Lug
- 1.2mmφ 4-pin terminal lug

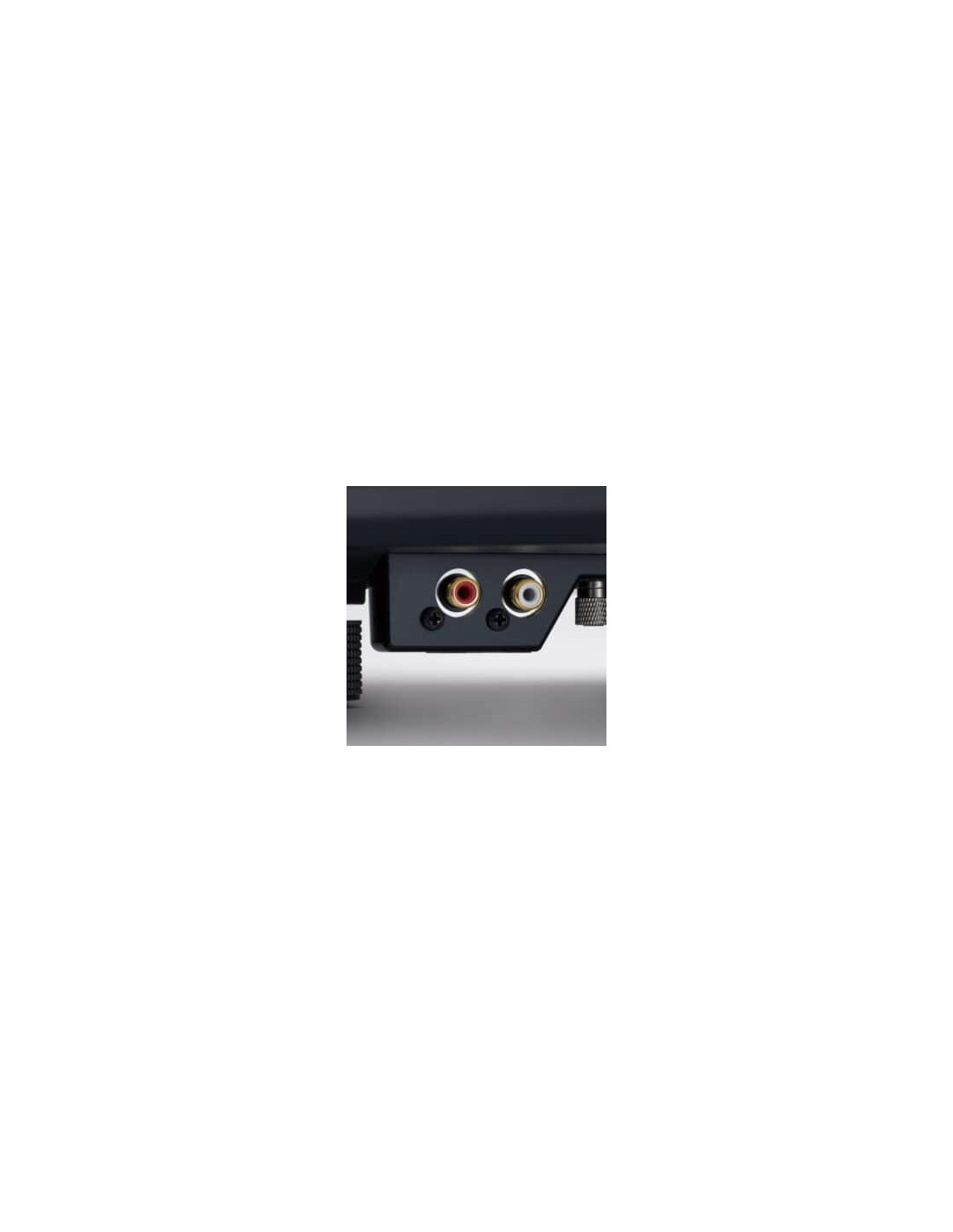

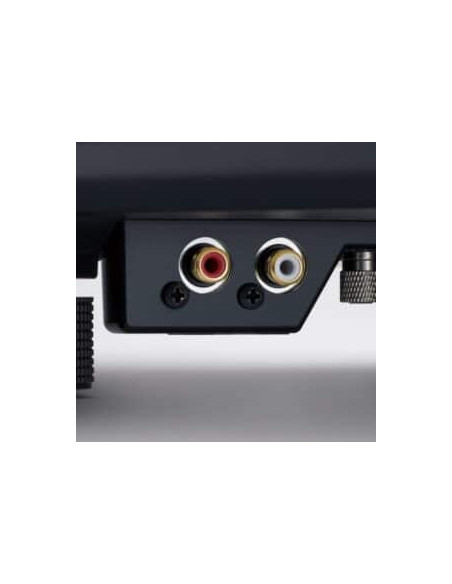

- Audio Output
- PHONO (Pin Jack) x 1
- EARTH TERMINAL x 1
- General

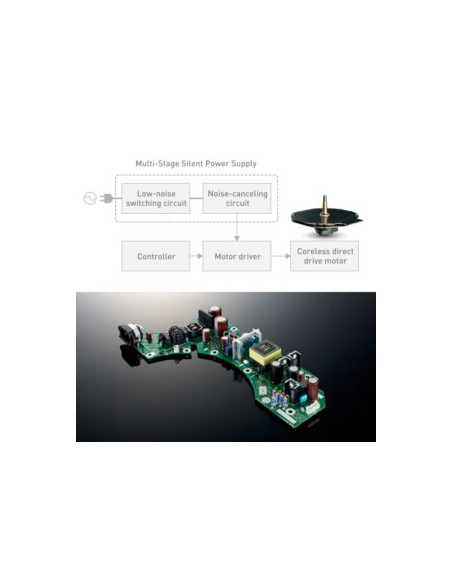

- Power Supply: AC220-240 V, 50/60 Hz
- Power Consumption
- 11 W (Power ON)
- 0.3 W (Power OFF)
- Dimensions (W x H x D): 453 x 173 x 372 mm
- Weight: Approx. 11.5kg
- Operating temperature range: 0℃ to +40℃
- Operating humidity range: 35% to 80% RH (no condensation)
- Accessories:
- Turntable, Turntable sheet, Dust cover,
- EP record adaptor, Balance weight,
- Auxiliary weight, Cartridge spacer
- Head shell, Overhang gauge,
- Screw set for cartridge, PHONO cable,
- PHONO earth lead, AC power supply cord,
- Owner’s Manual
- Garanti: 2år
