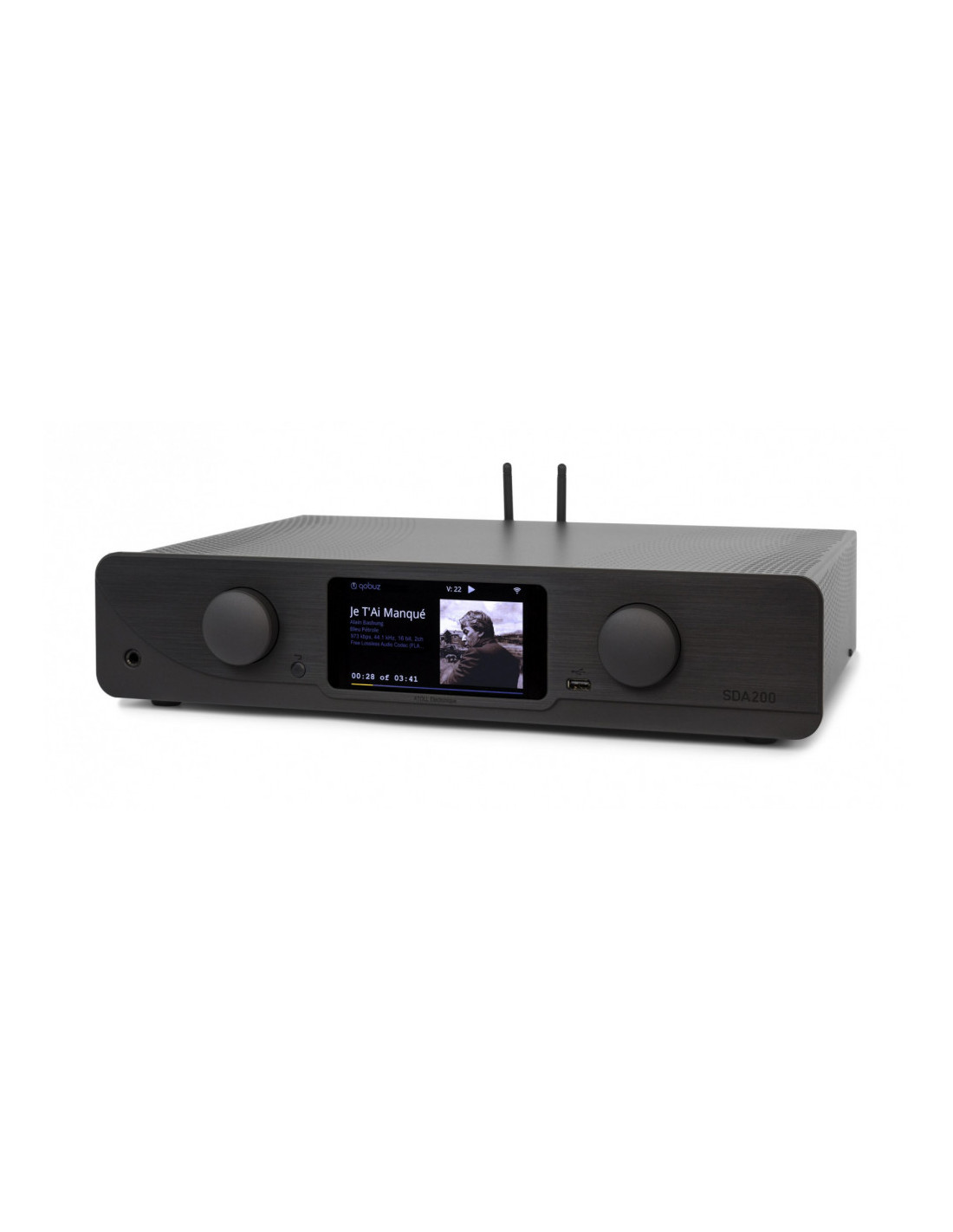

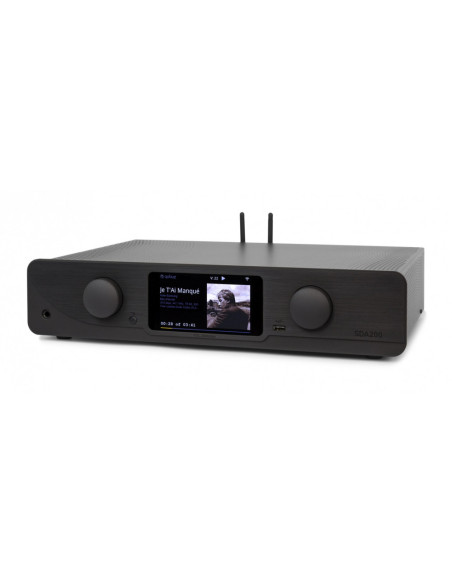

Atoll Electronique SDA200 Signature

• Strömförsörjning: 2×340 VA
• Wrms/kanal/8Ω: 2×120 W
• Wrms/kanal/4Ω: 2×200 W
• Totalt antal kondensatorer: 65 800 µF
• Dynamisk: 129 dB
• Ingångsimpedans: 220 kΩ
• Distorsion vid 1 kHz: 0,05 % / (10 W)
• Bandbredd: 5 Hz – 100 kHz
• Stigtid: 2 µs
• Känslighet: 350 mV
• Signal/brusförhållande: 129 dB
• D/A-omvandlare: Burr-Brown PCM1792
• Mått: 440×365×95 mm
• Vikt: 13 kg

STREAMER:

• Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
• Displays the name, tags, album cover, resolution.
• “gapless” system (uninterrupted playback of consecutive audio tracks).
• Possibility to create Playlists.
• External control (with Qobuz, Audirvana…) with RTSP protocole.

MUSIC STREAMING:

• Direct access from the ATOLL Signature app to streaming portals: Qobuz, Tidal, Deezer
• Roon Ready
• Spotify Connect
• Tidal Connect
• Cobuz Connect
• Highresaudio music streaming
• Amazon Music
• AirPlay 2

INTERNET RADIO:

• Access to all internet radios with Airable system in high quality:
• choices of more than 100 000 stations, podcasts…
• Displays logos stations and further information: titles, artists, resolution…
• Possibility to add radios to a « favorite » menu.

AUDIO:

• Symmetrical output stages with no feedback and discrete components polarized in A class.
• Analog volume control (with commutated resistors) with possible By-Pass.
• Transformer specifically dedicated to audio stages.
• High Quality MKP link condensators.
• Burr-Brown PCM1792 converter.

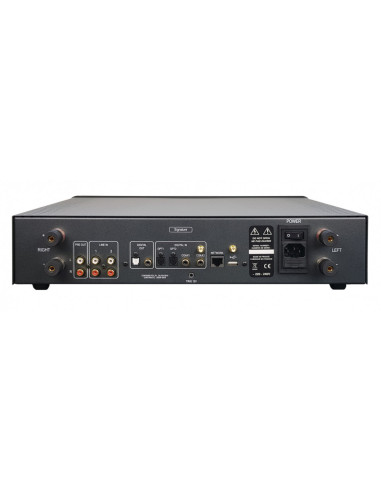

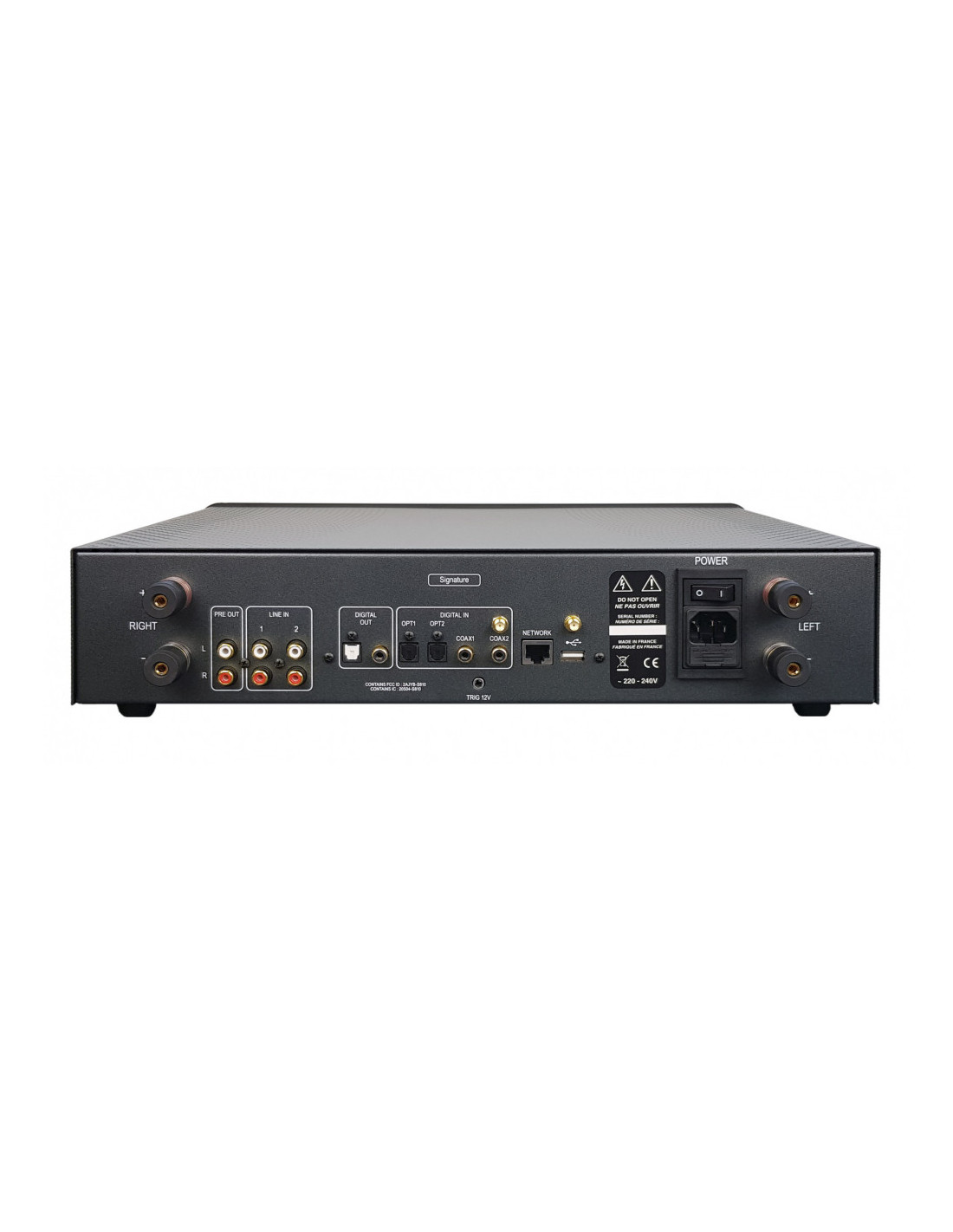

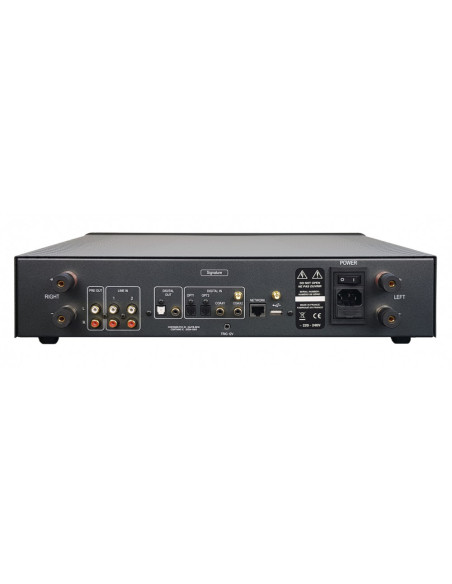

Inputs:

• 2x analog
• 2x S/PDIF coaxial (PCM 24bits/192kHz)
• 2x S/PDIF optical Toslink (PCM 24bits/192kHz)
• 2x USB-A (1 front and 1 rear)
• 1x RJ45 network
• 1x Bluetooth® receiver (antenna)

Outputs:

• 1x Speakers pair
• 1x Pre-out Stereo RCA
• 1x S/PDIF coaxial
• 1x S/PDIF optical Toslink
• 1x Wifi antenna (802.11b/g/n)
• 1x trigger 12V output
• 1x headphones output front (6,5mm)
