Qualiton Audio X200 Integrated Amplifier

Tech Specs

Preamplifier

Gain

+46 dB (Phono)

+0 dB (Line)

Max. Input Signal

40 millivolts (Phono)

8 Volts (Line)

Input Impedance

47 000 Ohms || 120 pF (Phono)

25 000 Ohms || 10 pF (Line)

Frequency Response

20 Hz - 20 kHz (-0.5 dB, Phono)

4 Hz - 1 MHz (-3 dB, Line)

Total Harmonic Distortion

< 0.03% (f = 10 kHz, Phono)

< 0.001% (f = 20 Hz to 20 kHz, Line)

Signal-to-Noise Ratio

> 60 dB below 1 Volt (Phono)

20 Hz - 22 kHz bandwidth, without weighting filter

> 90 dB below 1 Volt (Line)

20 Hz - 22 kHz bandwidth, without weighting filter

Max. deviation from RIAA curve

+/- 0.5 dB

Bass boost

+ 5.6 dB in EQ setting I

+ 7.6 dB in EQ setting II

Treble boost

+ 6 dB in EQ setting I

+ 8 dB in EQ setting II

Headphone Amplifier

Rated Output Power

2 x 0.3 Watts @ 32 Ohms

Frequency Response

4 Hz to 1 MHz (-3 dB)

Total Harmonic Distortion

< 0.008% (RL = 32 Ohm, 0.125 W)

Signal-to-Noise Ratio

> 95 dB below rated output @ 32 Ohms

20 Hz - 22 kHz bandwidth, without weighting filter

> x dB below rated output

with A-weighting filter

Gain

-6 dB dB @ 32 Ohms

Power Amplifier

Rated Output Power

2 x 100 Watts @ 4 to 8 Ohms

Output Load Impedance

4 to 8 Ohms

Number of Channels

2

Frequency Response

5 Hz - 85 kHz (-3 dB, 1 Watt)

27 Hz - 70 kHz (-3 dB, 100 Watts)

Total Harmonic Distortion

< 1 % across the entire power spectrum,

from milliwatts to rated output,

spanning 20 Hz to 20 kHz.

Rated Power Bandwidth

20 Hz - 20 kHz

Signal-to-Noise Ratio

> 100 dB below rated output

20 Hz - 22 kHz bandwidth, without weighting filter

> x dB below rated output

with A-weighting filter

Input Sensitivity

(for rated output)

0.46 Volts Preamp IN

0.46 Volts Direct IN Balanced

2.25 millivolts Phono IN

Input Impedance

10 000 Ohms Direct IN Unbalanced

20 000 Ohms Direct IN Balanced

Gain

+35.5 dB @ 8 Ohms

General

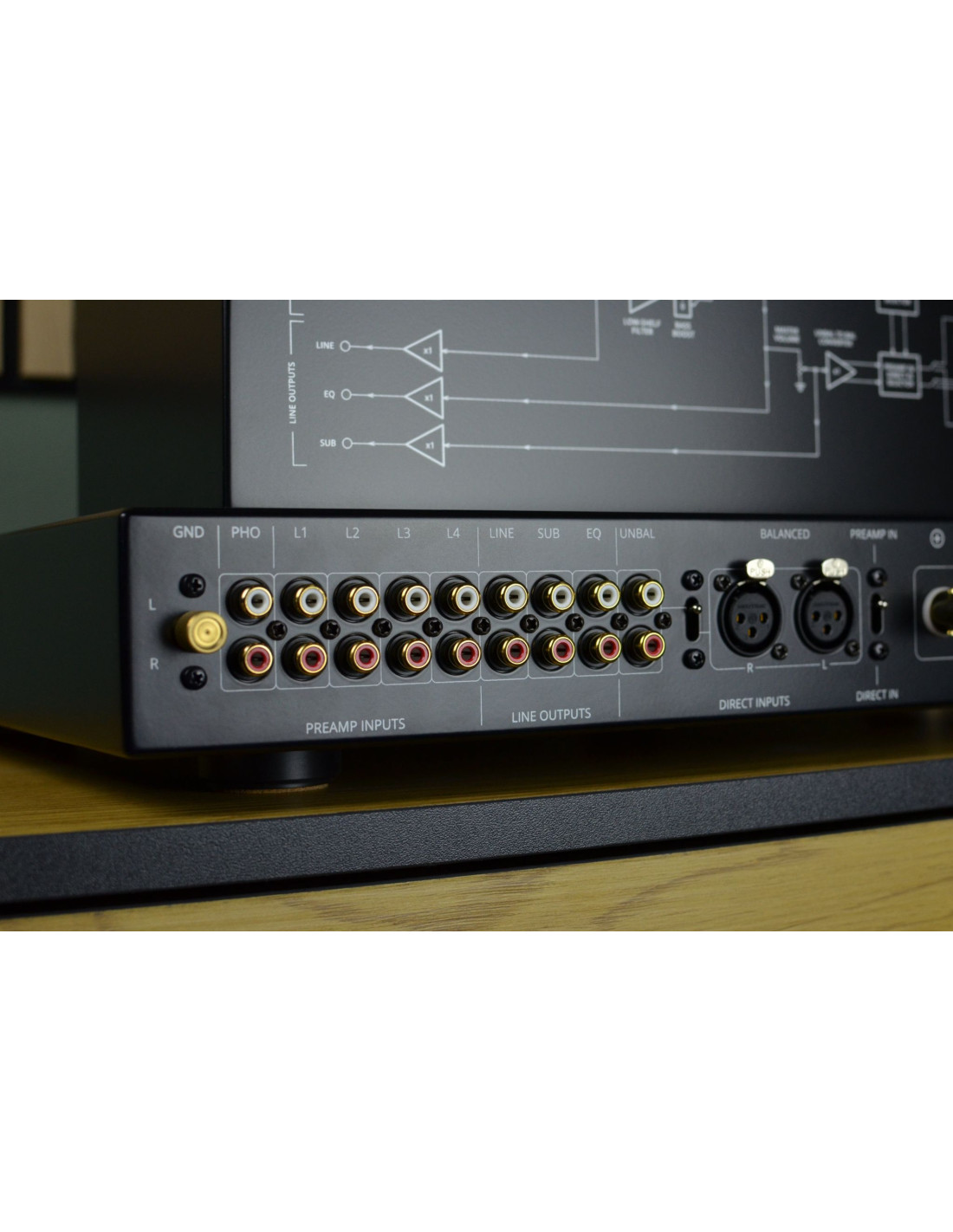

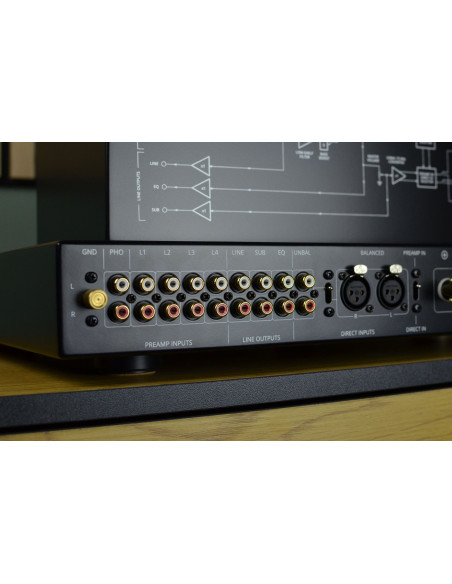

Number of Inputs

1 unbalanced Phono IN

4 unbalanced Line IN

1 unbalanced Direct IN

1 balanced Direct IN

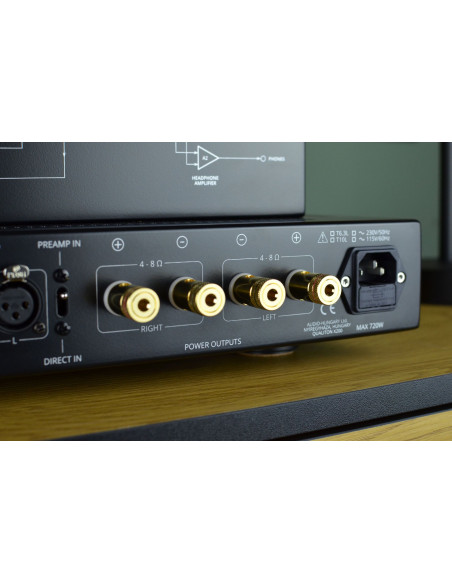

Number of Outputs

1 unbalanced Line OUT

1 unbalanced Sub OUT

1 unbalanced EQ OUT

1 unbalanced Phones OUT

1 balanced Power OUT

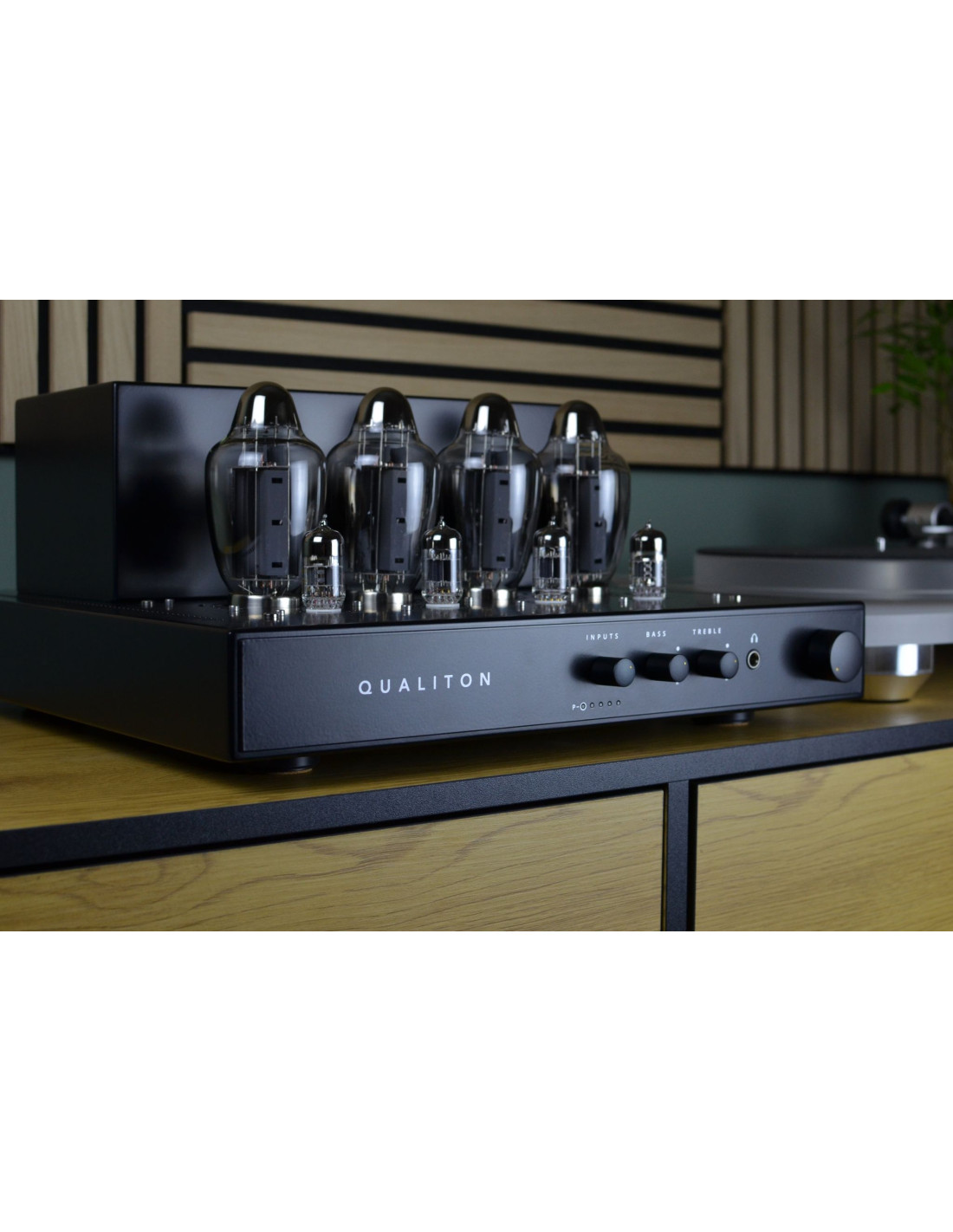

Vacuum Tubes

2 x 12AX7

2 x 6922

4 x KT120 (KT150 / KT170 optionally)

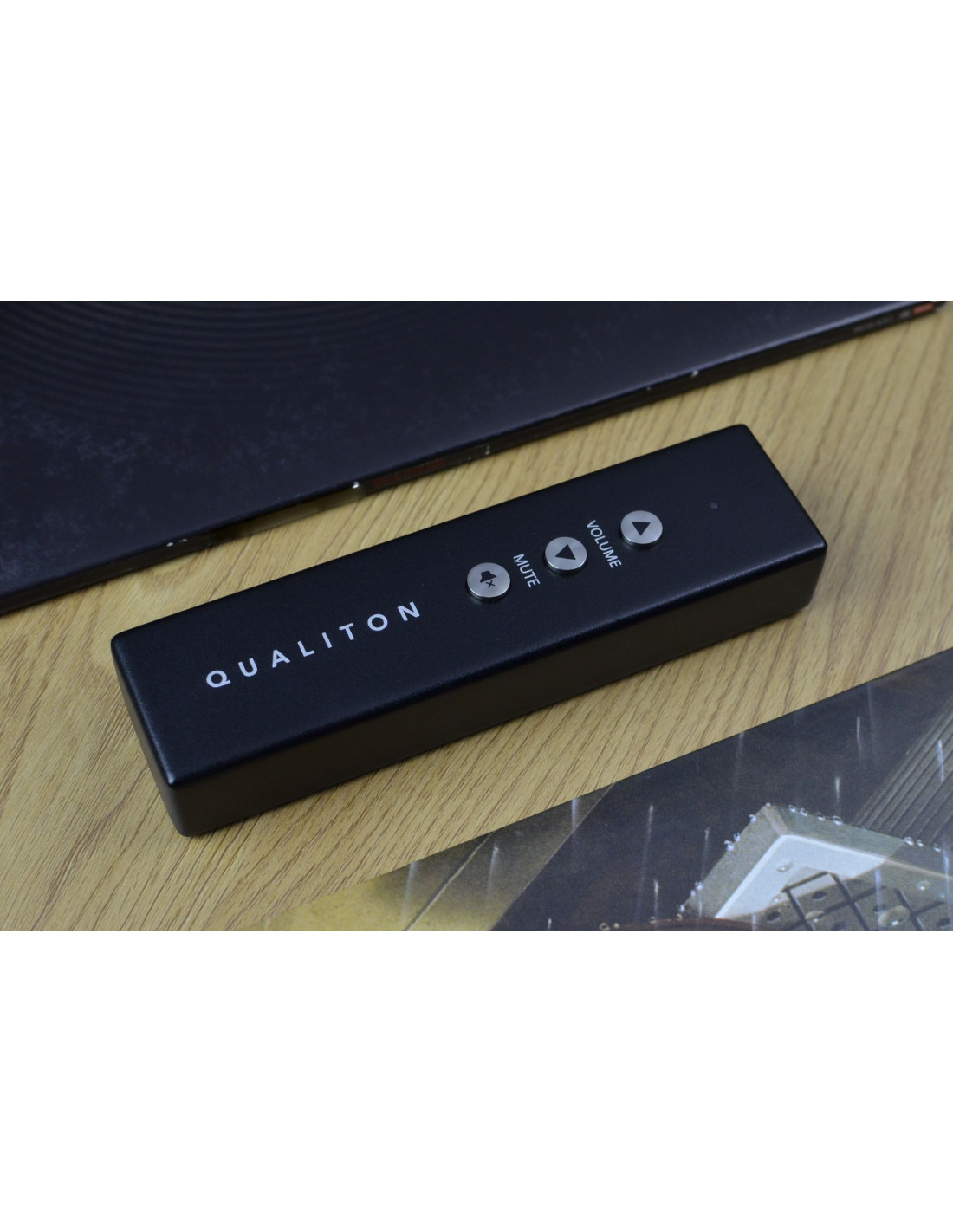

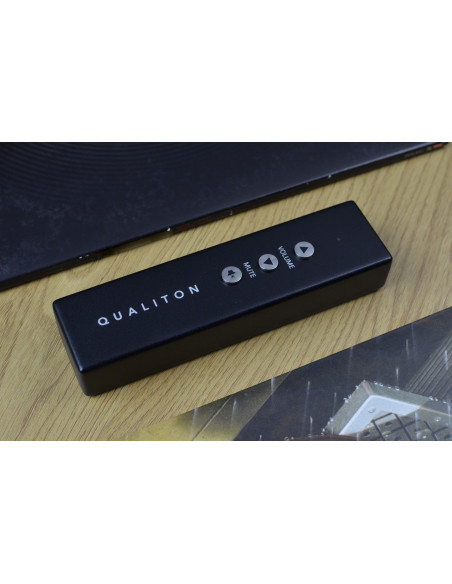

Remote Control

Volume Up

Volume Down

Mute

Power Requirement

200 W idle

720 W max

Weight

23 kg

Dimensions

L 47.5 x W 43 x H 20 cm
