Qualiton Audio A35 Integrated Amplifier

Tech Specs

Electrical

Rated Output Power

2 x 35 Watts @ 4 to 8 Ohms

Output Load Impedance

4 to 8 Ohms

Number of Channels

2

Frequency Response

5 Hz - 85 kHz (-3 dB, 1 Watt)

22 Hz - 80 kHz (-3 dB, 35 Watts)

Total Harmonic Distortion

< 0.5 % across the entire power spectrum,

from milliwatts to rated output,

spanning 20 Hz to 20 kHz.

Rated Power Bandwidth

20 Hz - 20 kHz

Signal-to-Noise Ratio

> 98 dB below rated output

20 Hz - 22 kHz bandwidth, without weighting filter

> 110 dB below rated output

with A-weighting filter

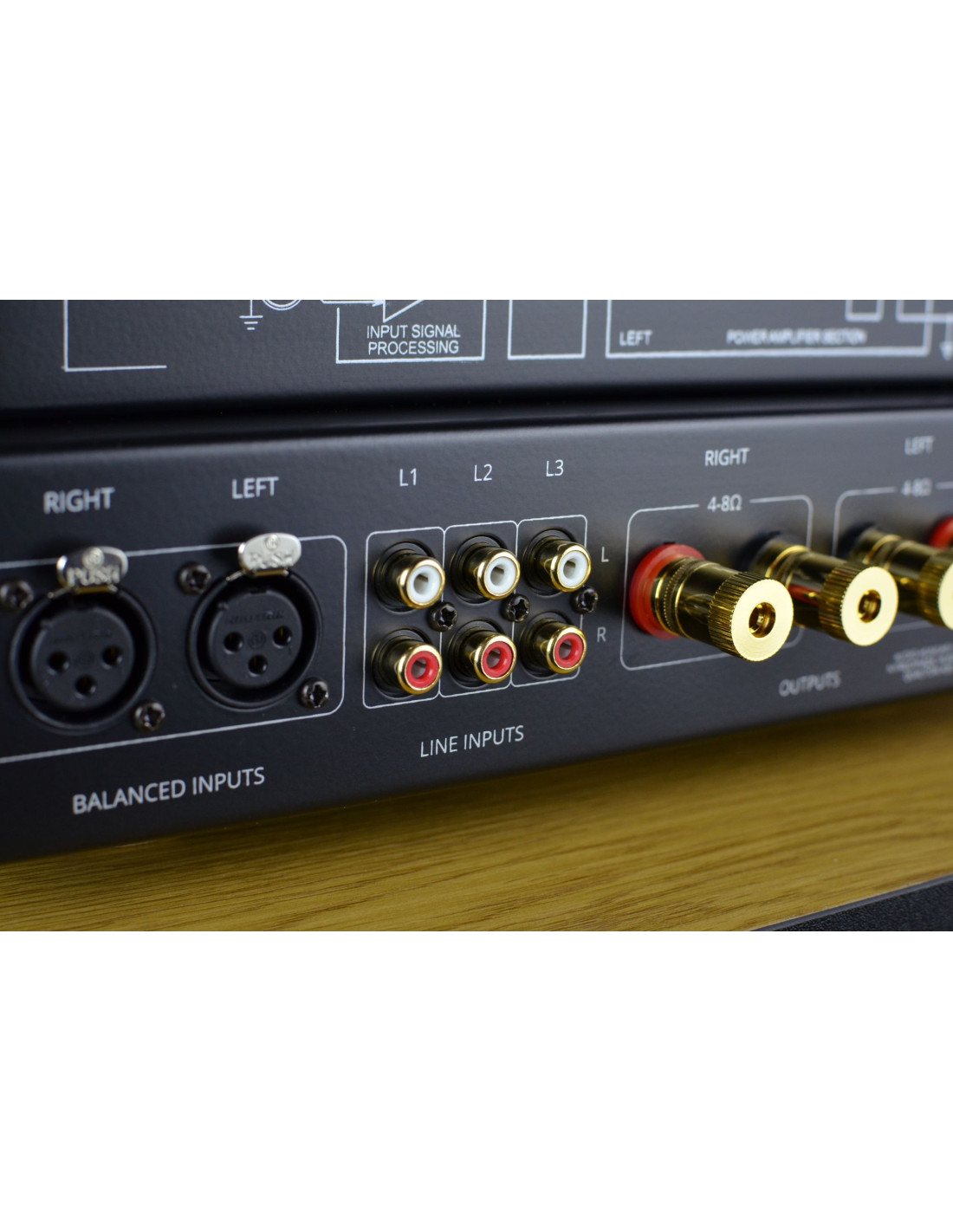

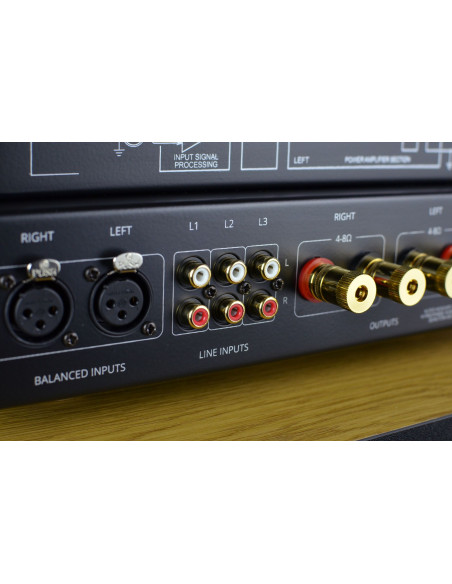

Number of Outputs

1 Unbalanced POWER OUT

Number of Inputs

3 Unbalanced STEREO IN

1 Balanced STEREO IN

Input Sensitivity

(for rated output)

0.5 Volts Unbalanced

0.5 Volts Balanced

Input Impedance

10 000 Ohms Unbalanced

40 000 Ohms Balanced

Gain

+30 dB @ 8 Ohms

General

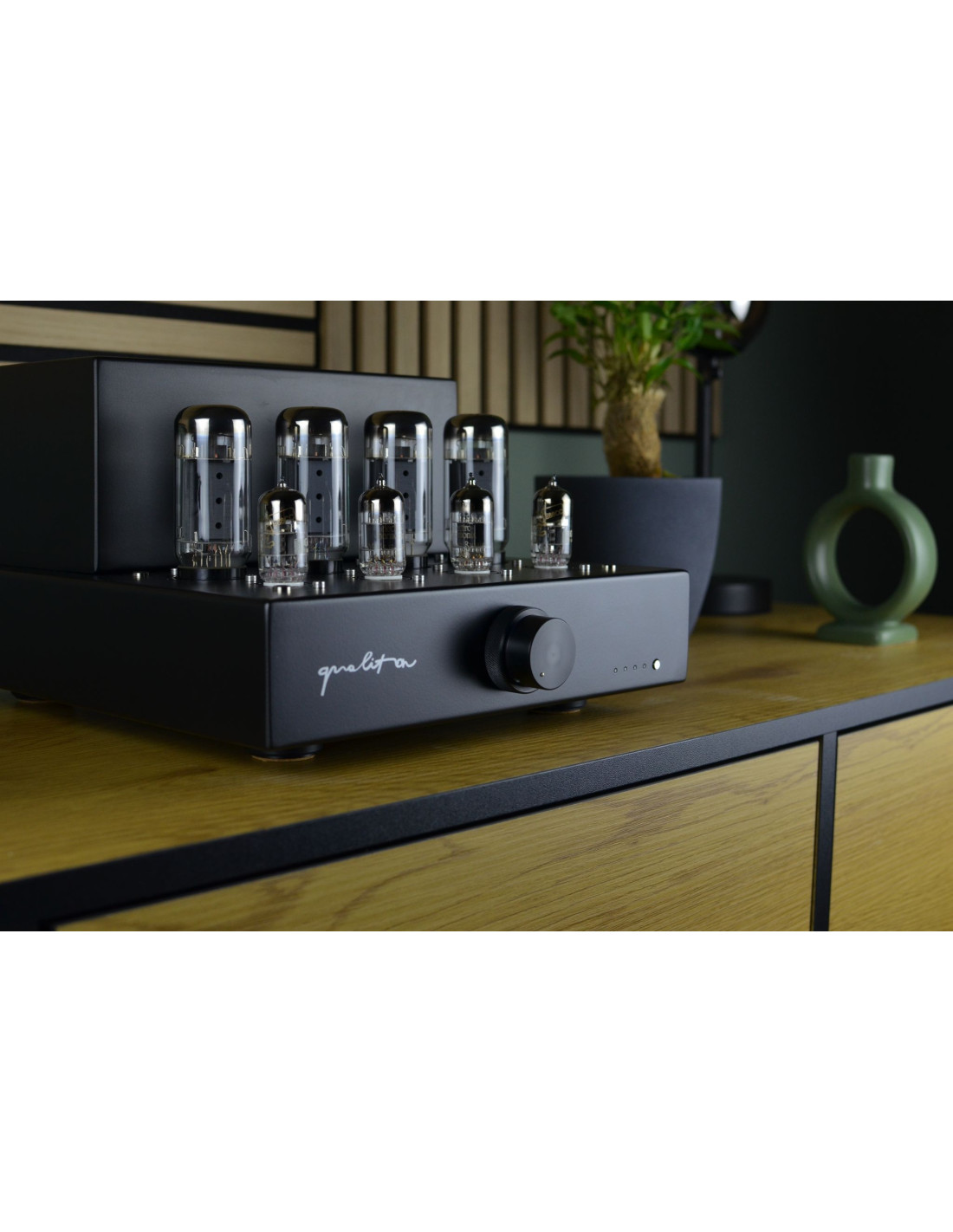

Vacuum Tubes

2 x 12AX7

2 x 6922

4 x 7581A

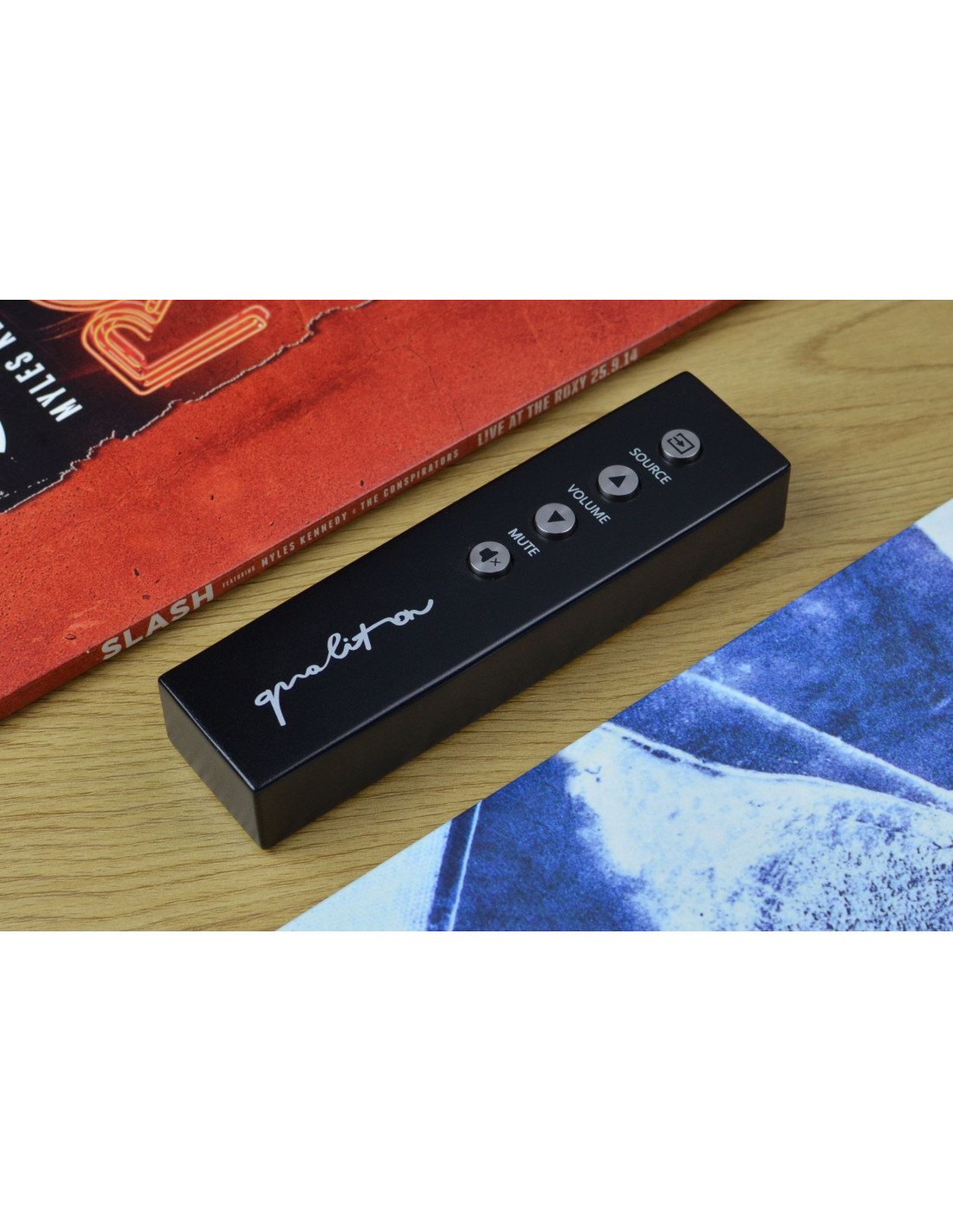

Remote Control

Input Selection

Volume Up

Volume Down

Mute

Power Requirement

150 W idle

300 W max

Weight

15 kg

Dimensions

29 x 37 x 19 cm
