Audio Analogue Maestro 2.0

The Maestro 2.0 integrated amplifier is the latest addition to the

Anniversary line. Derived from the Maestro Anniversary, it is its

natural evolution and exaltation at the highest levels. Developed by

the Airtech team, the Maestro 2.0 is a perfect combination of

musicality and almost unlimited power.

As in the Maestro Anniversary, all stages of the new Maestro 2.0 are

without global feedback. The output power has been increased to

200W over 8Ω with the consequent scaling of all driver and end

stages, which now use four pairs of transistors per channel. The

basic configuration remains that of the reverse-case code which is

comparable to a single gain stage followed by the output buffer.

Compact and elegant shapes, remarkable power that doubles as

impedance decreases, extraordinary driving skills combined with a

unique musicality and refinement: all of these features make the

Maestro 2.0 a practically perfect integrated amplifier.

Technical Description

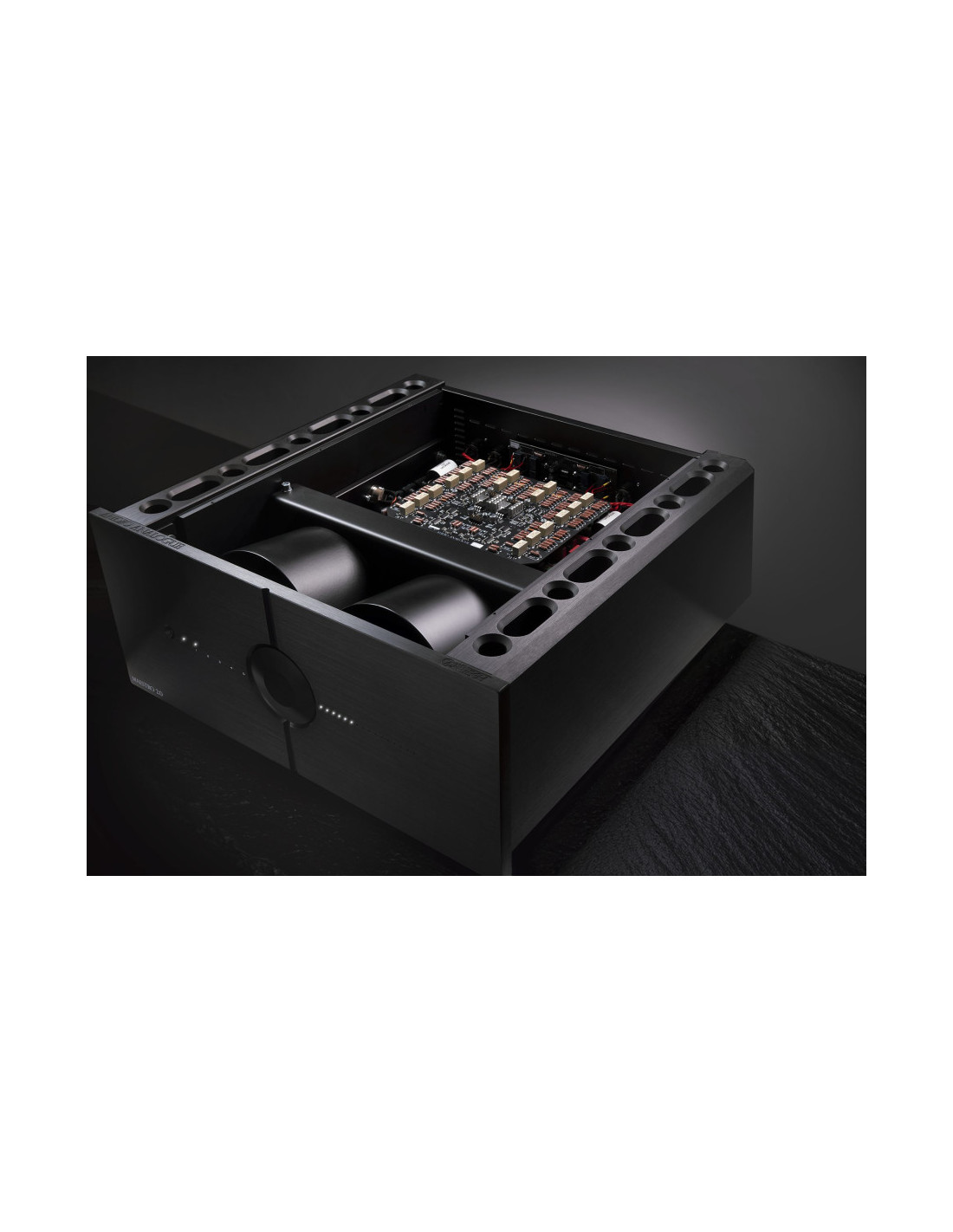

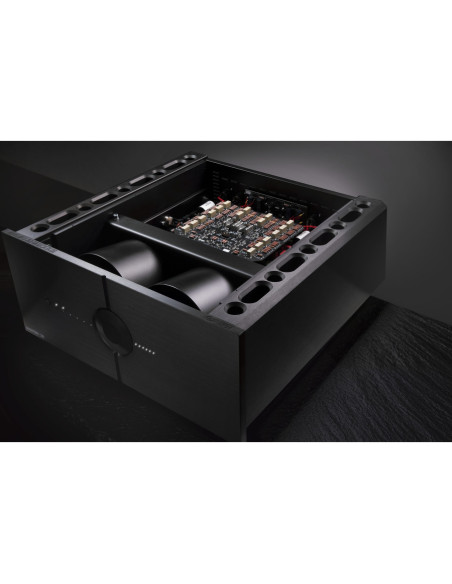

The Maestro 2.0 is an integrated amplifier with fully balanced circuitry and zero global feedback. The configuration is completely dual-mono starting from two 670W toroidal transformers. Each stage of the amplifier has a dedicated board for a total of six different boards connected with 7N OCC copper conductors, the same used to produce the high-quality Airtech cables. Special attention has been given to the RR volume control, as this solution allows the user to achieve the reliability and balance of a digital control and to manage four different selectable volume scales. At the same time, signal processing is completely analog thanks to the use of high precision relays and resistors. All the components are meticulously selected and of the highest quality: resistors to military standards, audiograde capacitors and further oversized components specifically chosen to guarantee maximum level performances and reliability.

The Maestro 2.0 is available in silver and satin black finishes and is equipped with a remote control made from solid aluminium.

Technical Specifications

Channels 2

Input impedance 47 kΩ

Max input signal 6Vrms

Output power

at 8Ω One channel operating

200W @ 1% THD + N

Output power at 4Ω

One channel operating

400W @ 1% THD + N

Output power at 2Ω

One channel operating

600W @ 1% THD + N

Sensibility Nominal output power at 8Ω 720mVRMS

Frequency response Attenuation 0dB, Bandwidth -3dB 90KHz

Output resistance Nominal output power at 2Ω/1kHz 0.2Ω

Noise level Bandwidth limit 0Hz-80kHz ≈20µV

Noise level A weighted ≈10µV

SNR Attenuation 0dB/ Nominal output power at 8Ω/ A weighted ≈100 dB

Stand-by power consumption 230VAC <1W

Dimensions

HxWxD 205x450x465mm

Weight

47,50kg
