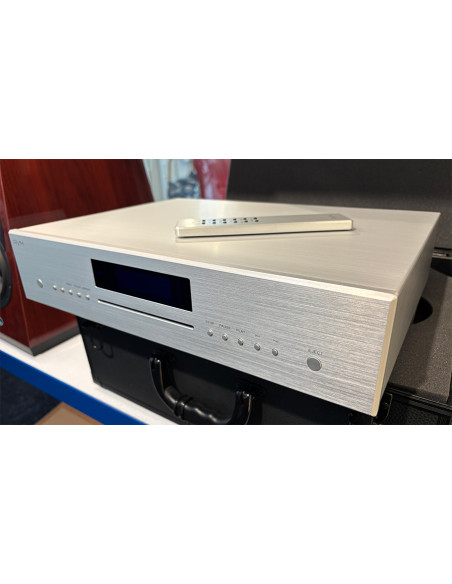

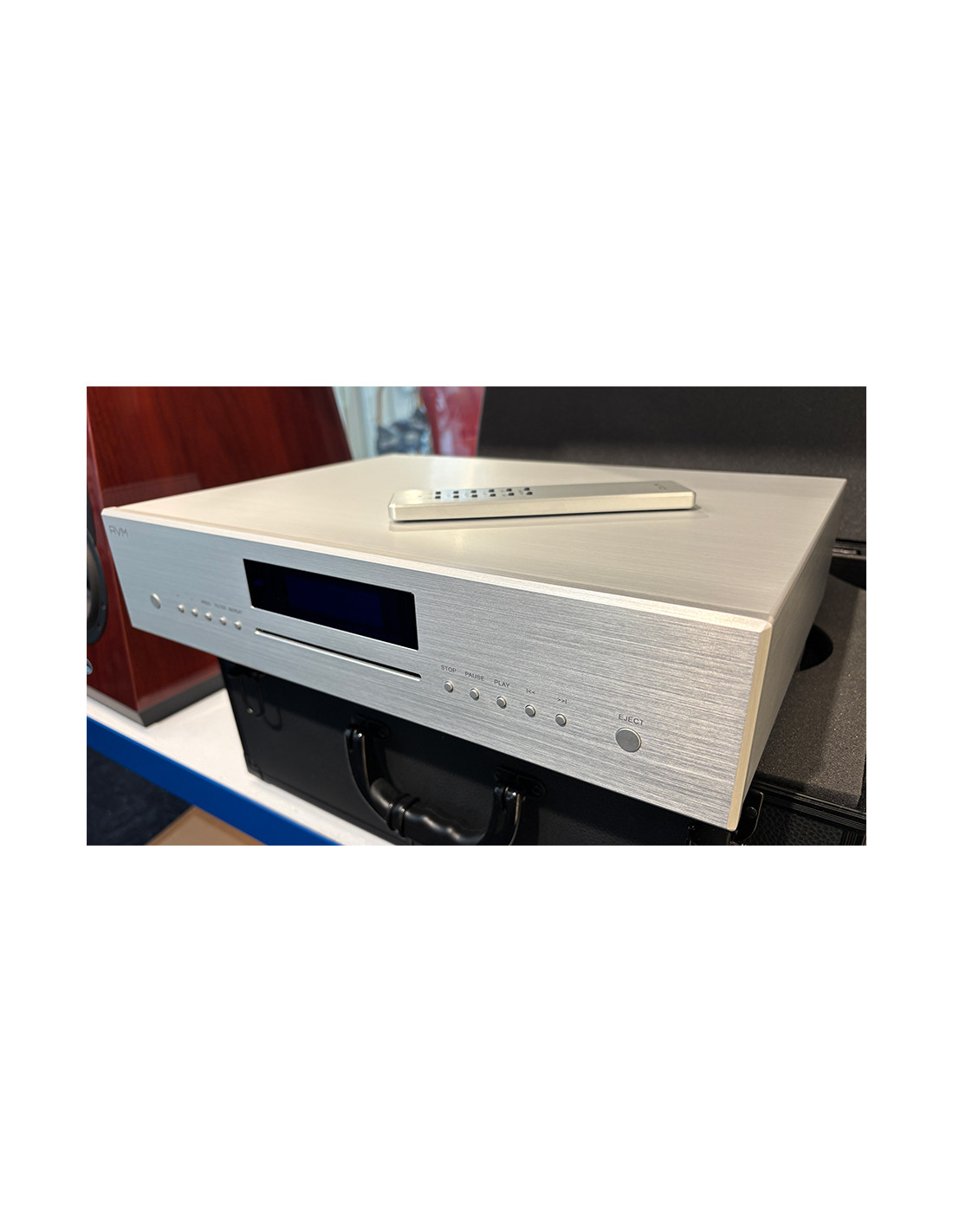

AVM CD 3.3 mk2

Digital inputs

Disc formats CD-Audio, CDR

Upsampling up to 192 kHz / 24 Bit

Frequency response 20 Hz – 20 kHz (up to 90 kHz depending on input sample rate)

Deemphasis automatically

Input format dig in opt Input format dig in RCA cinch USB input USB1 USB input USB2 (option) Input impedance dig in RCA cinch Input impedance dig in AES/EBU Input levels SPDIF, linear PCM 33 kHz – 96 kHz / 16 – 24 bits

SPDIF, linear PCM 33 kHz – 192 kHz / 16 – 24 bits

up to 48 kHz / 16 bits linear PCM

up to 192 kHz / 24 bits linear PCM

75 Ohms

110 Ohms

according to IEC 908

Digital outputs

Data format 44,1 kHz / 16 bits or format on digital input

Output impedance RCA Cinch 75 Ohms

Output impedance AES/EBU 110 Ohms

Output voltages according to IEC 958

Optical output TOSLINK

Analogue outputs

Output voltage 2,5 V (US-version: Cinch 3,15 V, XLR: 6,3V)

Output impedance RCA Cinch 75 Ohms

Output impedance XLR 150 Ohms

Frequency response <10 Hz – over 90 kHz (depends on digital input data)

S/N ratio CD3.2 110 dB / 113 dB(A)

S/N ratio CD5.2 100 dB / 103 dB(A)

Dimensions CD 3.2 (w x h x d ) 430 mm x 90 mm x 310 mm

Weight CD3.2 5.5 kg
