Demoex EAT Eglo-S

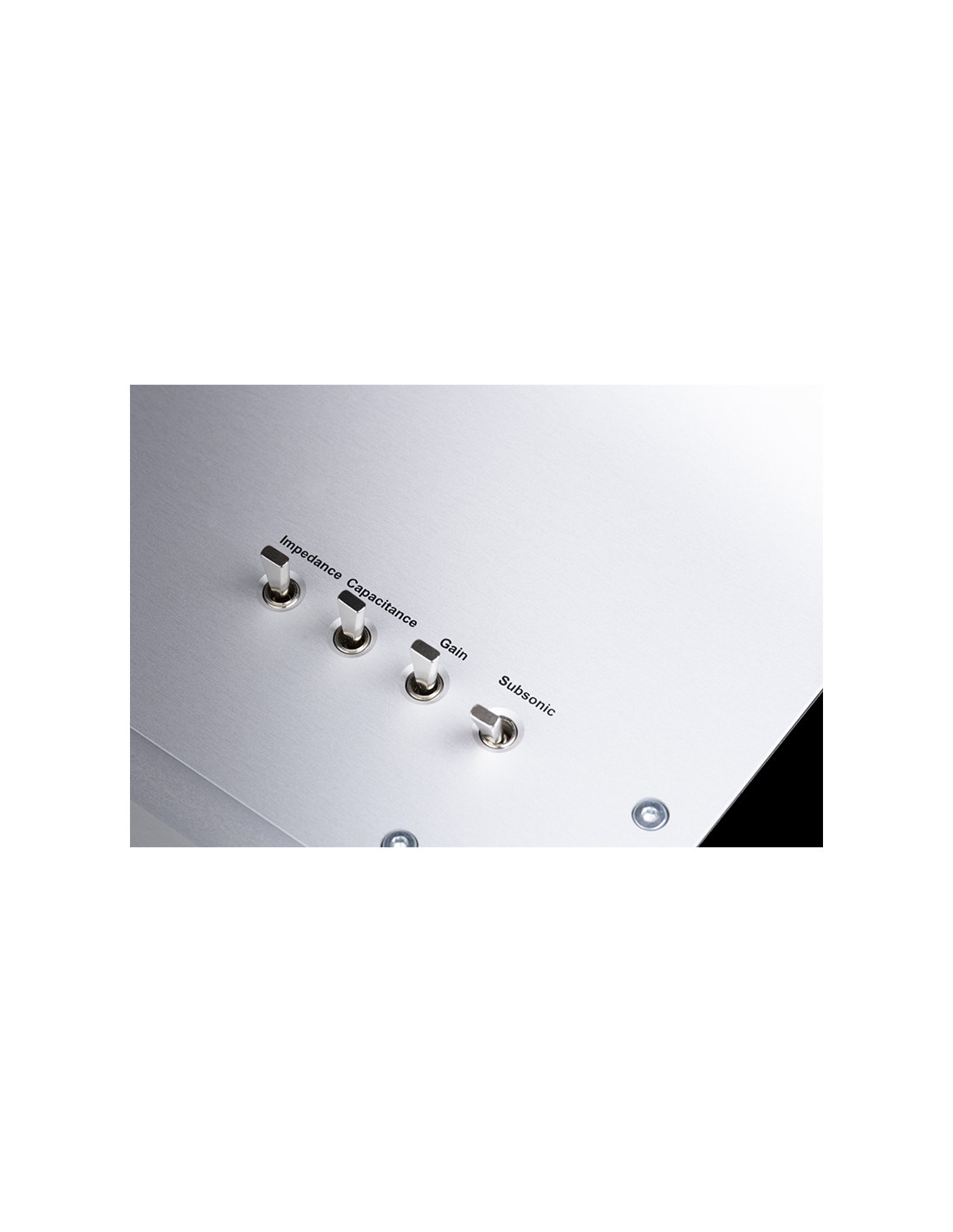

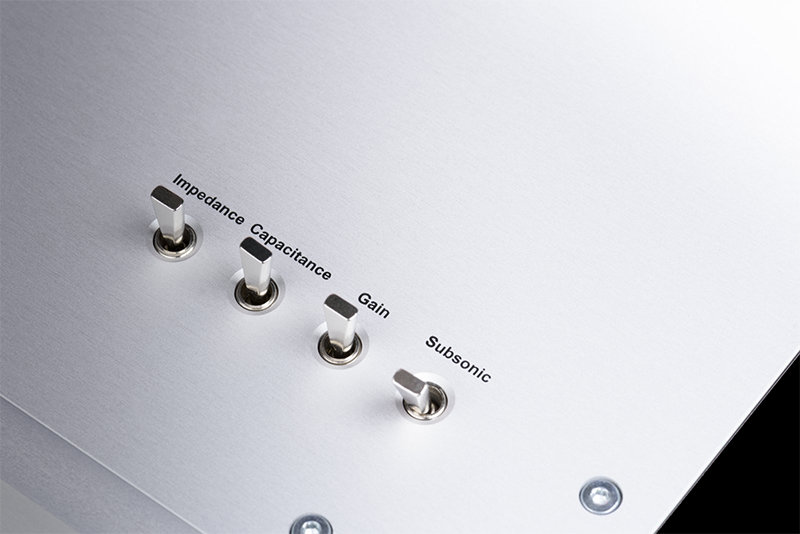

Trevligt och synnerligen välljudande steg som ger full kontroll med omkopplare på toppen av chassiet.

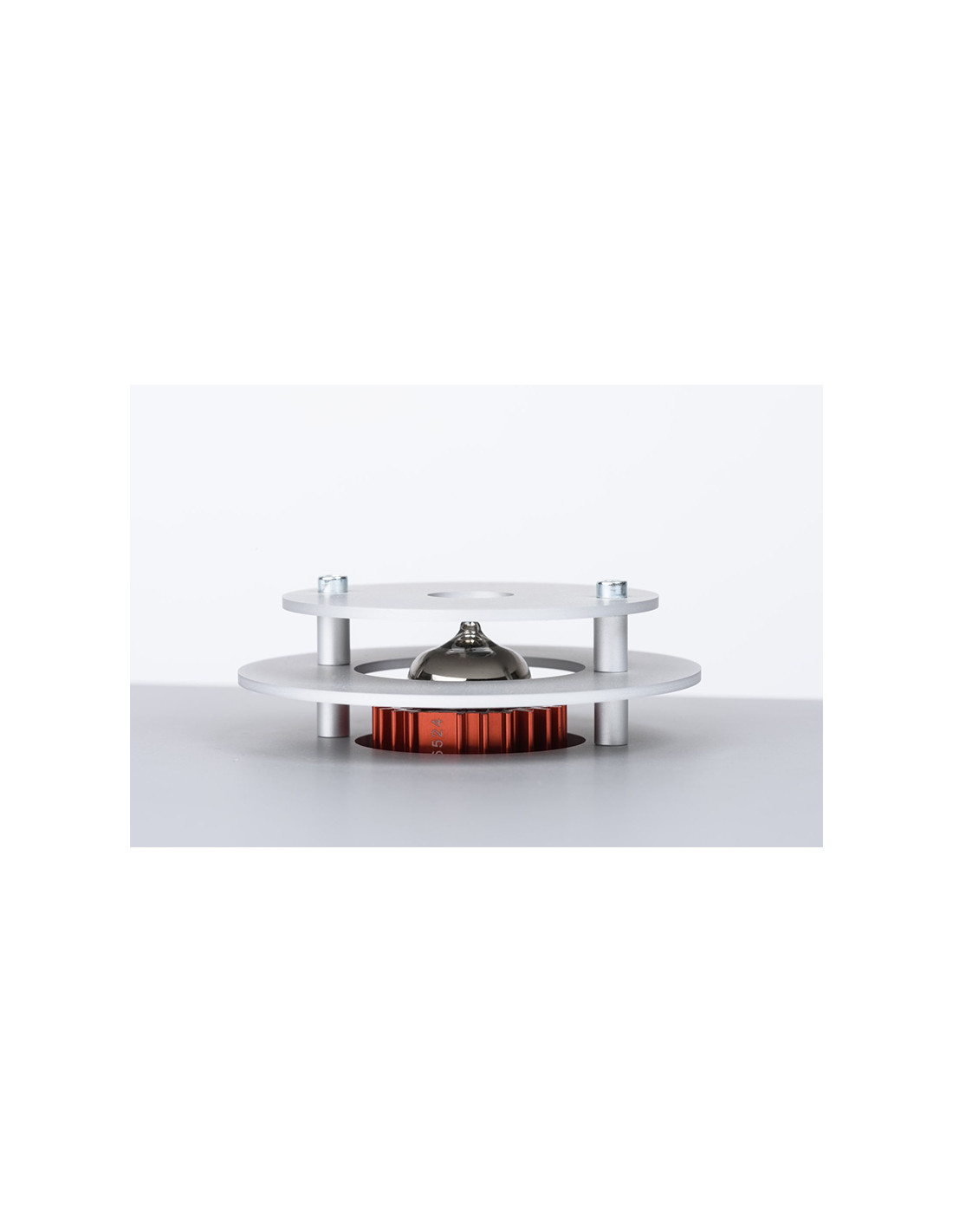

Nya originalrör från EAT installerade inkl deras tube cool dampers
Nypris ca 40 000kr
E-glo S – is a hybrid phono preamplifier that utIlizes ECC83 tubes (twin triode) in the first and second gain stages In order to get higher gain and lower noise we use in the first stage a cascode connection of tube with with two paralelly connected low-noise J-FET transistors.

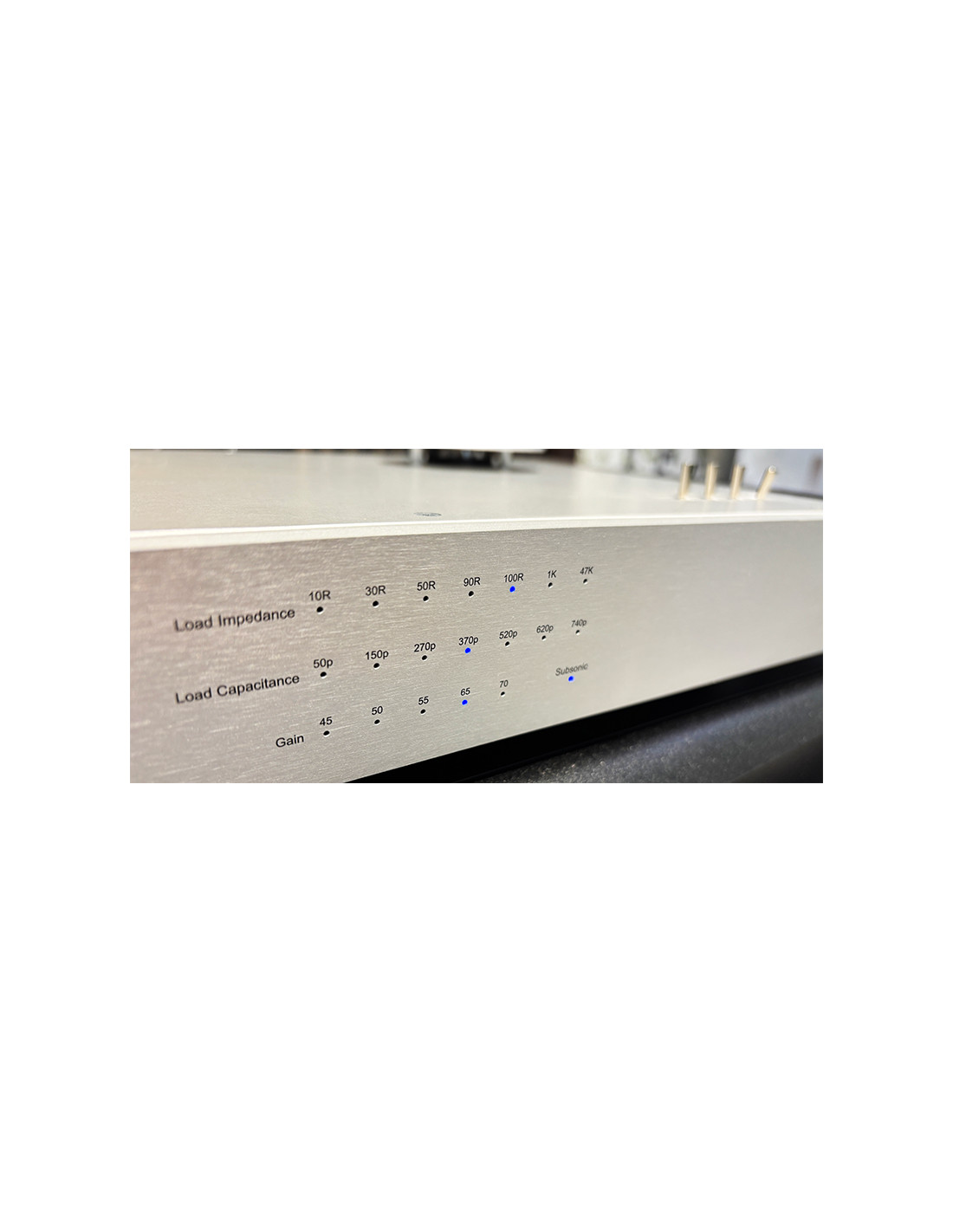

RIAA curve is equalised fully passive and splitted in two steps which allows to achieve perfect impedance matching between the gain stage and equalization block. Phono preamplifier doesn't have any global feedback. It has a massive aluminium chassis, large possibility of adjusting the impedance, capacity and gain. It has subsonic filter with mild effect which doesn't affect audible frequencies in unpleasant way.
| INPUT IMPEDANCE | MC 10,25,50,75,100,1000 Ohm |
|---|---|
| LOAD CAPACITY | 50,100,150,200,270,320,420 pF |
| OUTPUT IMPEDANCE | 100 ohms |
| LOAD CAPACITY | 50,100,150,200,270,320,420 pF |
| GAIN MM | 45 dB |
| GAIN MC | 45,50,55,65,70 dB |
| RIAA ACCURACY | within 0,5dB/20Hz – 20kHz |
| SUBSONIC | 18 dB / Octave |
| INPUT | RCA |
| OUTPUT | RCA |
| POWER SUPPLY | DC18V/1 |
| DIMENSIONS W × H × D | 435 × 90 × 270 mm |
