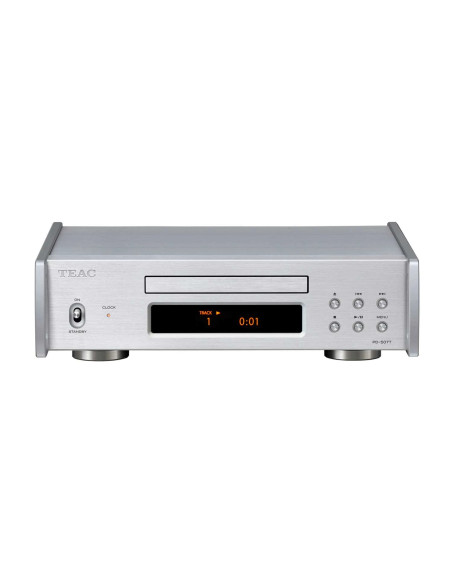

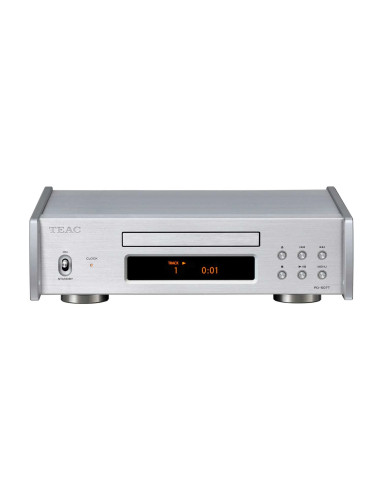

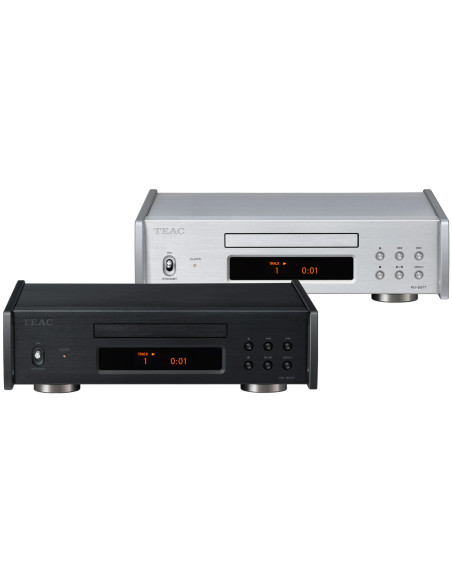

TEAC PD-507T

Specifikationer:

• CD section
• Supported media Audio CD (CD-R/CD-RW supported)

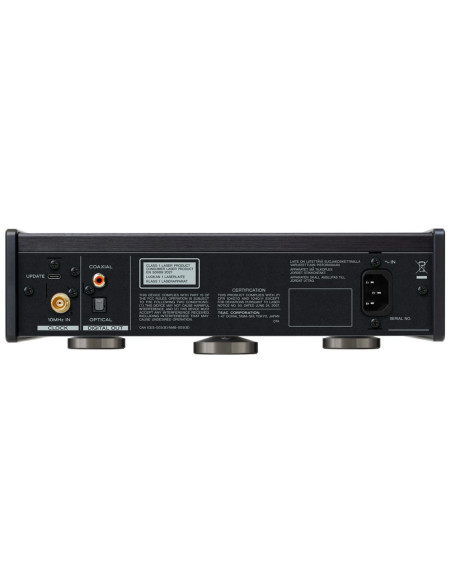

• Digital audio outputs
• COAXIAL
• Connector RCA (gold-plated) × 1
• Output level 0.5Vp-p
• Output impedance 75Ω
• OPTICAL
• Connector TOS (JEITA RC5720C) × 1

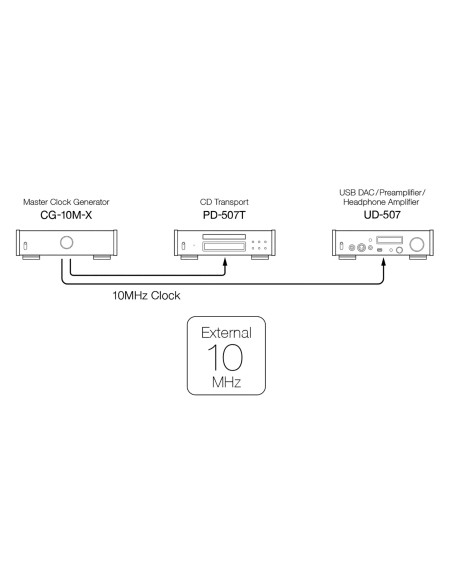

• Clock sync input
• Connector BNC (gold-plate) × 1
• Input frequency 10MHz
• Input impedance 50Ω
• Input level
• Rectangle wave Equivalent to TTL level
• Sine wave 0.5 to 1.0Vrms
• External control
• Trigger IN
• Connector 3.5mm Monaural mini jack × 1
• Input signal DC 12V, 1mA
• Trigger OUT (THRU)
• Connector 3.5mm Monaural mini jack × 1
• Power AC120V, 60Hz
• AC220-240V, 50/60Hz
• Power consumption 4W
• Standby power 0.3W
• Overall dimensions (W×H×D) 290 × 84.5 × 248.8mm / 11½” × 3 ⅜” × 9 ⅞”(including protrusions)
• Weight 4.0kg / 8.8 lbs

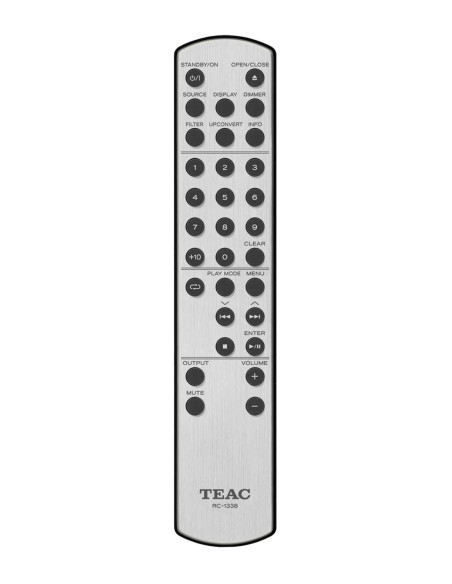

• Included accessories AC cord, Remote control (RC-1338), AAA batteries × 2, Foot pads × 3, Owner's Manual
